Specifications
micro Vickers hardnessthe aircraft used LCD display screen
directly on display
One year warranty
CE, ISO
Instrument Specifications
Vickers hardness tester
1. large screen LCD display
2. Simple to test
3. High accuracy
4. LCD display screen
with large screen LCD display, use the menu interface type structure, can be in operation panel choose hardness HV or rod HK,
Main Features:

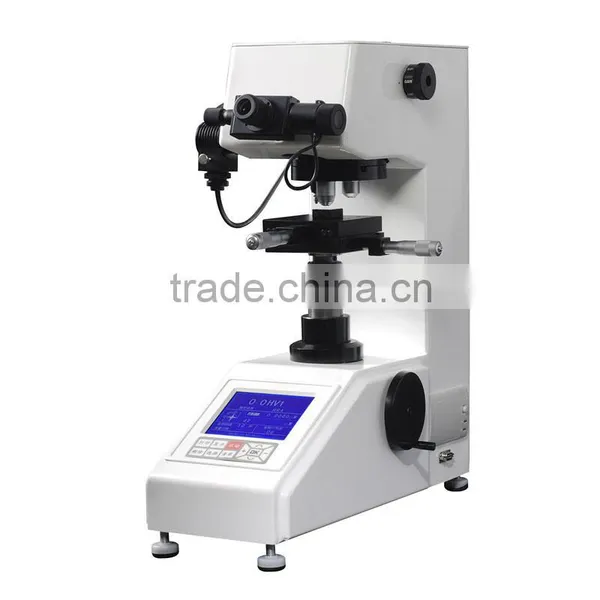

Model CHV-1D Digital Micro Vickers hardness tester with large screen LCD display, use the menu interface type structure, can be in operation panel choose hardness HV or rod HK, test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion, and the testing result is automatic storage, processing, printing with RS-232 interface, and computer online. This machine is digital, high degree of automation. Hardness value error can be modified through softwaret, hardness value more accurate meets the requirement.

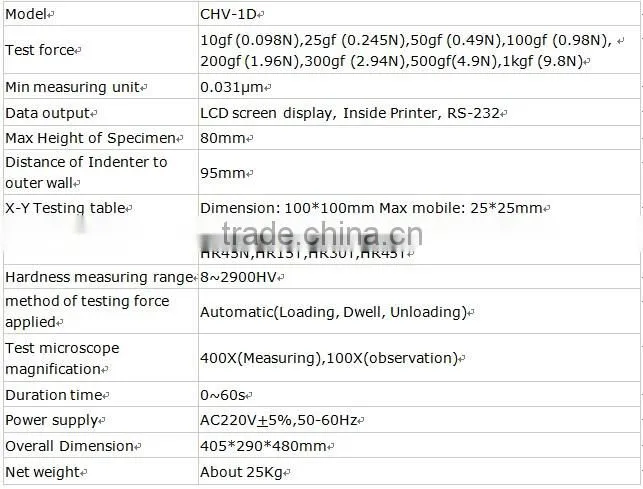

Technical Specifications:
Note:
Special accessories: special accessories according to user needs rationing custom, the price is another plan.
1. Knoop indenter: can measuring some high hardness materials.
2, Provide 16 X micro-distance measuring eyepiece, total magnification for 640 * and * 40.
3, Provide 6.8 inch LCD screen can be equipped with, have tested indentation in the display on the screen and the measurement.
4. Provide equipped with image acquisition device, will impress clearly shown on a computer screen for automatic or manual measurement.
with large screen LCD display, use the menu interface type structure, can be in operation panel choose hardness HV or rod HK,
