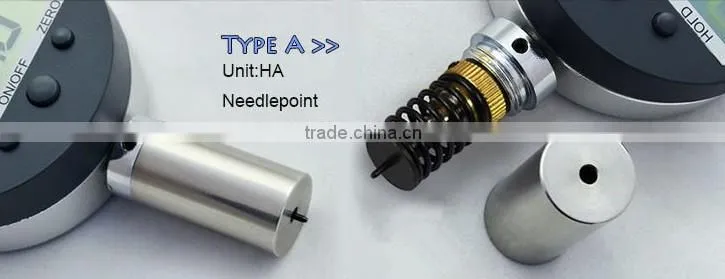

Help CenterDigital Shore Hardness Tester AST100 Improve Series Type A for Soft Rubber
Related Products
-
CE Certified, Roughness Gauge ART100 With 4 Parameters Ra,Rz,Rq,RtUS$ 670 - 750MOQ: 1 Piece -
CE Certified, Thermal Imager ALT400 With 160x120 Resolution With Touch ScreenUS$ 3,700 - 4,280MOQ: 1 Piece
-
CE Certified, Thermal Imager ALT800 With 384x1288 Resolution Touch ScreenUS$ 4,600 - 4,980MOQ: 1 Piece
-
CE Certified, Thermal Imager ALT700 With 384x288 ResolutionUS$ 3,700 - 4,380MOQ: 1 Piece
-
CE Certified, Thermal Imager ALT300 With 160x120 ResolutionUS$ 1,700 - 1,850MOQ: 1 Piece
Specifications
shore hardness tester;Electronic digital indicator, convenient reading and accurate measuringHand-held design, portable&endur
Instruction

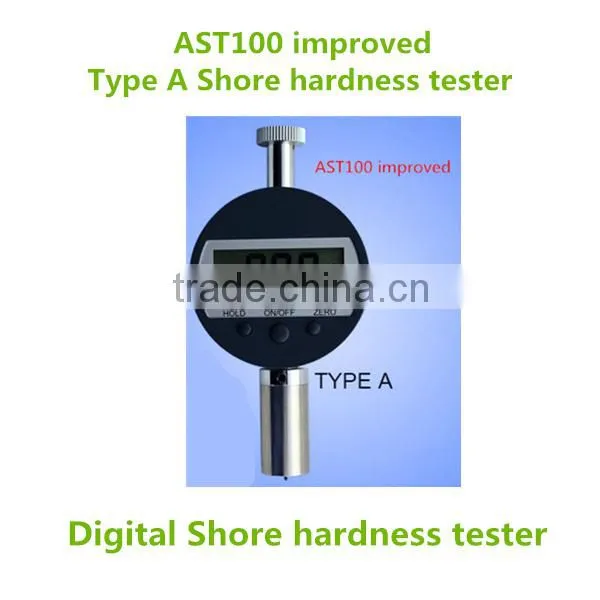

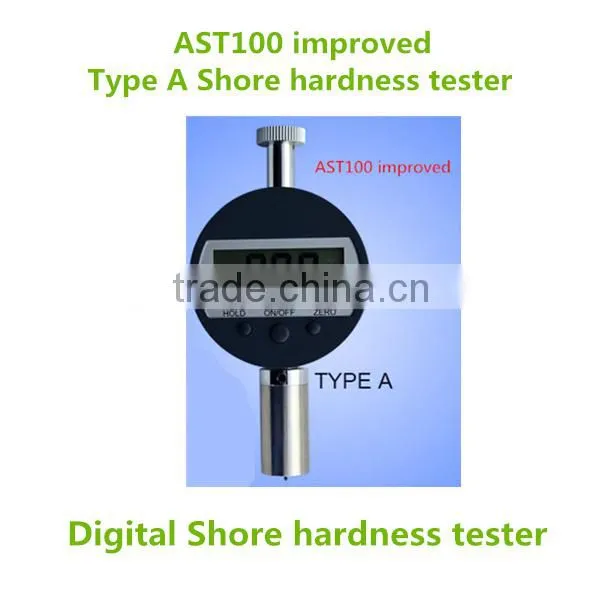

Digital shore hardness tester is mainly used to measure the hardness of vulcanized rubber and plastic products, there are A, C, D three types.

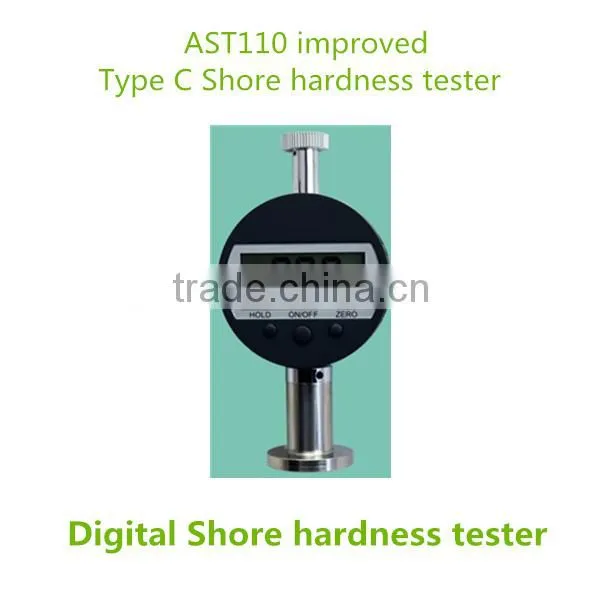

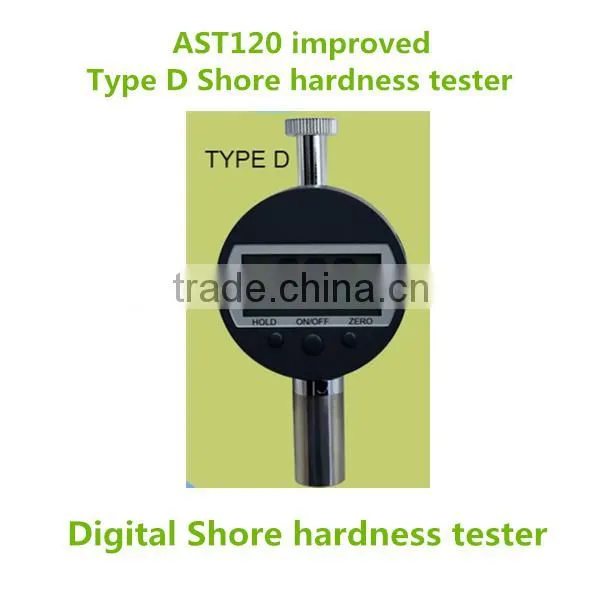

Type A and D are respectively suitable to measure the hardness of low, medium hardness and high hardness rubber. Type C is suitable to measure the hardness of cellular rubber and plastic material usually with the compression ratio 50% , the pressure more than 0.049MPa.
The product confirms to the standards of GB/T531, GB2411, HG/T2489, JB6148
Main Parameters .
1) Measuring range : 0- 100 degree
2)Measuring error : 20-90 degrees , error ≤ ± 1 degree
3)Resolution: 0.1 degree

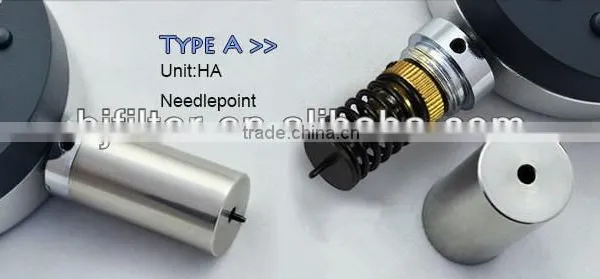

4)Indenter tip stroke : 0-2 .5 mm
5)Indenter tip pressure : A, C type: 0.55-8.05N; D type: 0-44.5N
More Information

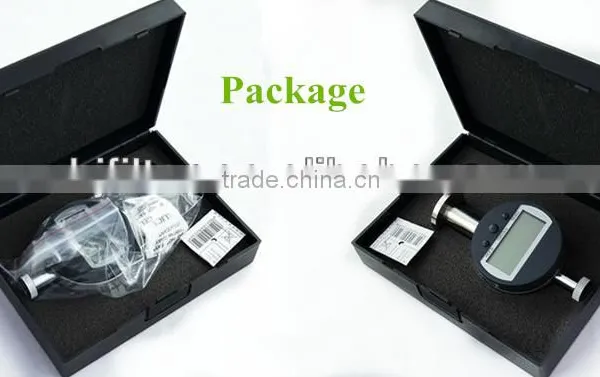

For small testers, we use the plastic package with Carton.
For big machines, we often use the Standard Export Wooden Case.
Transportation :
Delivered by DHL,TNT,UPS,EMS,FEDEX or by AIR or by SEA
Guarantee period :1 year
FAQ:
1. Are you manufacturer or trader?
We are the manufacturer. we have our own factory in Beijing,Shanghai. Our factory has established more than 20 years till now, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation.We can offer the professional service for you.
2. Do you sell the accessories for testing equipment?
Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.
3. How about the packing for testing equipment? Is it damaged during transportation?
For small testers, we use the plastic package with Carton.
For big machines, we often use the Standard Export Wooden Case.
Don’t worry, it won’t damage during transportation.
4. What’s your main product?
We are the professional producer of NDT instruments, Hardness tester, Ultrasonic thickness gauge, Ultrasonic Flaw Detector, Vibration tester ,Roughness tester, Coating thickness gauge, Gas detector, Industry Endoscope ,Thermal camera and also universal testing machine, pipe testers, etc.
5. Where is your main sales market?
Our testing equipment exported to Europe such as in Germany,France, Italy,Spain and Asia, South America many countries, now we have many old customers from all over the world.
