industrial water treatment equipment filter/beer filter
- 2000 Meter / Meters per Month
- xingang/shanghai/qingdao
- T/T D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Beijing, China | Brand Name: | BJF FILTER | Model Number: | filter screen pipe |
Usage: | Liquid Filter | Type: | Other, Filter Cylinder, Welded | Material: | Other, steel |
Hole Shape: | Round | Filter Rating: | 27%-56% | Thickness: | 0.15mm-0.3mm |
Length: | 1-6.0m | Width: | 30-600mm |
Product Description

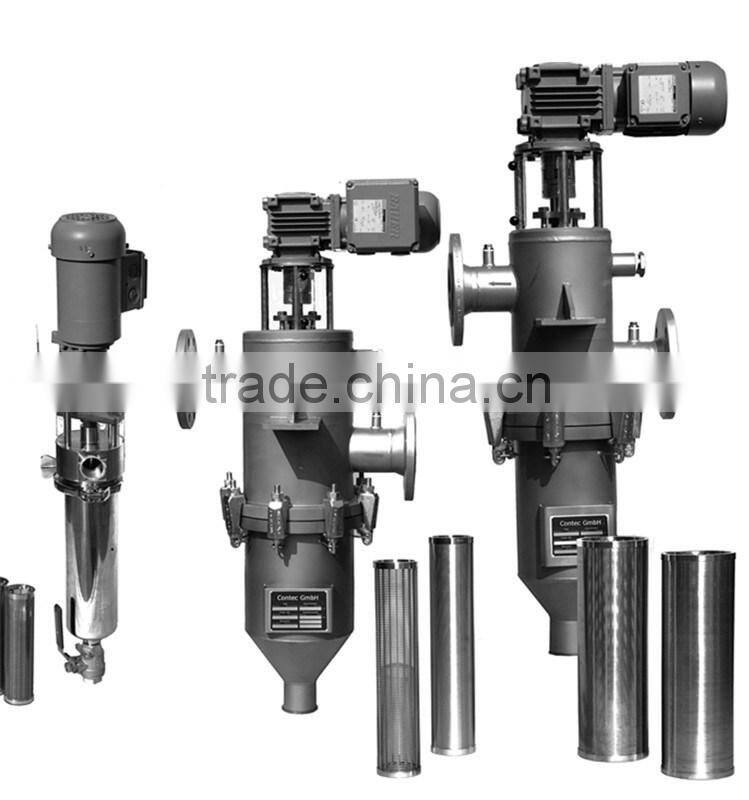

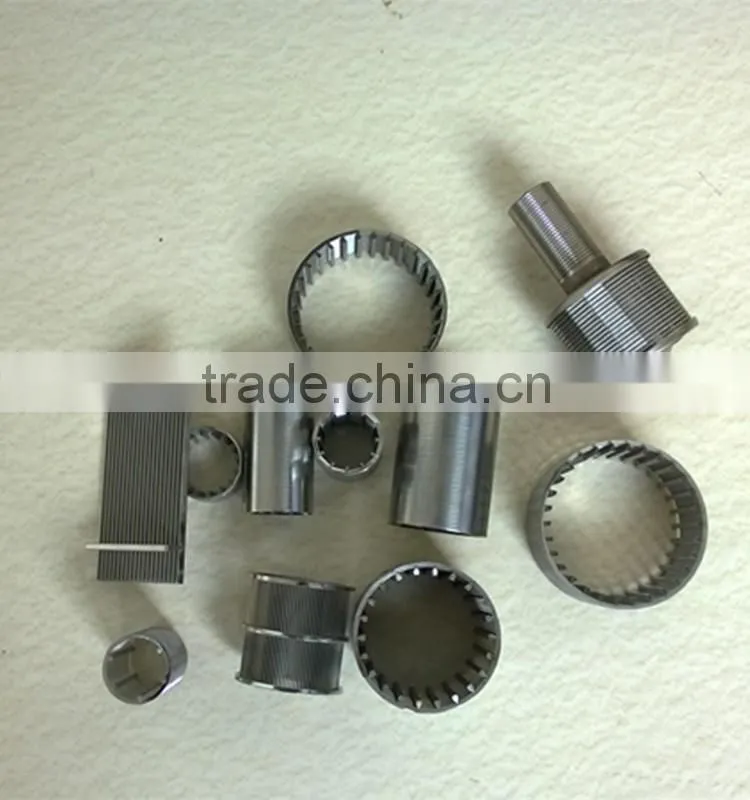

industrial water treatment equipment filter/beer filter
Specification of industrial water treatment equipment filter/beer filter

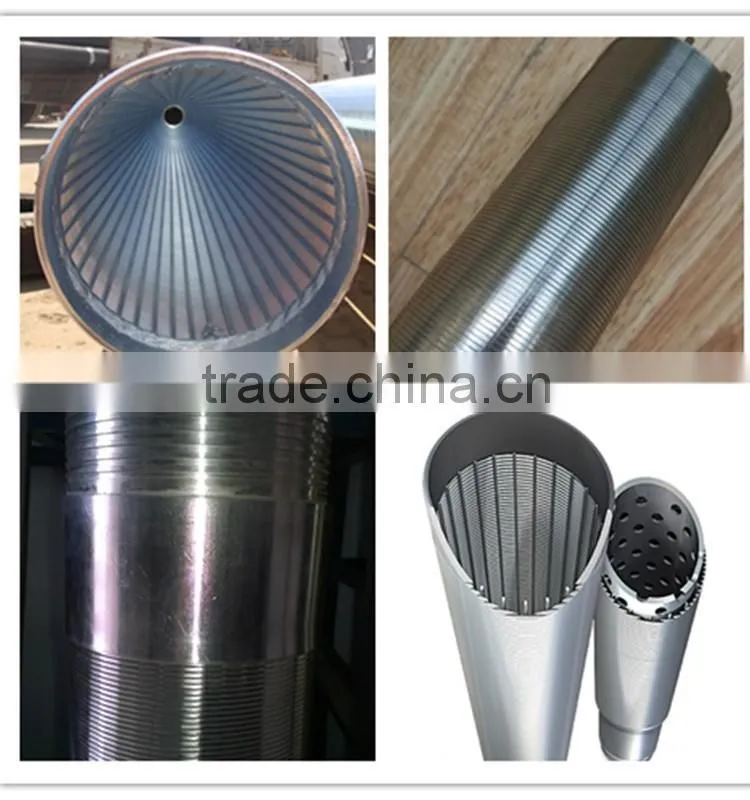

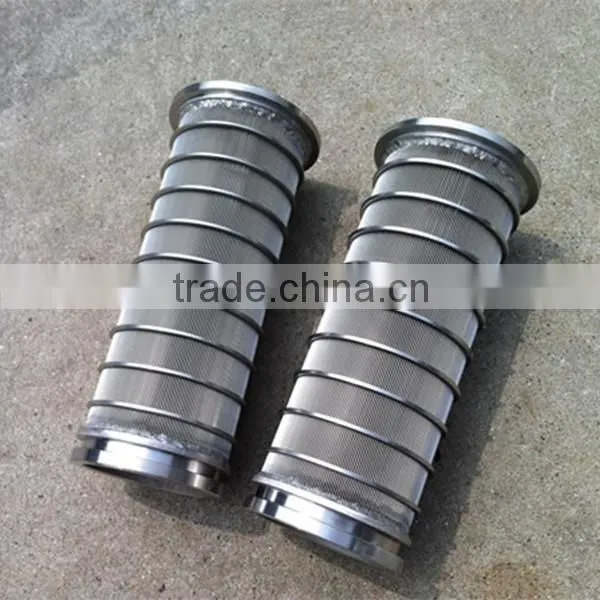

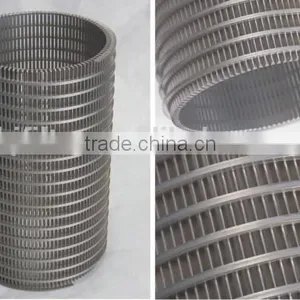

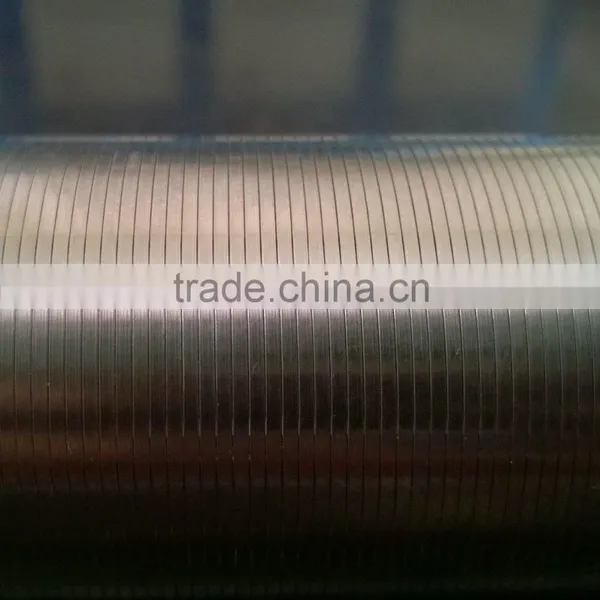

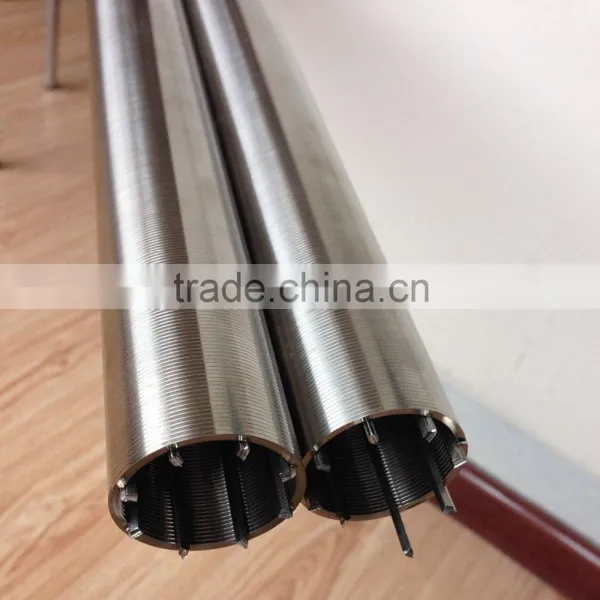

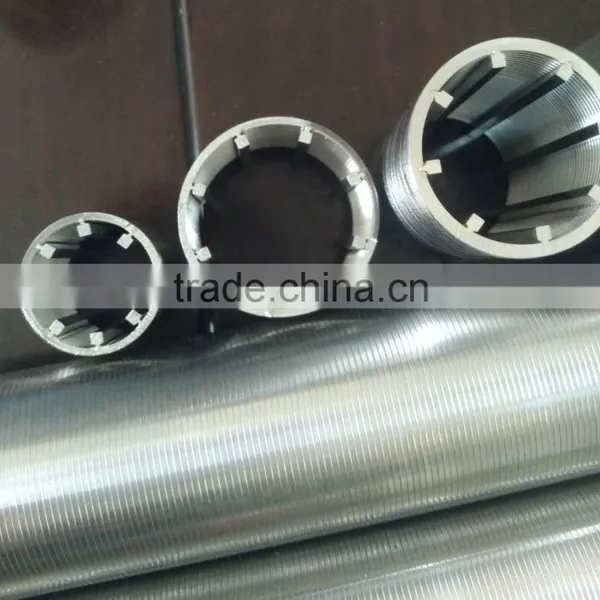

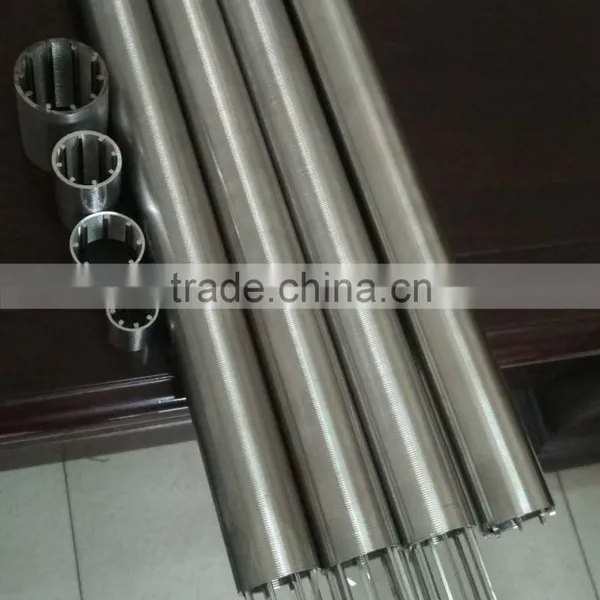

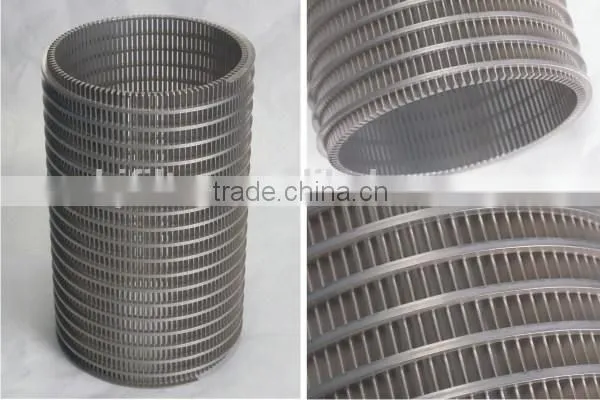

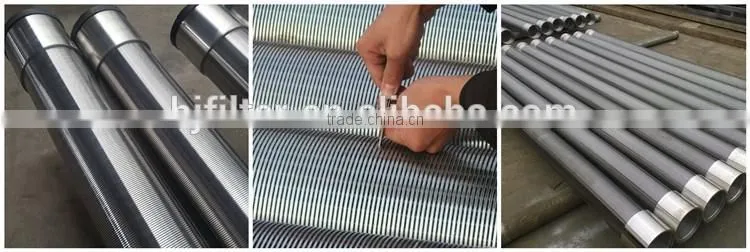

v wedge wire wrapped well screen is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding. It is used in water well, oil well, gas wells and for environmental well completions.
Material:
generally of stainless steel 304, 304L,316, 316L, 321 etc. We also produce special material according to the customer request.
Characteristics:
1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits
Technical parameter:
1) wire size: 0.75×1.5mm, 1×2mm, 2X3mm, 2.3×3mm, 3×5mm
2) Slot width: 0.5mm,1.0mm,
3) screen diameter: 25mm, 33mm, 37mm, 40mm, 60mm, 177mm,219mm,273mm,323mm
4) screen length: 5.8m,11.9m.

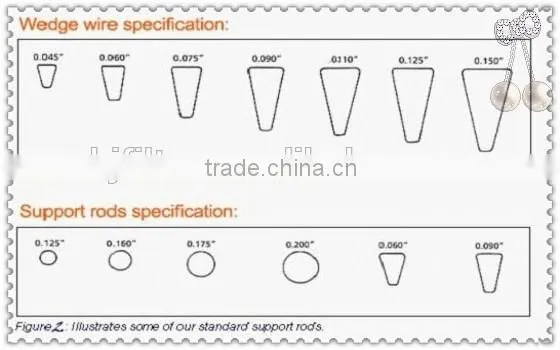

Specification (wedge wire): | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Heigh(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Specification (support rod): | Width(mm): 2.30 3.00 3.30 3.70 Heigh(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
Note: other specifications available as per request | |
Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length | up to 6 meters. |
Diameter | from 25mm to 1200mm. |

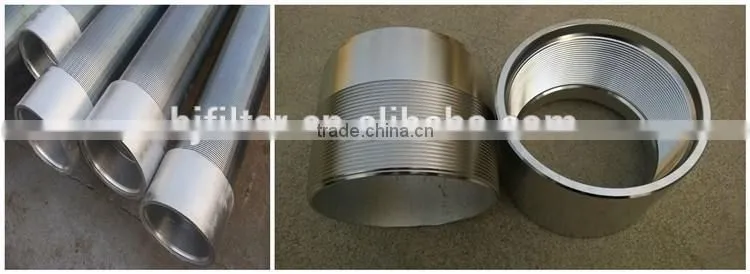

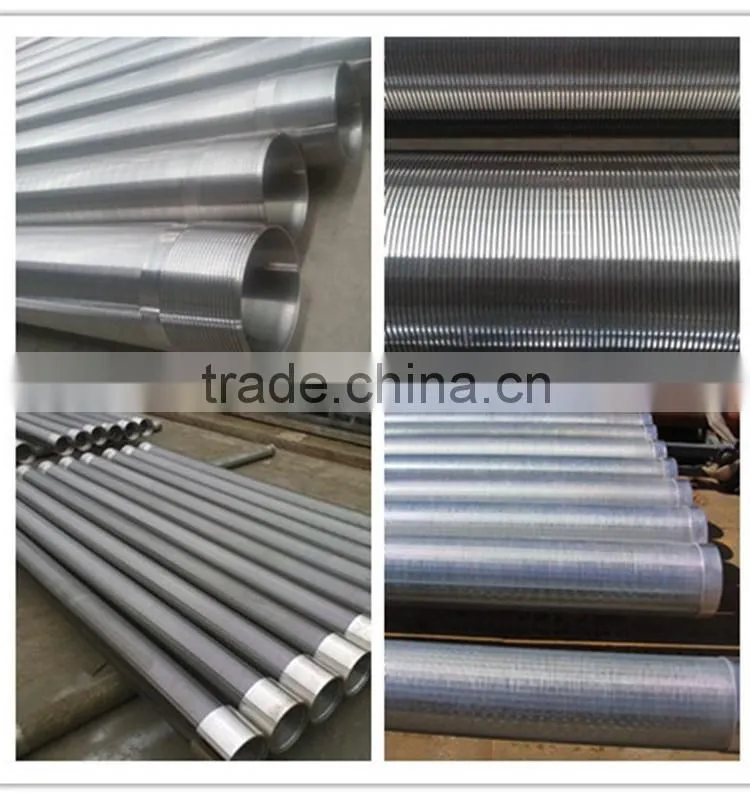

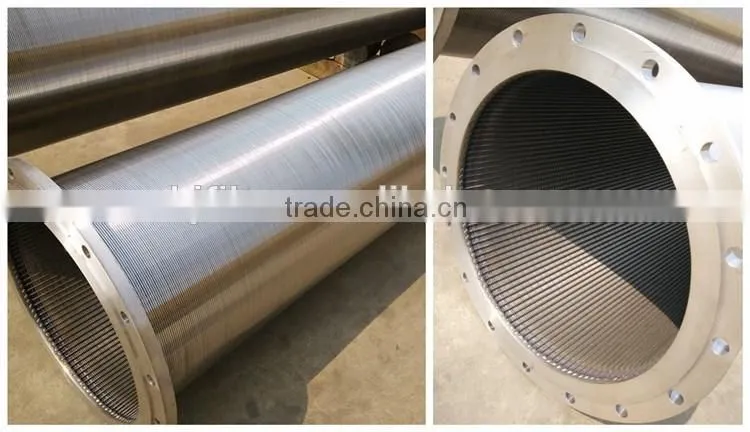

End connection | Plain beveled ends, flanged or threaded couplings |
End connection:
Threaded couplings
Flanged
Application of industrial water treatment equipment filter/beer filter

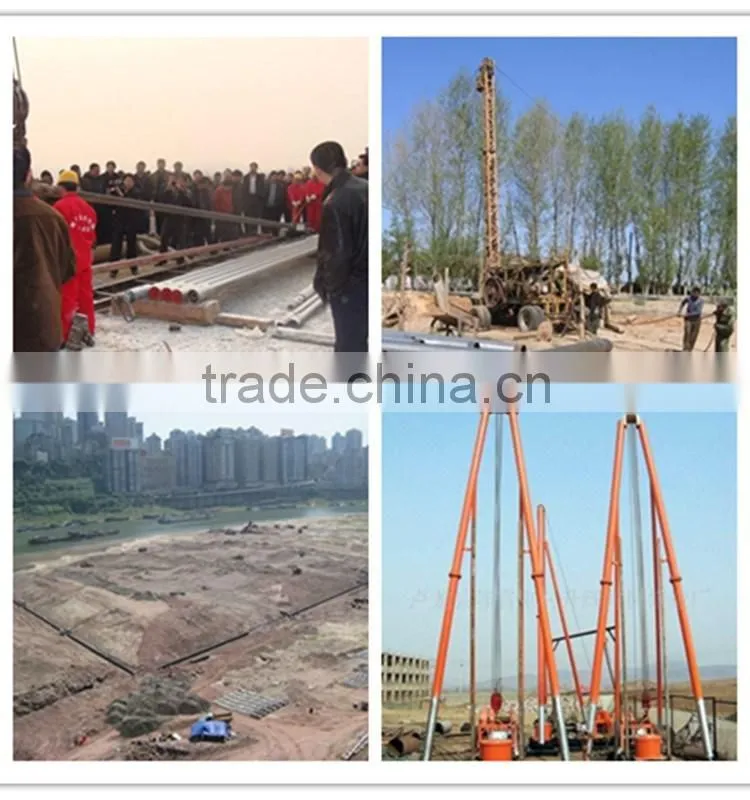

For oil well gas well sand control

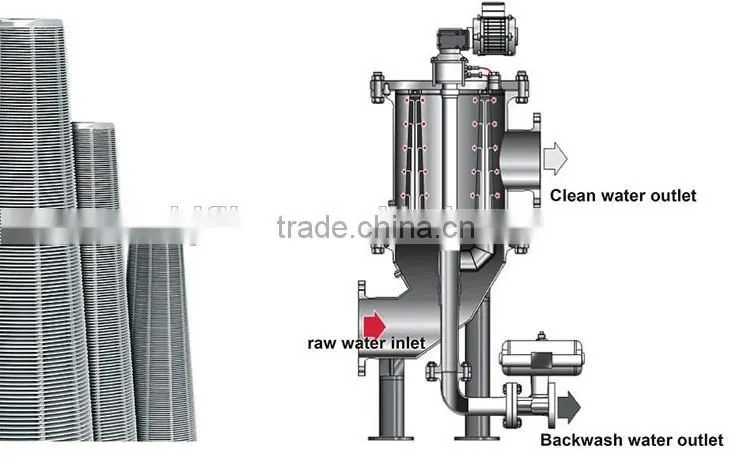

For industrial equipment wedge wire water filter
Industrial equipment wedge wire water filter are widely used in petroleum, paper, chemical, gas, food, sugar, starch, beer, wells sand and other industries, its position in the beer filtration industry particularly prominent in a variety of solid-liquid liquid resources separation process filtration screen type most widely used one.
Products using a full program of welding process to ensure continuity of strict product to form a uniform gap size, compared to the current welding technology used in ordinary domestic, our screens either from surface smoothness, slit uniformity, product quality the degree it is a considerable advantage, thus ensuring the user to use more high quality and efficient!

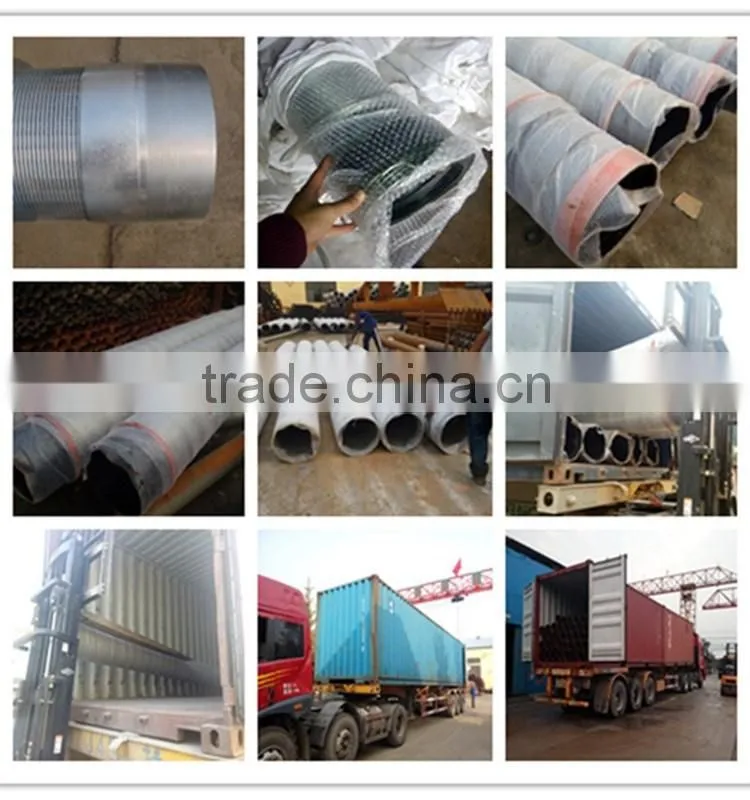

Packaging :
They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
As a professional import-export company, Beijing Filter Trade Company Limited (BJF) is ratified by Bureau of Commerce of Beijing and registered at Customs of China in 2010.
Established in Beijing, BJF takes the advantage of geography and commercial resource from this capital city. Based on domestic and international market, focusing on high technologies and import-export trade, BJF has expanded business into resources, industrial material, mechanical equipment and accessories, etc. and has become a reliable supplier of filter series, pipes and screens, industrial accessories for petroleum industry, chemical industry, refining, water well and water treatment over 40 countries and regions including Southeast Asia, Mongolia, Russia, Kazakhstan, Afghanistan, U.A.E, Saudi Arabia, Egypt, Algeria, Sudan, Brazil, Argentina, Canada,Tunis,USA,Phlippines,PNG,Turkmanstan,India etc.
1. Any inquires will be replied within 24 hours.
2. Samples production and delivery service can be provided.
3. OEM/ODM is available.
Printing logo on customized products;
Customized design and material;
Customized packing for your request .
4. All products have been strictly quality test in our factory.
Any questions please feel free to contact us
MOQ | 10 pieces/60meters |
FOB price(USD) | 15-150/m |
Port | xingang/shanghai/qingdao |
payment | L/C , T/T |
Delivery | 10 work days or less |
packing | standard export packages |
