Help CenterWegde Wire Screen Welding Machine/Johnson Type Screen Welding Machine
Related Products
-
Johnson Screen Machine Wedge Wire Screen Pipe Welding EquipmentUS$ 10,000 - 30,000MOQ: 1 Set -
Johnson Screen Welding MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Mine Sieve Bend Wedge Wire Screen Welding MachineryUS$ 10,000 - 30,000MOQ: 1 Set
-
HOT Wedged Wire Screen Mesh Welding Machine AutomaticallyUS$ 10,000 - 30,000MOQ: 1 Set
-
OEM Wedged Wire Screen Filter Welding MachineUS$ 10,000 - 30,000MOQ: 1 Set
The CNC sieving mesh welding machine is intended for manufacturing of wedged wire screens in length up to max. 4000/6000mm. The strength, precision and design flexibility that characterize our screens makes them the choice in a broad range of industries and applications. It made up of CNC mainframe, welding transformer, control cabinet and so on.

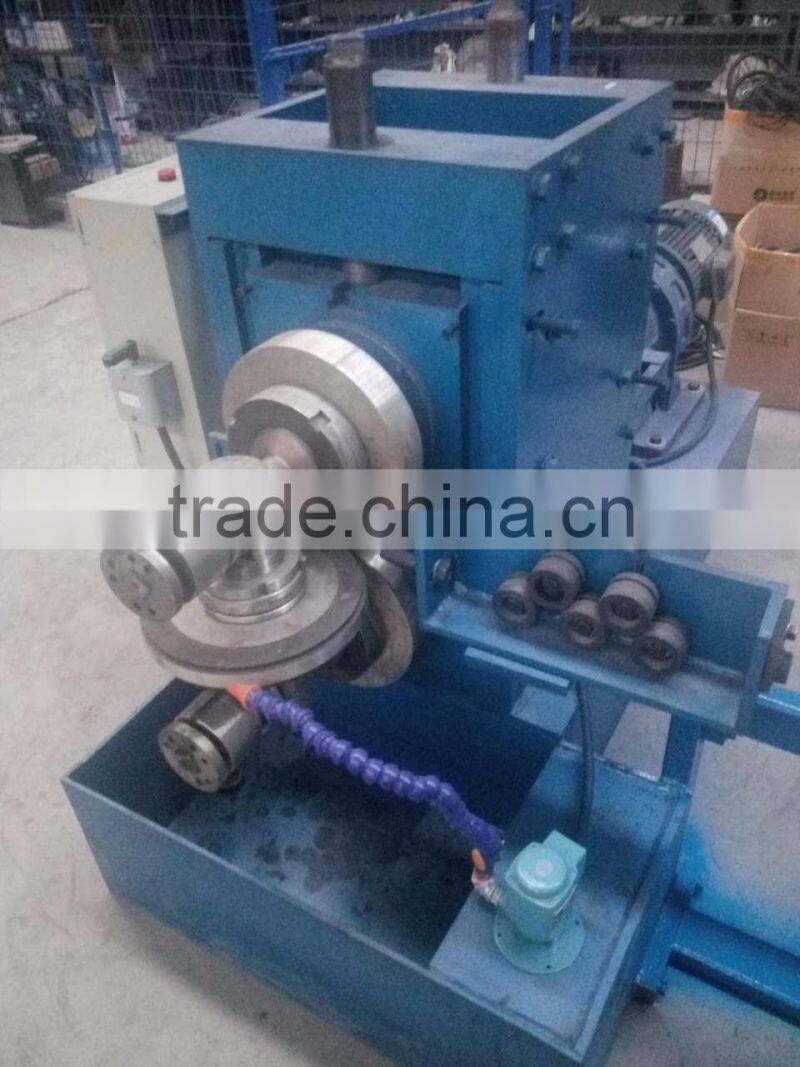

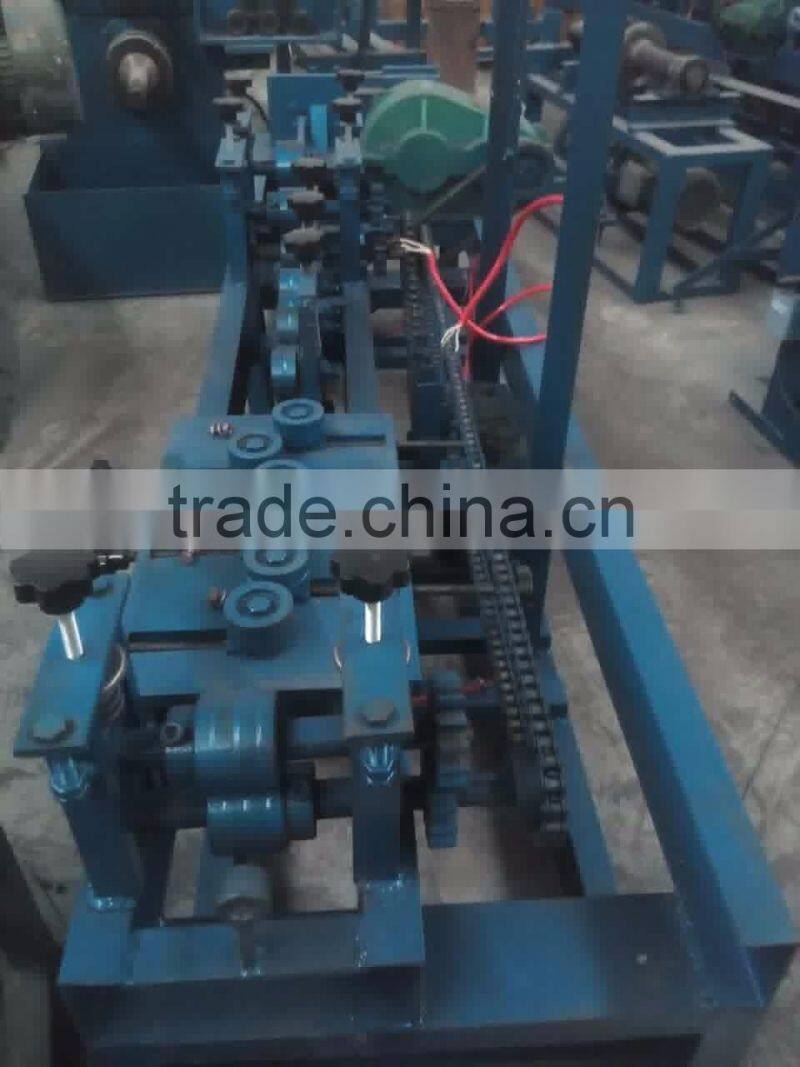

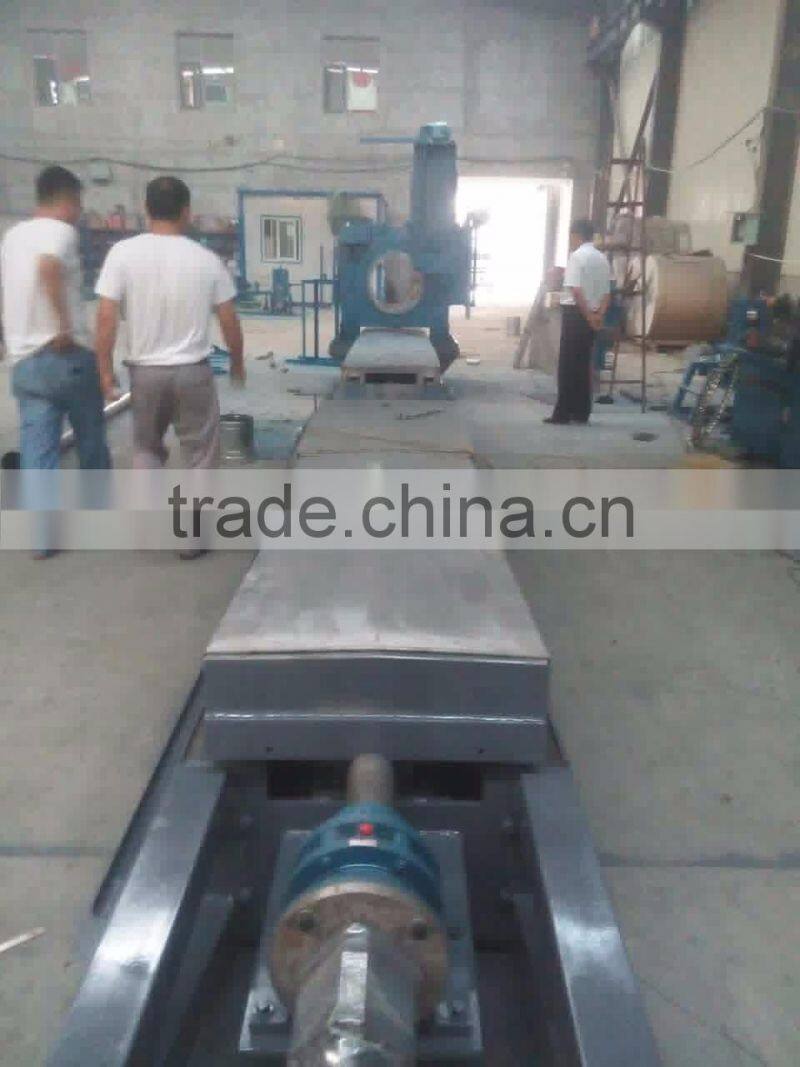

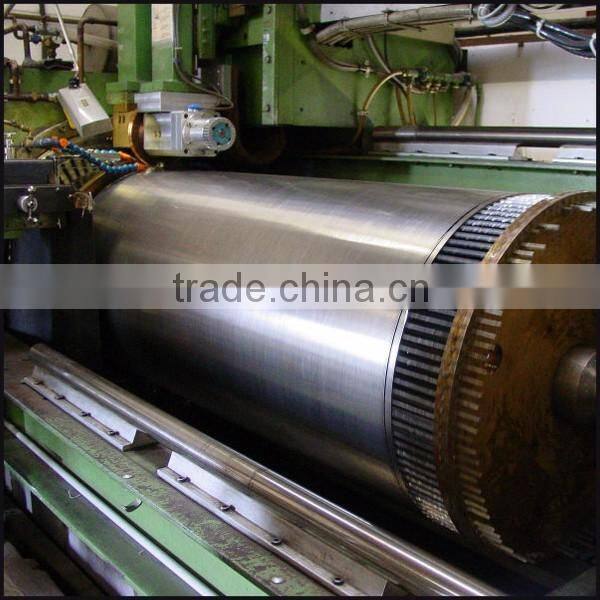

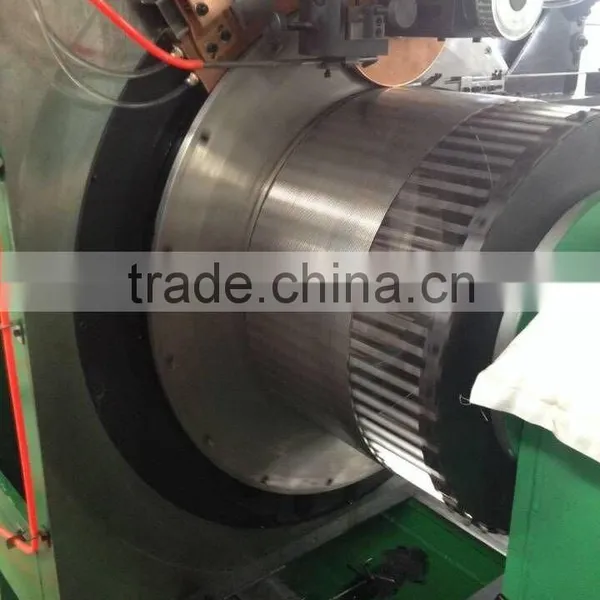

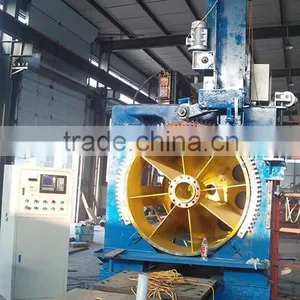

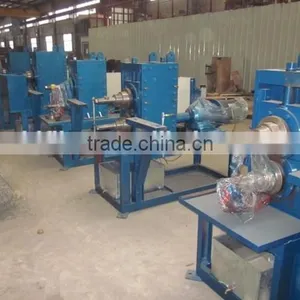

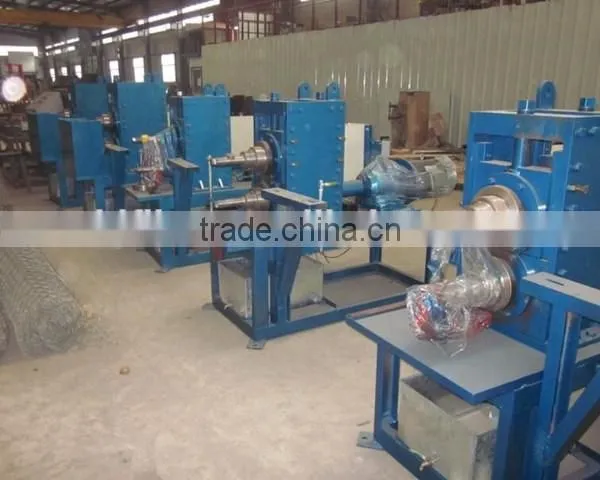

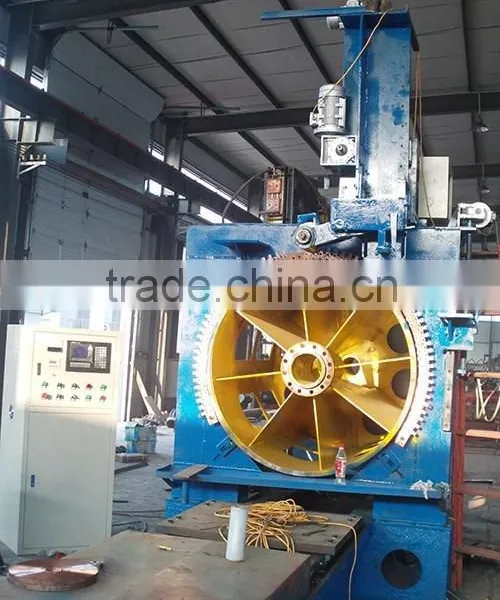

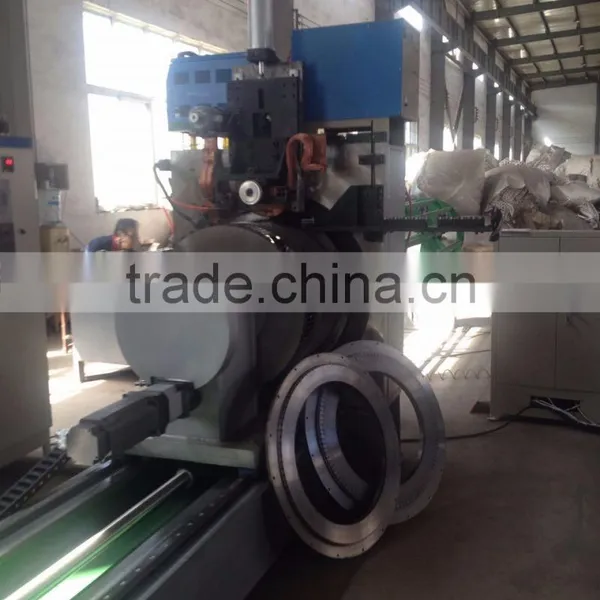

Images of Wegde wire screen welding machine/Johnson Type Screen Welding Machine
Spec of Wegde wire screen welding machine/Johnson Type Screen Welding Machine
Model |
φ50-200mm |
φ100-400mm |
φ400-1200mm |
Power |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
Rated Capacity |
100 KVA |
100 KVA |
100 KVA |
Slot Distance |
≥0.1mm |
≥0.2mm |
≥0.25mm |
Canister Length |
≤6000mm |
≤6000mm |
≤4000mm |
Weld Material |
Stainless Steel Wire & Low Carbon Steel Wire |
||
V-wire Size |
1.8-5.0mm |
1.8-5.0mm |
1.8-5.0mm |
Support Rod Size |
1.8-5.0mm |
1.8-5.0mm |
1.8-5.0mm |
Overall Dimension |
13000*1500*3300mm |
13000*1600*3400mm |
11000*2100*3800mm |
Weight |
10000KGS |
11000KGS |
13000KGS |
Get more datas, please contact our staff directly. see the below name card
Contact Lynn to get more professional info & help
