stainless steel 304 wedge wire welding slot tube filter pipe
- 20000 Meter / Meters per Month
- Tianjin Xingang Shanghai etc
- T/T D/P D/A Credit Card
Product Details
Place of Origin: | Henan, China | Brand Name: | HUADONG | Model Number: | hdlt |
Usage: | Other, Liquid Filter, separating, filtering, dewatering, water intake, centrifuges, etc | Type: | Other, Filter Cylinder, stainless steel 304 wedge wire welding slot tube filter pipe | Material: | Other, stainless steel, Stainless Steel 201/304/316 |
Hole Shape: | Round | Filter Rating: | as per specification | Thickness: | as per clients' request |
Length: | Requirement, OEM support, upon request | Width: | Cunstomized |
Product Description
welded wedge wire candle filters are ideal for removing particles of very small size up to 10 microns. These filters can be easily washed through a back flush of the steam. We also provide options for different attachments to meet the specific process requirements of the clients.

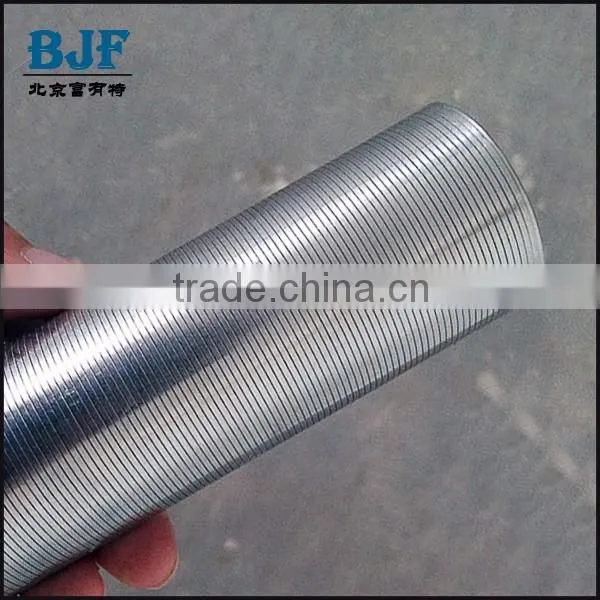

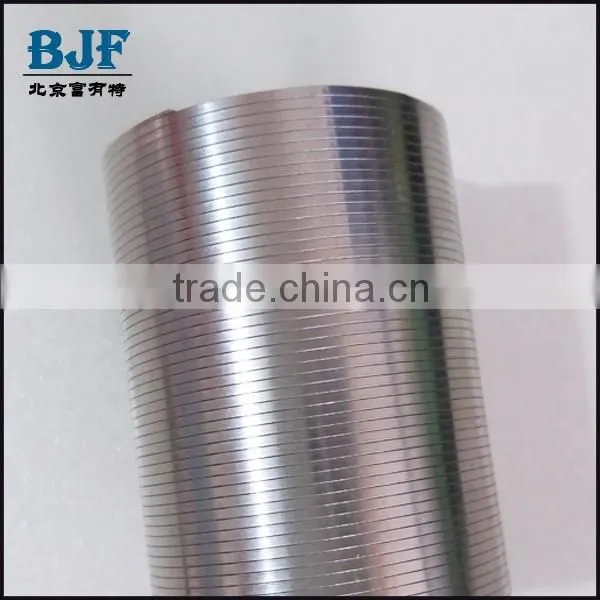

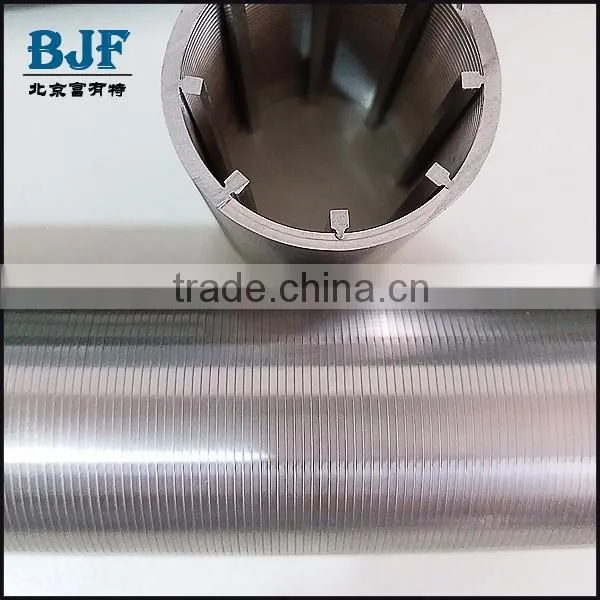

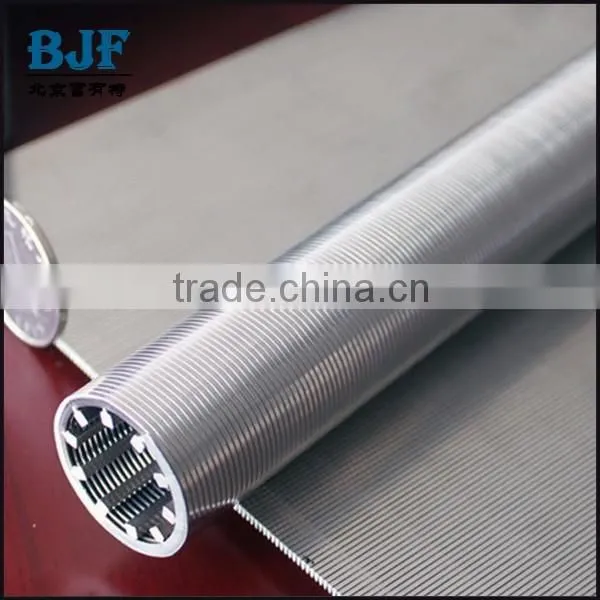

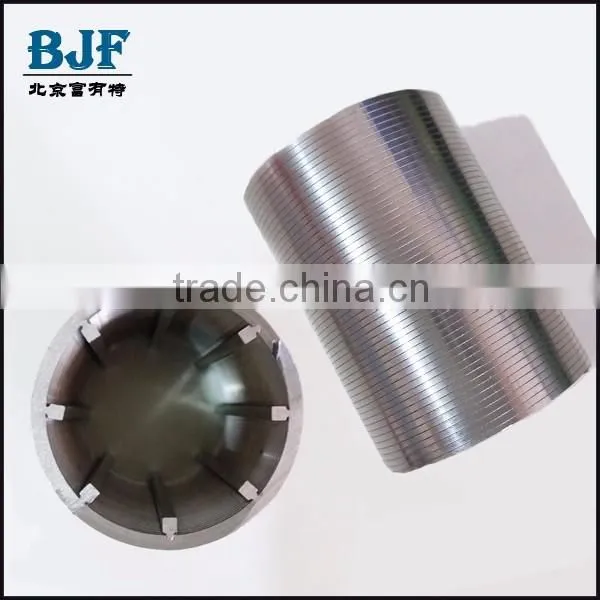

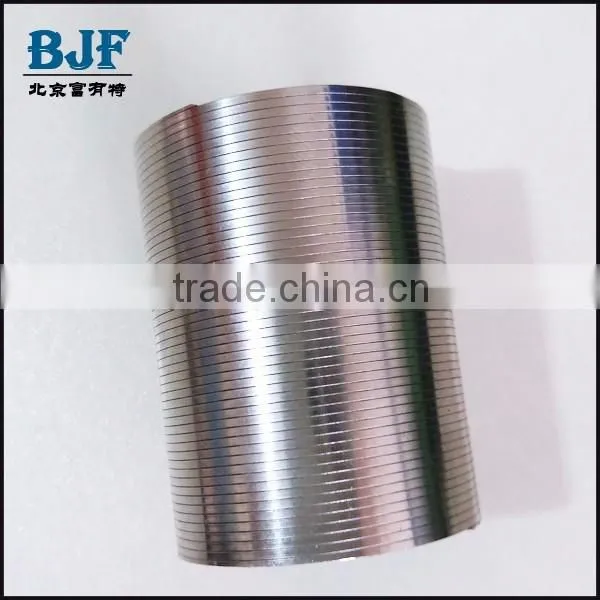

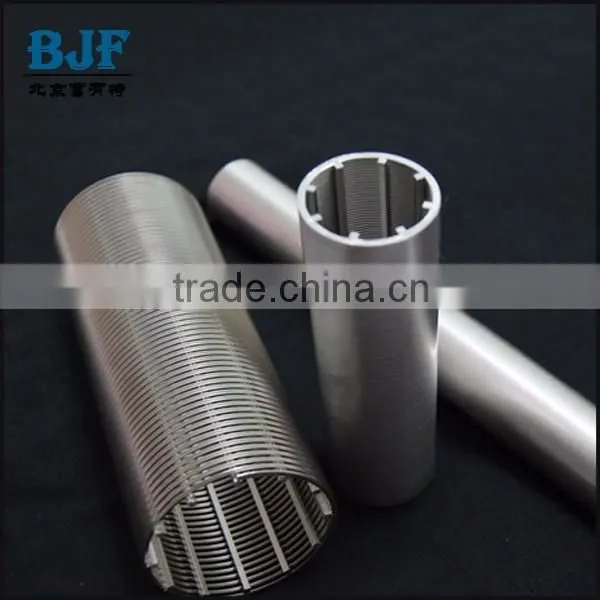

Images of stainless steel 304 wedge wire welding slot tube filter pipe
Advantages of micron wedge wire screen
a. Clean and hygienic operation
b. Highest level safety for operator and process
c. Eco-friendly operation
d. Stand alone equipment
e.Backwashing facility
f. Permanent candles
g. Steam back-washable
Specification of stainless steel 304 wedge wire welding slot tube filter pipe
Wedge Wire | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Support Rod | Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
Note: other specifications available as per request | |
Slot Size | 0.015, 0.020, ...0.10, 0.15, 0.20, 0.25, 0.30...6.00mm also achieved upon request. |
Material | galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length | up to 6 meters. |
Diameter | from 20mm to 1200mm. |
End Connection | Plain beveled ends, flanged or threaded couplings |
OEM support, welcome to your drawings / specifications
Contact Lynn to get more professional info & help
