PU Sandwich Panels
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | Baoye | |
| Model Number | PU Sandwich Panel | Panel Material | Metal | |
| Type | Polyurethane Sandwich Panels |
Product Description

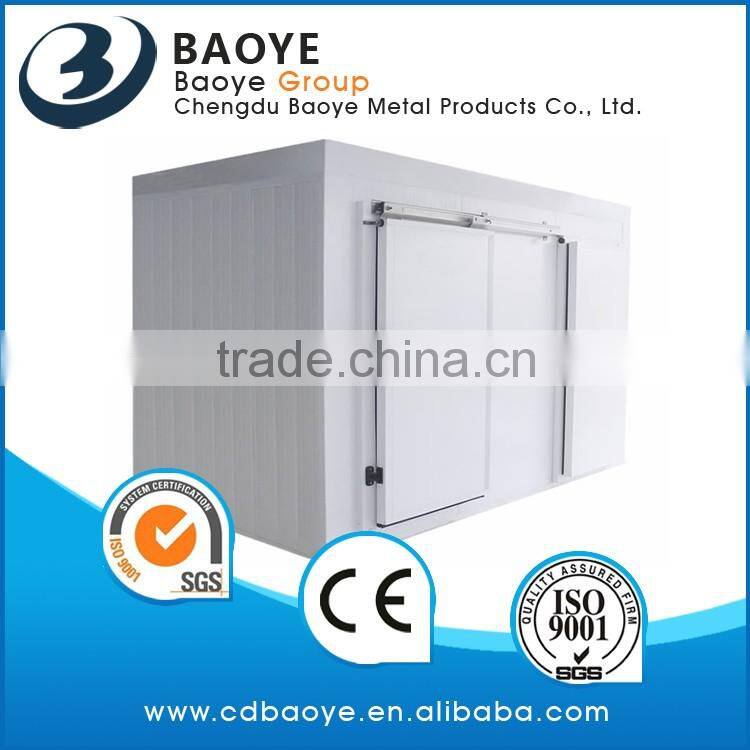

PU sandwich panel house
Main Applications:
Hotels, hospitals, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, agricultural product processing,
dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics
storage, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, communication equipment
Basic Structure
Panels are joined together by means of tongue and groove and locked together by camlock on each side of the panel to ensure air tight joints.
* Cam-lock design fastener to install cold room tightly and strongly
* Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result

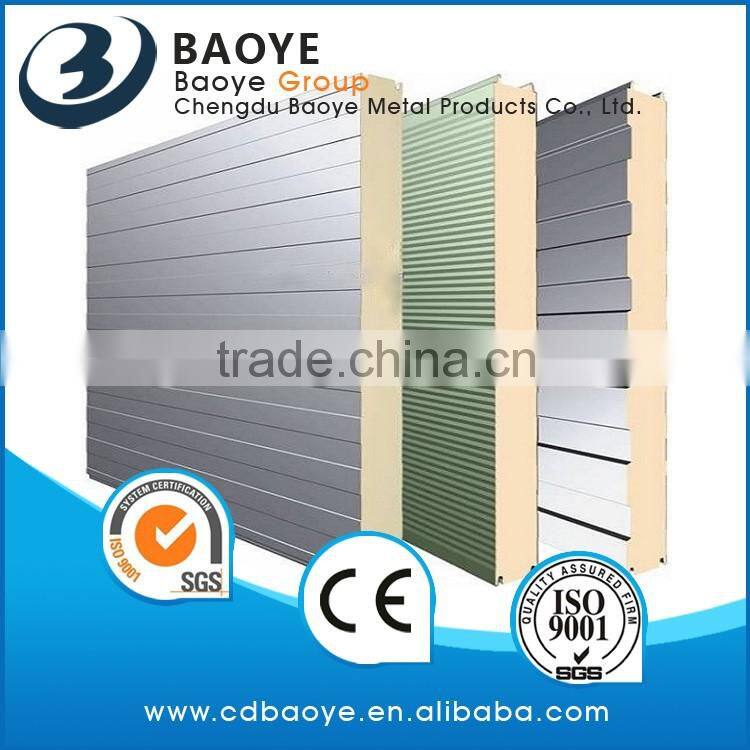

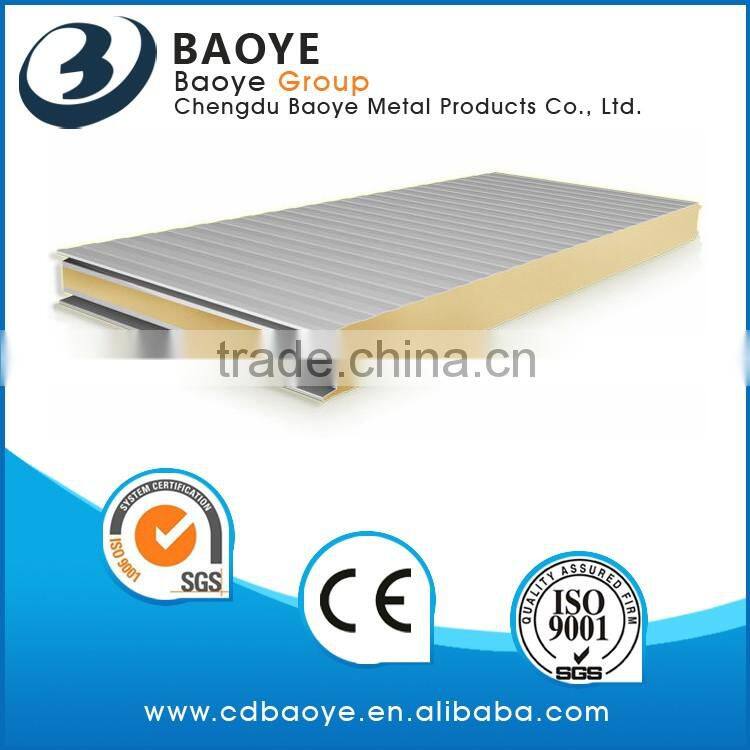

950 wall sandwich panel | ||
Type | PU sandwich panel (self-insert connection) All the screw and accessories are available | |
Dimensions | Total thickness | 50,75,100,150,200mm |
Width | 950mm ,1150mm | |
Length | Less than 11.8m | |
External face | Material | Galvanized |
Thickness | 0.15-0.8mm | |
Thickness of the zinc | 40Kg/m3 | |
Corrosion protection | Galvanized | |
Coating | Polyester | |
Thickness of coating | 20 micron | |
Color | According to the RAL | |
Pattern | Nearly Plain | |
Insulation | Material | PU |
Thickness | 50,75,100,150,200mm | |
Density | 6-24kg/m3 | |
Thermal conductivity | 0.02~0.03w/mk | |
Internal face | Material | ppgi |
thickness | 0..15-0.8mm | |
Thickness of zinc | 80g/m2 | |
Corrosion protection | Galvanized | |
Coating | Polyester | |
Thickness of coating | 7micron | |
Pattern | Plain | |
Shipping terms | ||
Package | Craft paper or wooded pallet | |
Delivery time | Within 5-10 days after your prepaid | |
Payment terms | T/T ,L/C at sight | |
