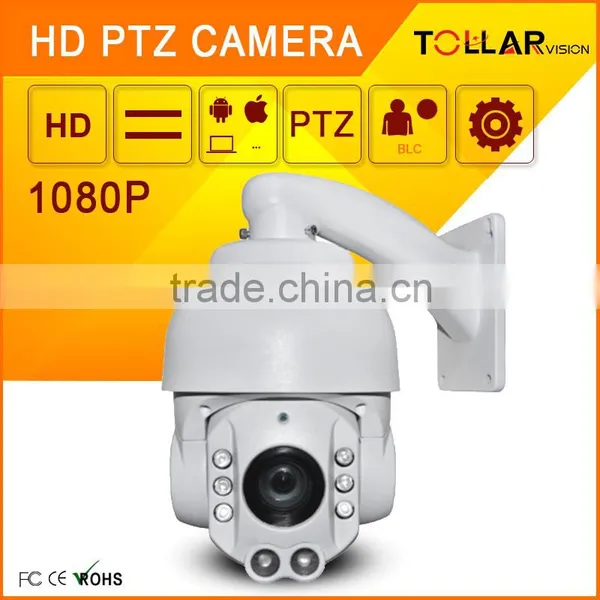

Tollar full HD 1080P 4inch IP hd-sdi CCTV ptz camera
1. 4inch ptz IP camera
2. 1/2.8'' cmos 3516C+222
3. IR distance 80M
4. 8pcs LED light
5. waterproof level IP 66
Picures
Dates
| Image Sensor | 1/2.8'' CMOS 1080 | |
| Effective Pixel | 2.0Mega Pixel (1920*1080) | |
| Signal system | PAL/NTSC | |
| Horizontal Resolution | ≥1000 TV lines | |
| Video Format | 25 fps: 1980*1080; 25fps: 640*480; 25fps: 288*192 | |
| Min. illumination | 0.5 Lux: F1.6(color), 0.09 Lux: 1.6(black & white), IR mode: 0Lux | |
| Optical Zoom | 22X, auto focus | |
| Focus Length | 4.5 ~98mm | |
| Visual Angle | 55.4 degree~2.9 degress | |
| Day & Night mode | Auto IR-CUT | |
| PTZ Parameter | Rotation Speed | Horizontal 0.1~40degress/S, Vertical 0.1-20degress/S |
| Preset Speed | Horizontal 40 degress/S; Vertical 20 degress/S | |
| Rotation Range | Horizontal 0~360 degress unlimited rotation; Vertical 0~90 degress auto 180 degress reversal | |
| A-B two points scan | Random setting | |
| A-B two points scan speed | Fast speed/Middle speed/Low speed, speed adjustable | |
| Cruise No. | 8 groups (8 presets each group) | |
| Presets | 128 | |
| Alarm Input | 1ch | |
| Alarm Output | 1ch | |
| Power Memory | Support | |
| Guard Position | Support | |
| IR light | IR lights No. | F22 x 8pcs IR LED Lights, Effective distance up to 80m |
| Auto Control IR light | Auto IR-cut as per camera’s focus | |
| Video | Video Compression Format | H .264.; MPEG4 |
| Audio | Video Stream | Main Stream: 1080, Sub-stream: D1, CIF |
| Alarm | Image Size | 1920*1080 |
| Audio Baud Rate | 64K bps | |
| Voice Intercom | Support | |
| Alarm | 1ch input, 1ch output(optional) | |
| Network Code | User Management | Max. Support 10 users |
| Network Protocol | TCP/IP,HTTP,DDNS,PPOE,NIP,FTP,RTSP,RTP | |
| Access Protocol | Onvif Standard | |
| Network interface | 1ch 10/100 Base T Ethernet, RJ45 interface | |
| Remote Function | Support remote and remote upgrade | |
| Web Service | Built-in Webserver Support IE | |
| Network Bandwidth | 64 kbps-12Wbps | |
| Spec. | Product Size | 4inch |
| Shell | Aluminum Alloy | |
| Bracket | Aluminum Alloy | |
| power supply | DC12V/5A (American /europe/Britain) | |
| Power | 40W(without heater) / 70W(with heater) | |
| Working Temperature | -25C~70C | |
| Install Method | Wall and Ceiling ( standard is wall ) | |
| Packing | Size | 185*185*245MM |
| Weight | 2.0kg | |
| Size(4pcs for one carton) | 385*385*265MM | |
| Weight(4pcs for one carton) | 9.0kg |
Optional Lens
Connect Way
Netural Hardboard box outside with air pocket for each one,for the box,we can design and print as your requirement.
first,you can take the sample from our aliexpress to order,for the large quantity,you can email or call me online,i'll give you more clear picture and lowest price.
products manufacturing
24 hours online
technical support customised product sourcing
free technical training
2 years product warranty after-sale service
tollar security equipment co.,ltd is one of the fast growing cctv manufactures in china,We are a modernized Hi-tech enterprise that specializes in developing high quality security products,combining both manufacturing and sales.
We deal in all kinds of CCTV cameras such as camera module,different types analog cameras,HD-Analog(CVI,AHD,TVI),IP,PTZ Speed Dome camera,dvr,nvr knit etc cameras,all our products have been certified by CE,FCC,ROHS.
Now our products have been successfully exported to over 100 countries,obtained full OEM/ODM experience,gained huge share of the market and popularity.we have more than 100 skilled workers are able to produce 30,000pcs of high-Quality CCTV camera and more than 100,000pcs chipset monthly.
We wish to serve different levels of organizations and customers in all kinds of sectors and make our best effort to meet clients' satisfaction.
