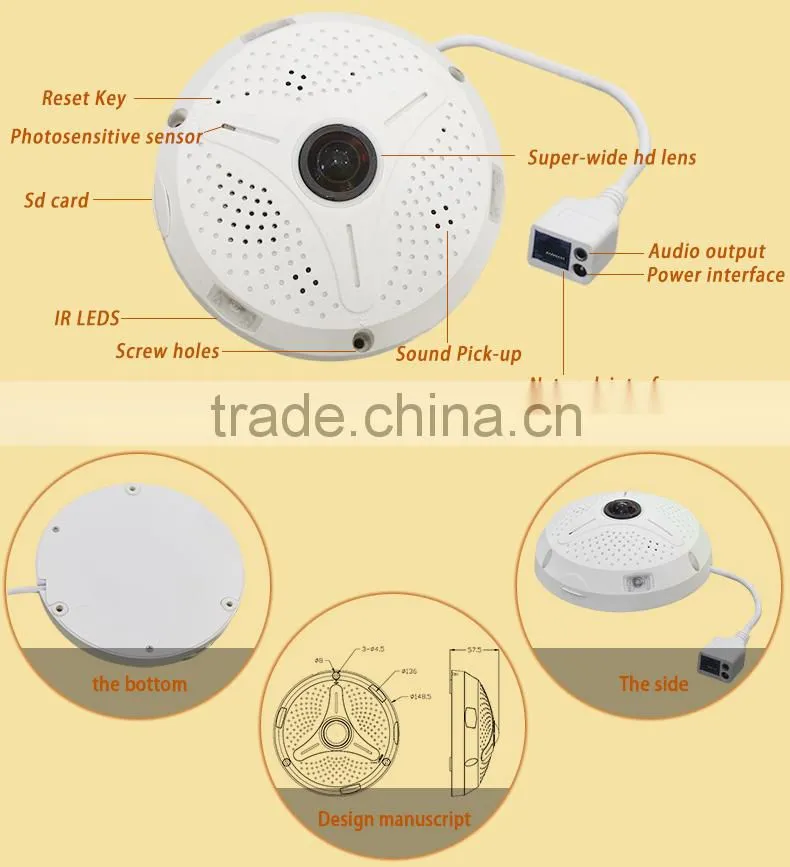

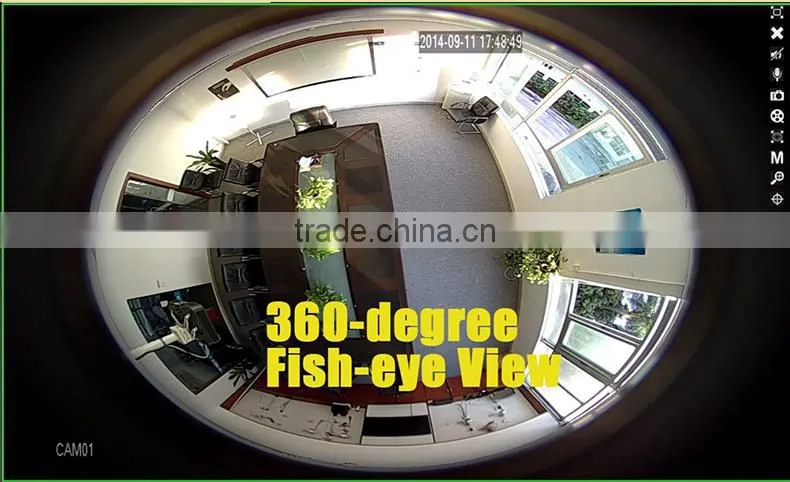

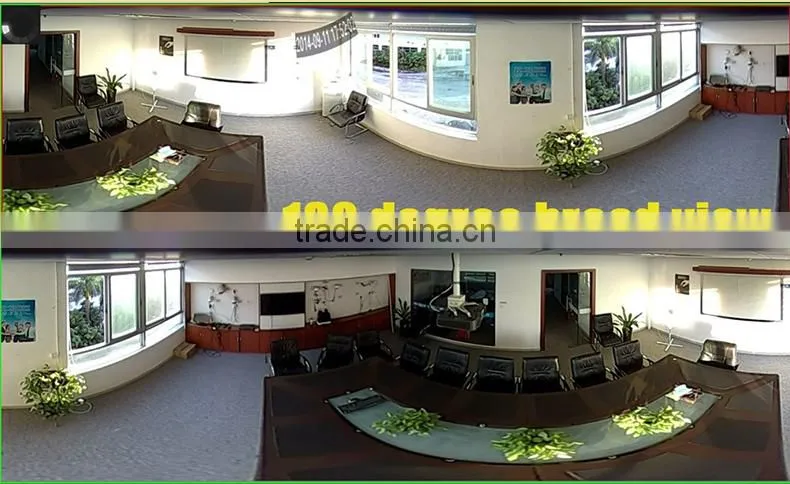

panorama POE 1.3 MP IP 960P Camera with 360 Degrees Full View wireless IP Fish eye camera Support Onvif and P2P
Features:
1. High-performance DSP processor and CMOS image sensor, the image is crisp and clear ;
2. Advanced H.264 HP video compression technology to achieve ultra-low bit-rate, high-definition picture quality;
3. Progressive scan CMOS, Megapixel Resolution, high sensitivity to capture moving images without jagged;
4. Support dual-stream, multiple network cloud services to open security cloud monitoring ;

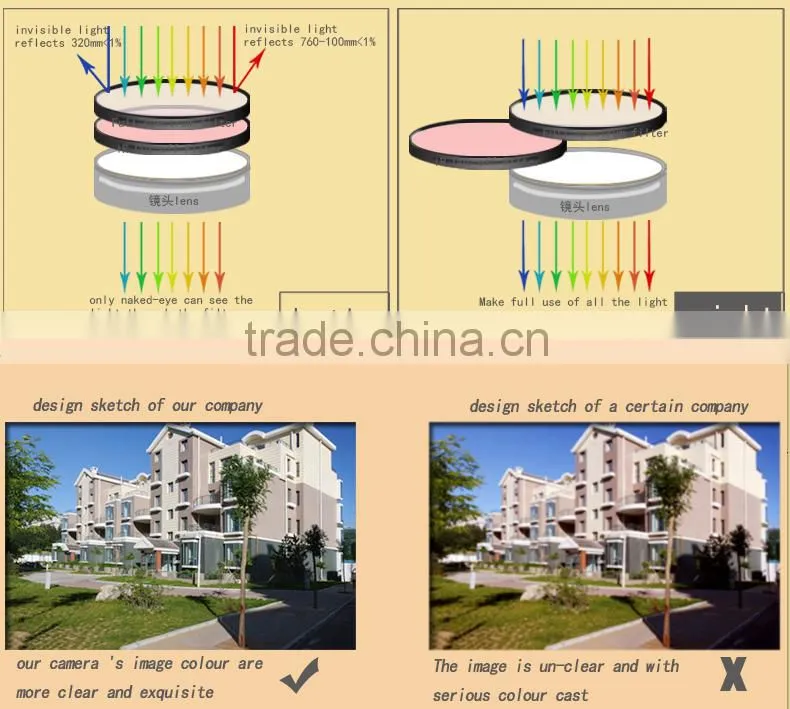

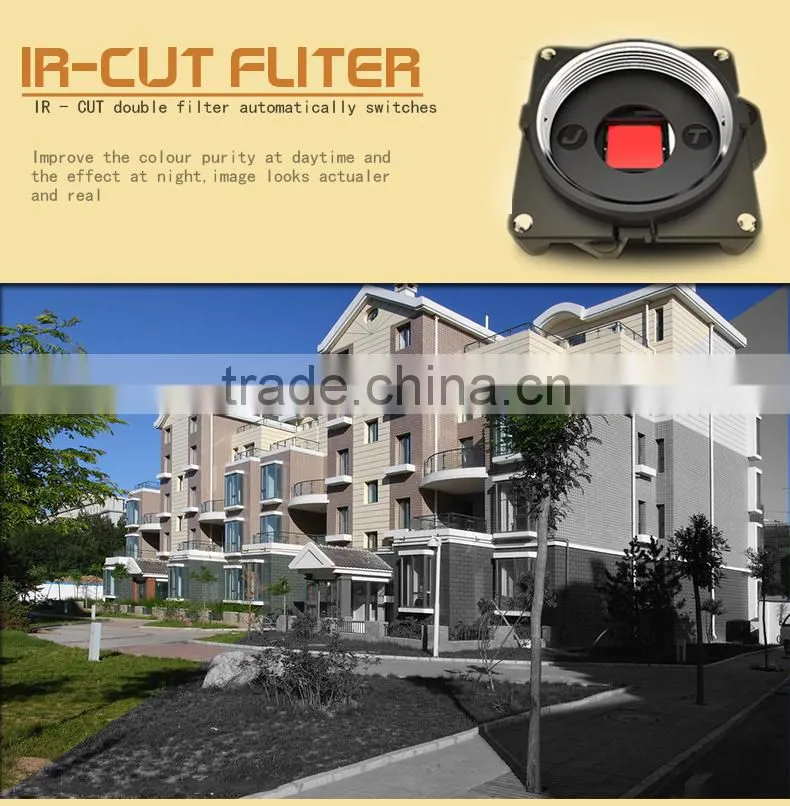

5. Support ICR filter switching function, achiveing the real day and night surveillance ;
6. Supports P2P technology, do not open ports, true plug and play,achieving remote monitoring via DNS;
7. Support network adaptive technology, according to the network bandwidth automatically adjust video frame rate, abnormal self-recovery function, network interruption automatic reconnection functions;
8. Support ONVIF2.2 standard, perfectly achieve a variety of large platform HVR / NVR ;
9. Supports all types of mobile remote monitoring (Windows Mobile,BlackBerry,Android etc.)
Specification:
| Technical Parameters | ||||
| Type | Part Model | TL-360P7 | TL-360P9 | TL-360P1 |
| Camera | Main processor | High-performance DSP | High-performance DSP | High-performance DSP |
| Image sensor | 1/4″Progressive scan CMOS | 1/3″Min.Illumination progressive scan CMOS | 1/2.8″Exmor CMOS Min.Illumination sensor | |
| Horizontal Resolution | 1.0Megapixel | 1.3Megapixel | 2.0Megapixel | |
| Min.Illumination | Color:0.05Lux/F1.2(0Lux IR ON) | Color:0.01Lux/F1.2(0Lux IR ON) | Color:0.01Lux/F1.2(0Lux IR ON) | |
| S/N Ratio | ≥52dB | ≥52dB | ≥60dB | |
| Day/Night mode | ICR IR filter automatically switches | |||
| Lens | 1.56mm Megapixel lens optional, CS interface | |||
| Electronic shutter | 1/25S~1/10000S | |||
| IR LEDs | 23pcs IR LEDs | |||
| IR distance | 10~15M | |||
| Image | Video compression standard | H.264/M-JPEG | ||
| Video resolution | Main stream:1280*720,Sub stream:704*576/704*480 | ain stream:1280*960,Sub stream:704*576/704*480 | ain stream:1920×1080,Sub stream:704×576/704*480 | |
| Video frame rate | 50Hz:704*576@25fps 60Hz:704*480@30fps | 50Hz:704*576@25fps 60Hz:704*480@30fps | 50Hz:704*576@25fps 60Hz:704*480@30fps | |
| Compression standard | Compression output rate | 48K~8M Bps | 48K~8M Bps | 32K~8M Bps |
| Audio compression standard | G.711/G.726 | G.711/G.726 | G.711/G.726 | |
| Audio compression bit rate | 64Kbps(G.711) / 16Kbps(G.726) | 64Kbps(G.711) / 16Kbps(G.726) | 64Kbps(G.711) / 16Kbps(G.726) | |
| Audio Input | Optional | |||
| Audio Output | Optional | |||
| Network function | Interface Protocol | ONVIF,Support GB GB28181 agreement | ||
| Support agreement | TCP/IP,UDP,SMTP,HTTP,FTP,PPPOE,DHCP,DNS,DDNS,NTP,UPNP,(RTP/RTSP,SIP,IPv4 optional) | |||
| Common functions | Anti-flicker, dual-stream, mirroring, multi-level user | |||
| Ports | Communication interface | 1CH 10/100M Ethernet,RJ45 port | ||
| General specification | Ingress Protection | IP66 TVS 4000V Lightning protection, anti-surge, anti-wave | ||
| POE power supply | Option | |||
| Operating Temp. | -20℃~+70℃ | |||
| Power supply | DC12V±10% | |||
| Power consumption | ≤ 7W | |||
| Dimension | 277×174×174 | |||
| Weight | / | |||
| Application: Suitable for finance,government, telecommunications, the public security, road, warehouses,underground parking, bar, pipe, schools,supermarkets, garden, residential estate and other requested HD image quality places | ||||
At TOLLAR, has our own SMT Technology and Equipments ,can supply Modules Modules of high quality to clients all-over-the world;
Also, To have our own Assembling production lines: Automated module production+Cost-effective shenzhen labor force=Competitive
products.
