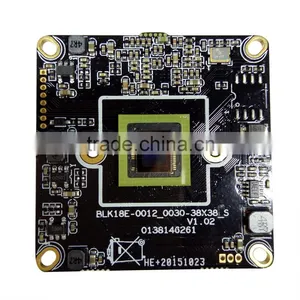

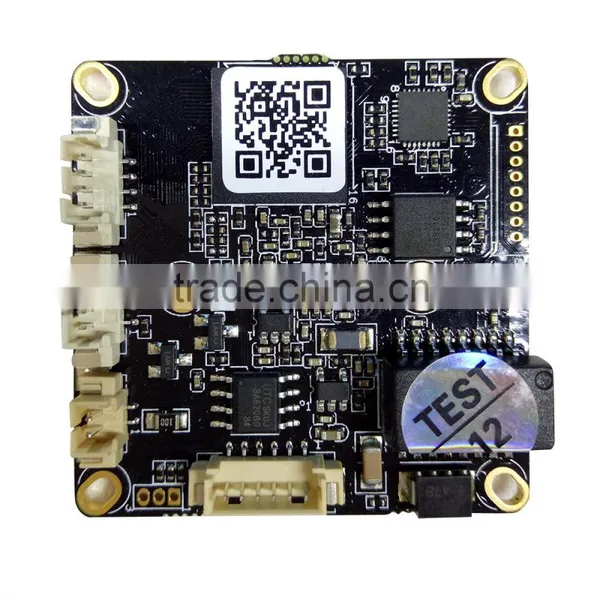

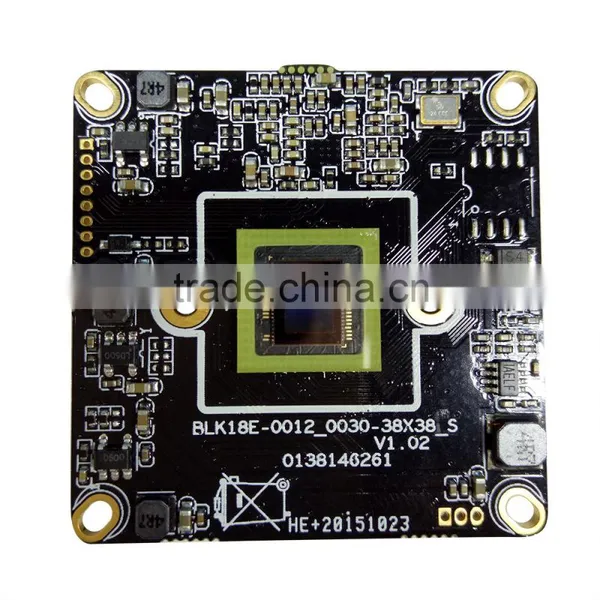

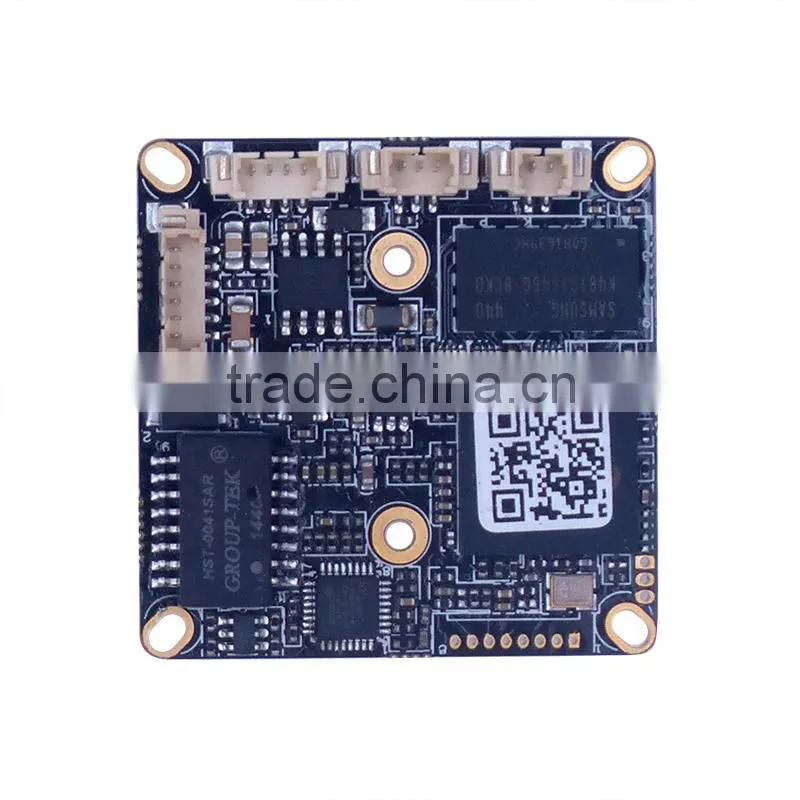

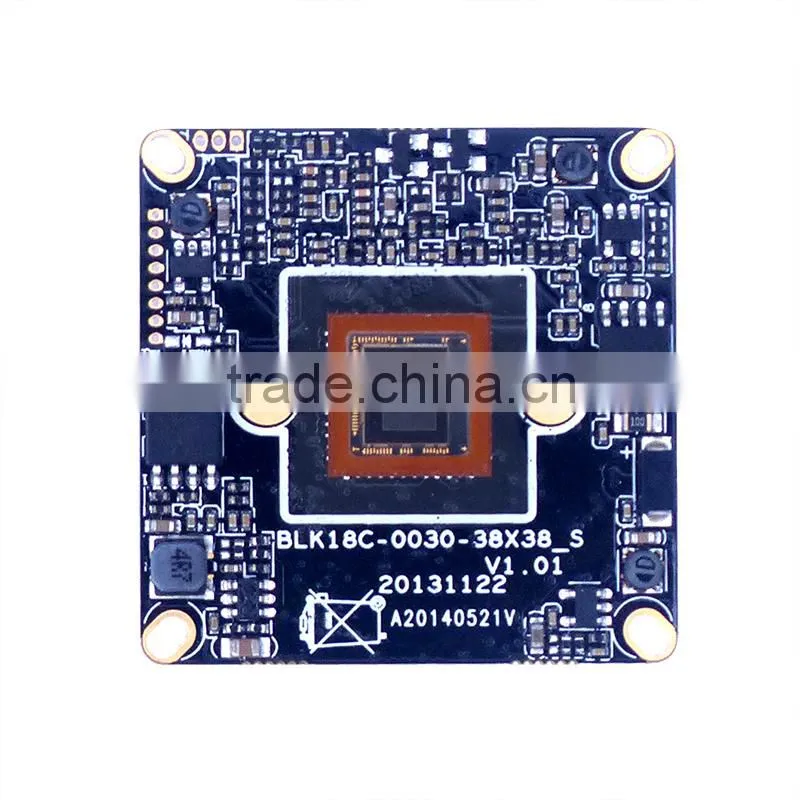

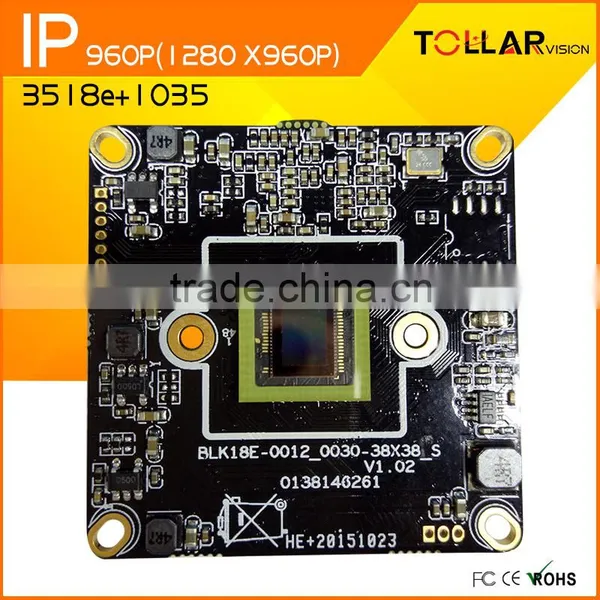

Professional IP 960P 1.3MP 1035 pcb board camera hd
1.Chipset: 1/3'' 3518e+1035
2.Resolution: IP 960P
3.Chipset Demenssion: 38mm*38mm/32mm*32mm
PICTURES
Dates
| Solution | 2431+1035 |
| Sensor | 1/3 " 1.3Mega Pixels camera |
| Lens | Mega pixel 3.6mm board lens with IR CUT |
| System | Dual-core 32-bit DSP, Hardware compression, Watchdog |
| Min illumination | Color 0.1Lux/F1.2; B/W 0.01 Lux/F1.2. |
| Video process | H.264; support dual-stream, AVI format ; support adjustable stream 0.1M~6Mpbs. |
| image output | Main Stream:1920*1080; 704*576 |
| Minor stream: 704*576;352*288; | |
| LAN | RJ45 ethernet interface,10/100M ,Can resist 6KV static electricity |
| Protocol | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc. |
| Other interface | A external signal interface,1* IR-CUT,Support photo resistance input signal and image,IR-CUT,infrared light linkage; |
| Lightning protection | Power,network,POE lightning totally,meet national standard GB/T17626.5, IEC61000-4-5. |
| Service functions | Support WEB,OSD,live video transmission,support motion detection alarm center reminders and screen pop-up linkage;JPEG capture;unified client remote monitoring software,MYEYE,perfect SDK; |
| ONVIF | Support |
| Mobile monitor | Support mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android) |
| Power supply | DC12V power input interface |
| Dimension | Item size:32*32single board |
| Notes | Support POE (optional),-S is neutral generic version,does not accept any custom; |
| Working temperature | –25~65C |
| Protection Level | IP66 Water-proof outdoor use camera |
| Cloud | Support P2P Cloud |
| Operating humidity | less than 95%RH |
| Windows | XP,VISITA,7,MAC,Linux Compatible |
| Support | Support Multi-Screen software and CMS POE Optional |
| Auto Image Control | AE, AWB |
Connect Way
Normal Package:
25pcs in a pallet;
500pcs in a carton, Size: 30*30*37CM Weight: 6.5kgs.
Delivery Time:
A: We can supply from stock for samples;
B: Within 3 working days for 1000pcs ordered quantity;
C: Within 1week for 5000pcs ordered quantity;
D: Within 12 working days for 10,000 ordered quantity.
Warranty:
2-years long time warranty, life time maintain !
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery term:
By Express(DHL/FEDEX/TNT/UPS/EMS).By Air ,By Sea.
tollar security equipment co.,ltd is one of the fast growing cctv manufactures in china,We are a modernized Hi-tech enterprise that specializes in developing high quality security products,combining both manufacturing and sales.
We deal in all kinds of CCTV cameras such as camera module,different types analog cameras,HD-Analog(CVI,AHD,TVI),IP,PTZ Speed Dome camera,dvr,nvr knit etc cameras,all our products have been certified by CE,FCC,ROHS.
Now our products have been successfully exported to over 100 countries,obtained full OEM/ODM experience,gained huge share of the market and popularity.we have more than 100 skilled workers are able to produce 30,000pcs of high-Quality CCTV camera and more than 100,000pcs chipset monthly.
We wish to serve different levels of organizations and customers in all kinds of sectors and make our best effort to meet clients' satisfaction.
TOLLAR is a production of CCTV chipboard sales of the manufacturer, its products cover : Original SONY CCD, CMOS, LG, Nextchip,SDI ... ect.
Also, we can well customize the products as per our clients' requests.
Welcome OEM & ODM orders !
For more details or best price, welcome to contact with Sunny at any time !!!
Many thanks for your greatest support!!!
1. What is your company’s competitive advantage?
TOLLAR VISION is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system.
OEM/ODM orders are welcomed!
2. How about your company's production capacity?
Camera modules: 100,000pcs/Month;
Complete HD-Camera: 40,000pcs/Month.
3. What's the MOQ?
Our minimum order qty is 100pcs each model, but we accept small order as trial order.
4. What is your delivery time?
Camera module system:
A) Supply from stock for 1000pcs order quantity;
B) Within 2-3 working days for 5000pcs order quantity.
Complete HD-Camera system:
A) Within 3-5 working days for samples order,
B) Within 7-15 working days for bulk order.
5. How about your warranty?
Warranty is 24 months, life-time maintain!
6. What is your company's compensation policy?
About the after-sale service, we always produce the security items with best quality. The damage rate is below 3‰.
Do not worry; you will get some related components for free when you place normal order.
We would like to compensate buyer's loss if our products have quality problem. For small qty problem products, we can replace with new products in next order.
For larger qty problem products, we can accept returned problematic products, and then we analyze & replace them by good quality products.
