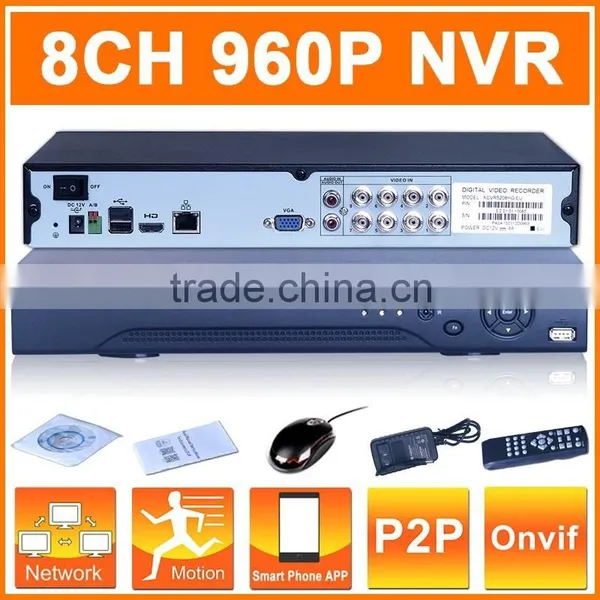

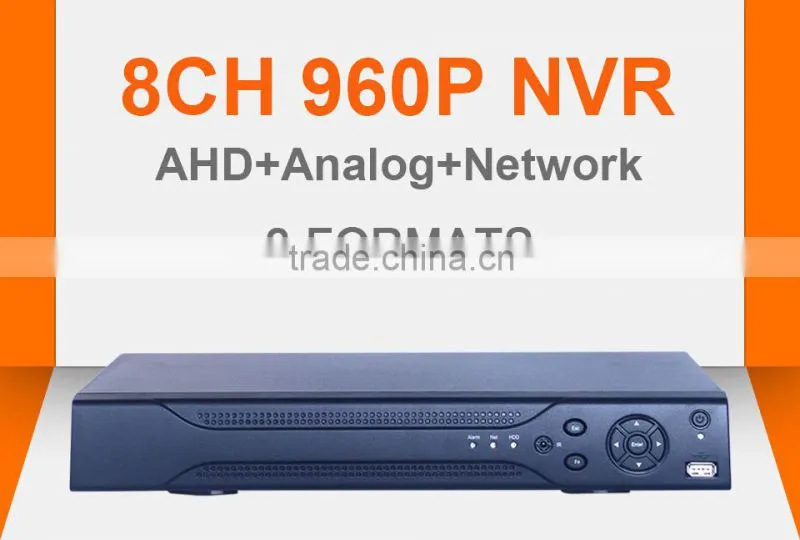

Tollar H.264 8CH AHD video recorder realtime and playback P2P 960P NVR h.264 professional dvr

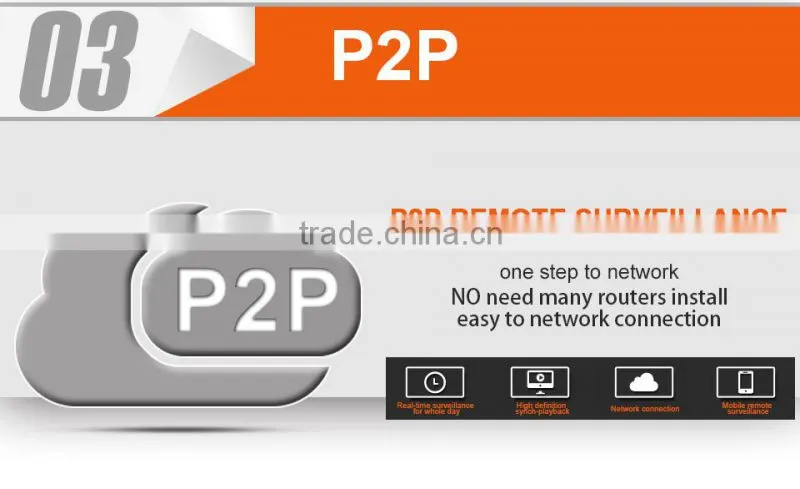

1. P2P remote surveillance

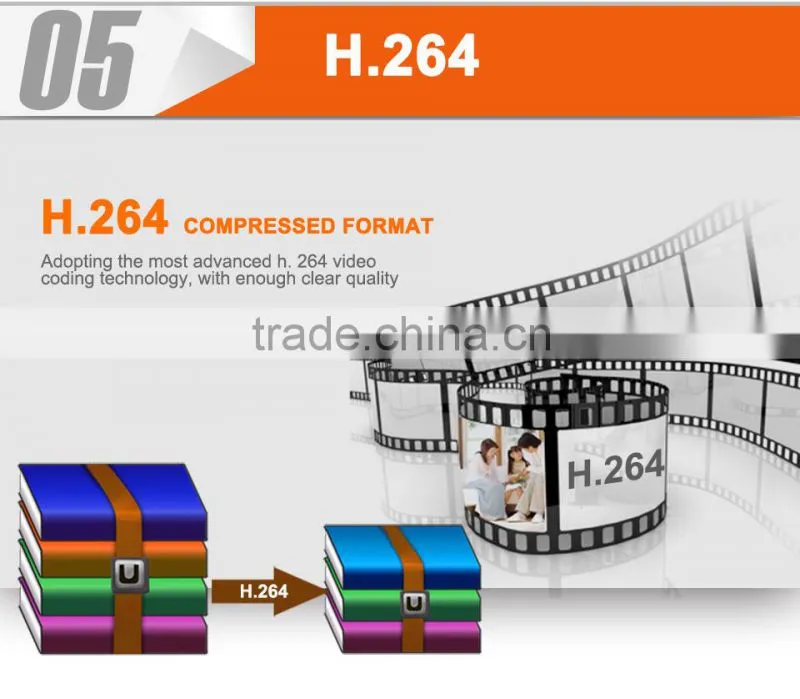

2. H.264 compressed format

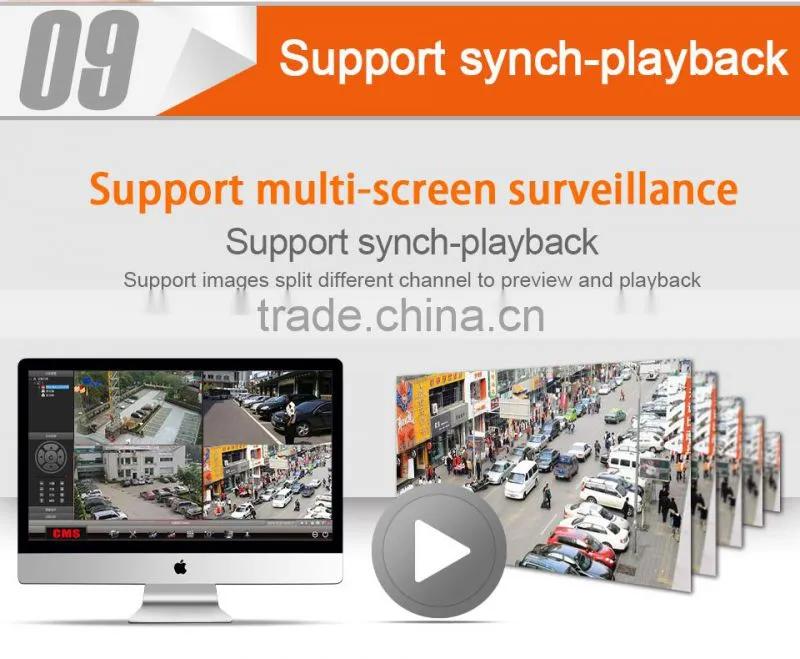

3. High definition synch-playback
PICTURES
DATES
| Paramete | Main Prcessor | Embedded processor | ||
| Operating system | Embedded LINUX | |||

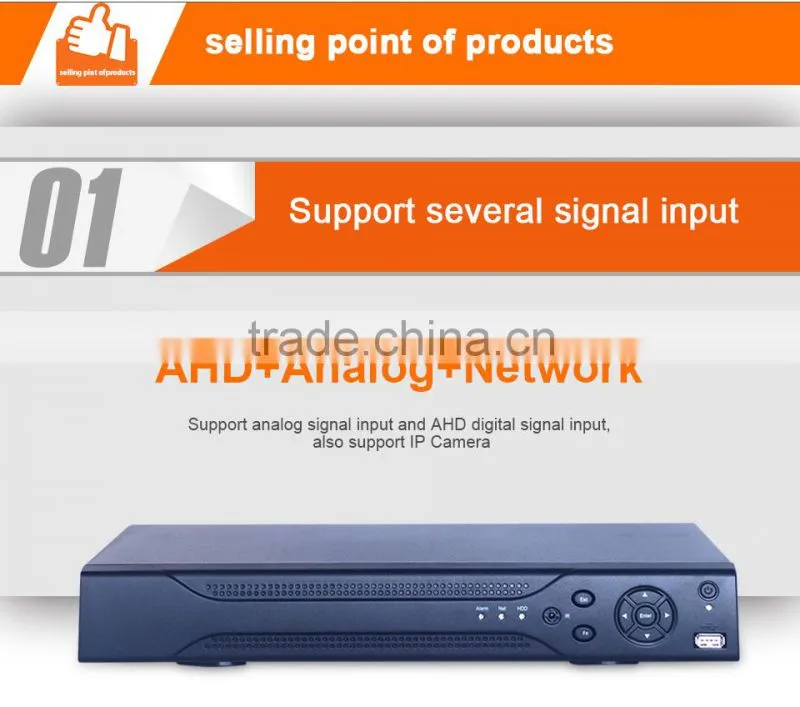

| Video Input | 8 channel,BNC | |||
| Standard | NTSC(525Line,60f/s),PAL(625Line,50f/s) | |||
| Audio Input | 4 channel,BNC | |||
| AUDIO Output | 1 channel,BNC | |||
| Audio Two-way Talk | Reuse audio input/output channel 1 | |||

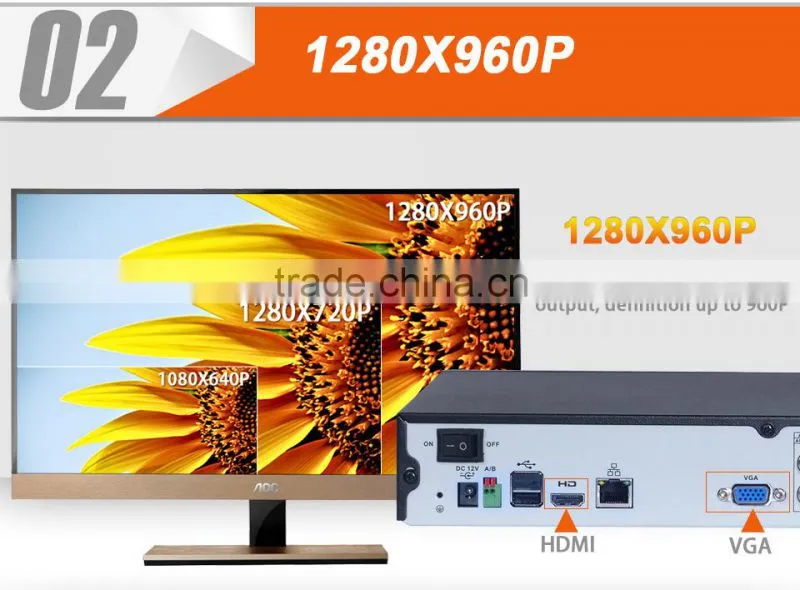

| Display Interface | 1 HDMI,1VGA,1BNC | |||
| Resolution | 1920*1080,1280*1024,1280*720,1024*768,800*600 | |||
| Display Split | 1//4/8 | |||
| Privacy Masking | 4 rectangular zones(each camera) | |||
| OSD | camera title,Time,Video loss,Camera lock,Motion detection,Recording | |||
| Video/Audio compression | H.264/G.711 | |||
| Resolution | 720P(1280*720/1280*600)/960h(960*576/960*480)/D1/4CIF(704*576/704*480)/CIF(352*288/352*240)/QCIF(176*144/176*120) | |||
| Record Rate Main stream Extra Stream |
720P/960H/D1/HD1/2CIF/CIF(1-25/30fps) | |||
| CIF/QCIF(1-25/30fps) | ||||
| Bit Rate | 48-6144kb/s | |||
| Record Mode | Manual,Schedule(Regular(continuous),MD),Stop | |||
| Record Interval | 1-120min(default;60min),Pre-record;1-30sec,Post-record:10-300 | |||
| Trigger Events | Recording,PTZ,Tour,Video Push,Email,FTP,Spot,Buzzer&Screen | |||
| Video Detection | Video Detection,Motion Detection,MD Zones:396(22/8),Video loss&camera Blank | |||
| Alarm Input | 8 channel | |||
| Sync Playback | 1/4//8 | |||
| Functions | Search Mode | Time/Date,MD&Exact search(accurate to second) | ||
| Playback Functions | Play,Pause,Stop,Rewind,Fast play,Slow play,Next file,Previous file,Next camera,Previous camera,Full screen,Repeat,Shuffle,Backup selection | |||
| Backup Mode | USB Device/network | |||
| Network Ethernet | RJ-45 port(10/100M/1000M) | |||
| Network Functions | PPPOE,DDNS,FTP,IP Fiter | |||
| Max User Access | 128 users | |||
| Smart Phone | iphone,ipad,Android,Windows,Phone | |||
| Power supply | DC12V | |||
Netural Hardboard box outside with air pocket for each one,for the box,we can design and print as your requirement.
first,you can take the sample from our aliexpress to order,for the large quantity,you can email or call me online,i'll give you more clear picture and lowest price.
products manufacturing
24 hours online technical support
customised product sourcing
free technical training
2 years product warranty after-sale service
tollar security equipment co.,ltd is one of the fast growing cctv manufactures in china,We are a modernized Hi-tech enterprise that specializes in developing high quality security products,combining both manufacturing and sales.
We deal in all kinds of CCTV cameras such as camera module,different types analog cameras,HD-Analog(CVI,AHD,TVI),IP,PTZ Speed Dome camera,dvr,nvr knit etc cameras,all our products have been certified by CE,FCC,ROHS.
Now our products have been successfully exported to over 100 countries,obtained full OEM/ODM experience,gained huge share of the market and popularity.we have more than 100 skilled workers are able to produce 30,000pcs of high-Quality CCTV camera and more than 100,000pcs chipset monthly.
We wish to serve different levels of organizations and customers in all kinds of sectors and make our best effort to meet clients' satisfaction.
Q: How long is the warranty?
A: 2 -years-warranty since delivered out.
Q: What's the MOQ?
A: 1pc for sampe, at least 10pcs after sample order.
Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
Q: Why do you choose us?
A: Choose Tollar vision; Choose a qualified CCTV Products manufacturer!
We will try our best to find the products you need, we will provide you with the most satisfactory service. If you want to know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
