Home > Security & Protection > Surveillance, Control & Protection > Monitoring System & Software > H.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR Support ONVIF/HDMI/ Mobile Surveillance/CMS Network Video Recorder(A9432E)

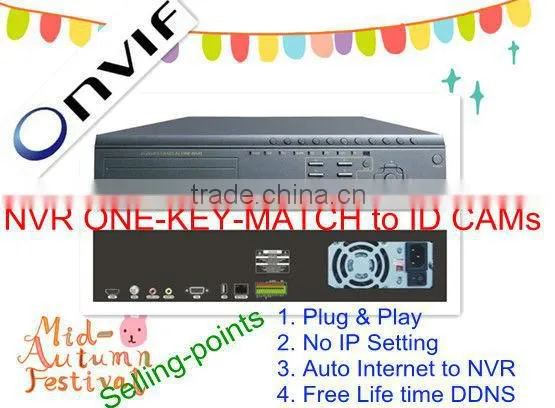

H.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR Support ONVIF/HDMI/ Mobile Surveillance/CMS Network Video Recorder(A9432E)

H.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR Support ONVIF/HDMI/ Mobile Surveillance/CMS Network Video Recorder(A9432E) thumbnail-1
H.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR Support ONVIF/HDMI/ Mobile Surveillance/CMS Network Video Recorder(A9432E) thumbnail-2
H.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR Support ONVIF/HDMI/ Mobile Surveillance/CMS Network Video Recorder(A9432E) thumbnail-3
H.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR Support ONVIF/HDMI/ Mobile Surveillance/CMS Network Video Recorder(A9432E) photo-1
H.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR Support ONVIF/HDMI/ Mobile Surveillance/CMS Network Video Recorder(A9432E) photo-2
H.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR Support ONVIF/HDMI/ Mobile Surveillance/CMS Network Video Recorder(A9432E) photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TL, OEM/ODM order is welcomed !
Model Number:
A9432E
Contact Supplier Request Quote Chat Now
Shenzhen Tollar Security Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TL, OEM/ODM order is welcomed !
Model Number A9432E

Specifications

1. 720P real-time 32CH NVR support ONVIF;
2. Free DDNS Domain name,HDMI output;
3.NVR ONE-KEY-MATCH to ID CAM,plug & play



Specification of 16CH /25CH/32CH  1080P / 720P NVR with ONVIF Standard:



Model

A9416E

A9425E

A9432E

60HZ(NTSC) recording

30FPS/CH @ 1080P,960P,720P,D1,VGA,CIF(real time)

15FPS/CH @ 1080P,960P
30FPS/CH @ 720P,D1,VGA,CIF(real time)

15FPS/CH @ 1080P,960P
30FPS/CH @ 720P,D1,VGA,CIF(real time)

50HZ(PAL) recording

25FPS/CH @ 1080P,960P,720P,D1,VGA,CIF(real time)

12FPS/CH @ 1080P,960P
25FPS/CH @ 720P,D1,VGA,CIF(real time)

12FPS/CH @ 1080P,960P
25FPS/CH @ 720P,D1,VGA,CIF(real time)

Playback

 16-ch 1080P,960P,720P,D1,VGA,CIF

 9-ch 1080P,960P,720P,D1,VGA / 16-ch CIF

 9-ch 1080P,960P,720P,D1,VGA / 16-ch CIF

HDMI output

1920*1080

VGA output

1920*1080/1280*1024 / 800*600

BNC output

NTSC:720X480 / PAL:720X576

CDS threshold setup

Support

Zoom

Continuous variable

Network protocol

DHCP, DDNS, UPnP, SMTP, HTTP,ONVIF, FAB

IE

Windows

CMS

Windows / Mac

CMS function

64pcs 32-ch NVR connect,256-ch preview,maximum 1080P,PTZ control,Network playback,Network backup,Network menu setup,snapshot,PC record,AVH file playback,AVH file transform to AVI file,etc.

Motion detect

Support

Record mode

Time /Sensor / Motion / Motion+Sensor

Mobile OS

Windows mobile, iPhone, Android, Symbian, Blackberry

Mobile function

16-ch preview,Maximun resolution is 1080P,Network playback,PTZ control,snapshot,etc.

Listen

 Come from 16-ch IPCAM,CMS

 Come from 25-ch IPCAM,CMS

 Come from 32-ch IPCAM,CMS

Audio output

Send to 16-ch IPCAM or CMS

Audio input

Come from 16-ch IPCAM

Come from 25-ch IPCAM

Come from 32-ch IPCAM

Alarm email

Support

Alarm input

4-ch from NVR and 16-ch from IPCAM

4-ch from NVR and 25-ch from IPCAM

4-ch from NVR and 32-ch from IPCAM

Alarm output

1port NVR and 16-ch send to IPCAM

1port NVR and 25-ch send to IPCAM

1port NVR and 32-ch send to IPCAM

Hard disc

8*3000G SATA HDDs

Keyboard control

Network or RS485

PTZ control

Network or RS485

Network connector

1000M RJ45

Power

ATX250W



Selling Points:
1. Support HDMI/YPbPr output, resolution is 1920×1080 ;

2.  Up to 32 channels D1 IPCAM connect or 16 channels 1080P IPCAM connect ;

3.  BUILD-IN DDNS domain name ;

4.  Free of port forwarding ;

5.  CMS Applicable to iMac OS ;

6. Support five OS for mobile surveillance ;

7.  Even 100  monitoring points, only need one  network cable connect to central control room.

h.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR support ONVIF/HDMI/ mobile surveillance/CMS network video recorder(A9432E)

h.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR support ONVIF/HDMI/ mobile surveillance/CMS network video recorder(A9432E)h.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR support ONVIF/HDMI/ mobile surveillance/CMS network video recorder(A9432E)

 h.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR support ONVIF/HDMI/ mobile surveillance/CMS network video recorder(A9432E)h.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR support ONVIF/HDMI/ mobile surveillance/CMS network video recorder(A9432E)h.264 32CH 1080P 720P Real-time 8*3000GB HDDs NVR support ONVIF/HDMI/ mobile surveillance/CMS network video recorder(A9432E)



Our HD IP / ID network Products are below listed:

ID CAM Series: 720P ID CAM ; 1080P ID CAM;

NVR series:

4CH 1080P Real-time NVR;

9CH 720P Real-time NVR;

16CH 720P Real-time NVR;

16CH 1080P Real-time NVR;

25CH 720P Real-time NVR;

32CH 720P NVR.



For any more details or best price for ID CAM & NVR, welcome to contact with Sunny at any time !!



Thanks for your greatest support !!
