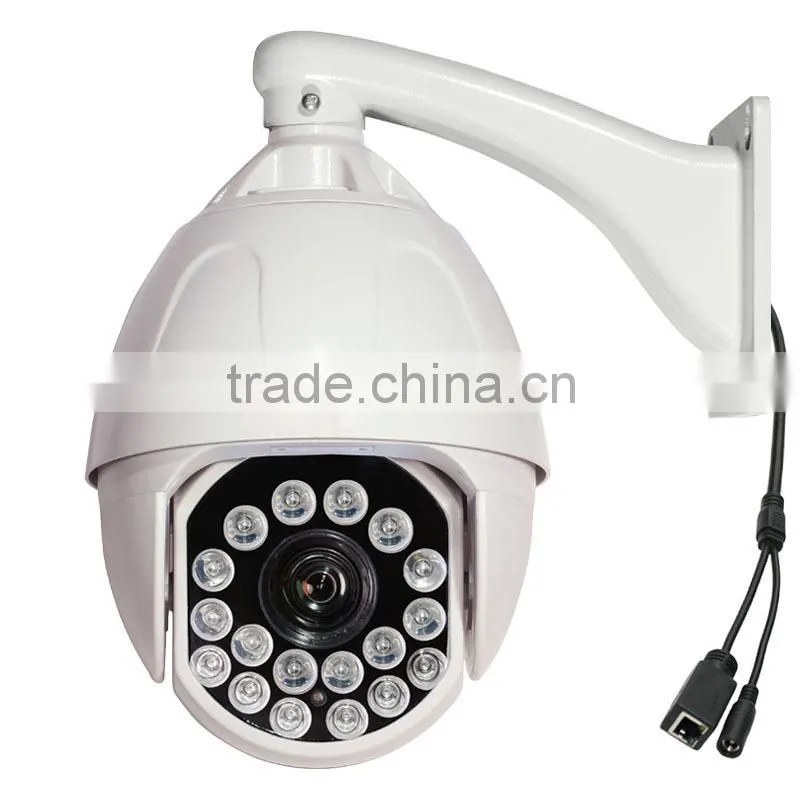

Outdoor 7 Inch Onvif 960P 1.3MP Middle Speed Dome PTZ IP Camera 22X Optical Zoom IR200M Infrared CCTV Camera
Key Feature
1.7 inch
2.Optiacal zoom: 22X, day vision: 1000m
3.Network Protocol: TCP/IP, HTTP, DDNS, DHCP, NTP,FTP, SMTP, RTSP, RTP
4.Night Version:can see the face within 80m,can see the object within 200m
5.Power recovery function,Guard Position
6.Transparent part is glass,easily cleaning
7.Support ONVIF 2.0,compatible with ikvision, Dahua etc. NVR
8.360°continuous rotation, Horizontal rotation speed: 0.1°-40°/s, Vertical rotation speedl:0.1°-20°/s
Pictures
Dates
| Camera Parameter | CPU | TI 365 |
| Image Sensor | 1/3" Progressive Scan CMOS | |
| Effective Pixel | 1.3Mega Pixel (1280x960) | |
| Signal system | PAL/NTSC | |
| Horizontal Resolution | ≥800 TV lines | |
| Video Format | 25 fps: 1280*960; 25fps: 640*480; 25fps: 288*192 | |
| Min. illumination | 0.5 Lux: F1.6(color), 0.09 Lux: 1.6(black & white), IR mode: 0Lux | |
| Optical Zoom | 22X, auto focus | |
| Focus Length | 4.5 ~98mm | |
| Visual Angle | 55.4 degree~2.9 degress | |
| Day & Night mode | Auto IR-CUT | |
| PTZ Parameter | Rotation Speed | Horizontal 0.1~40degress/S, Vertical 0.1-20degress/S |
| Preset Speed | Horizontal 40 degress/S; Vertical 20 degress/S | |
| Rotation Range | Horizontal 0~360 degress unlimited rotation; Vertical 0~90 degress auto 180 degress reversal | |
| A-B two points scan | Random setting | |
| A-B two points scan speed | Fast speed/Middle speed/Low speed, speed adjustable | |
| Cruise No. | 8 groups (8 presets each group) | |
| Presets | 128 | |
| Alarm Input | 1ch | |
| Alarm Output | 1ch | |
| Power Memory | Support | |
| Guard Position | Support | |
| IR light | IR lights No. | F22 x 18pcs IR LED Lights, Effective distance up to 200m |
| Auto Control IR light | Auto IR-cut as per camera’s focus | |
| Video | Video Compression Format | H .264.; MPEG4 |
| Audio | Video Stream | Main Stream: 960P, 720P, Sub-stream: D1, CIF |
| Alarm | Image Size | 1280*960 or 1080*720 |
| Audio Baud Rate | 64K bps | |
| Voice Intercom | Support | |
| Alarm | 1ch input, 1ch output(optional) | |
| Network Code | User Management | Max. Support 10 users |
| Network Protocol | TCP/IP,HTTP,DDNS,PPOE,NIP,FTP,RTSP,RTP | |
| Access Protocol | Onvif Standard | |
| Network interface | 1ch 10/100 Base T Ethernet, RJ45 interface | |
| Remote Function | Support remote and remote upgrade | |
| Web Service | Built-in Webserver Support IE | |
| Network Bandwidth | 64 kbps-12Wbps | |
| Spec. | Product Size | 7inch |
| Shell | Aluminum Alloy | |
| Bracket | Aluminum Alloy | |
| power supply | DC12V/5A (American /europe/Britain) | |
| Power | 40W(without heater) / 70W(with heater) | |
| Working Temperature | -25C~70C | |

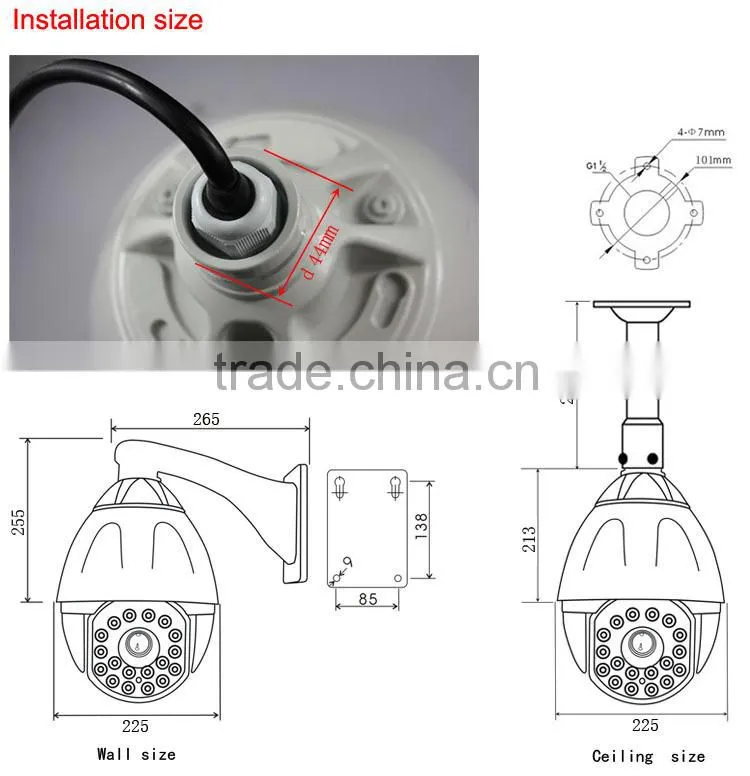

| Install Method | Wall and Ceiling ( standard is wall ) | |
| Packing | Size | 295*295*430mm |
| Weight | 6.0Kg | |
| Size(two package to one carton) | 610*315*430mm | |
| Weight(two package to one carton) | 13.0Kg |
Netural Hardboard box outside with air pocket for each one,for the box,we can design and print as your requirement.
first,you can take the sample from our aliexpress to order,for the large quantity,you can email or call me online,i'll give you more clear picture and lowest price.
products manufacturing
24 hours online technical support
customised product sourcing
free technical training
2 years product warranty after-sale service
tollar security equipment co.,ltd is one of the fast growing cctv manufactures in china,We are a modernized Hi-tech enterprise that specializes in developing high quality security products,combining both manufacturing and sales.
We deal in all kinds of CCTV cameras such as camera module,different types analog cameras,HD-Analog(CVI,AHD,TVI),IP,PTZ Speed Dome camera,dvr,nvr knit etc cameras,all our products have been certified by CE,FCC,ROHS.
Now our products have been successfully exported to over 100 countries,obtained full OEM/ODM experience,gained huge share of the market and popularity.we have more than 100 skilled workers are able to produce 30,000pcs of high-Quality CCTV camera and more than 100,000pcs chipset monthly.
We wish to serve different levels of organizations and customers in all kinds of sectors and make our best effort to meet clients' satisfaction.
TOLLAR is a production of CCTV chipboard sales of the manufacturer, its products cover : Original SONY CCD, CMOS, LG, Nextchip,SDI ... ect.
Also, we can well customize the products as per our clients' requests.
Welcome OEM & ODM orders !
For more details or best price, welcome to contact with Sunny at any time !!!
Many thanks for your greatest support!!!
Q: How long is the warranty?
A: 2 -years-warranty since delivered out.
Q: What's the MOQ?
A: 1pc for sampe, at least 10pcs after sample order.
Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
Q: Why do you choose us?
A: Choose Tollar vision Co., Ltd; Choose a qualified CCTV Products manufacturer!
We will try our best to find the products you need, we will provide you with the most satisfactory service. If you want to know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
PLS ADD MY SKYPE:tollarcctv99
