SHENZHEN 1000TVL 8CH Waterproof Analognvr Kit AHD Camera

SHENZHEN 1000TVL 8CH Waterproof Analognvr Kit AHD Camera thumbnail-1
SHENZHEN 1000TVL 8CH Waterproof Analognvr Kit AHD Camera thumbnail-2

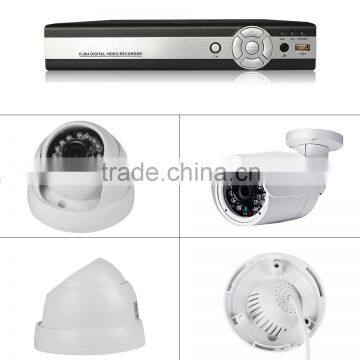

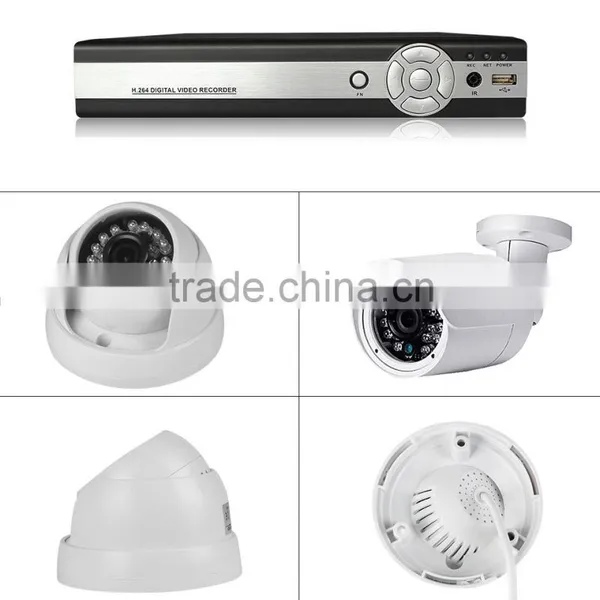

SHENZHEN 1000TVL 8CH Waterproof Analognvr Kit AHD Camera photo-1
SHENZHEN 1000TVL 8CH Waterproof Analognvr Kit AHD Camera photo-2
US$ 200 - 215 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TOLLAR
Model Number:
TL-K8AHD10-002
Contact Supplier Request Quote Chat Now
Shenzhen Tollar Security Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TOLLAR
Model Number TL-K8AHD10-002

SHENZHEN 1000TVL 8CH waterproof analognvr kit ahd camera

Product Description

1. Chipset 1/3 CMOS 1000TVL

2. White metal case

3. 36pcs LEDS

4.3.6mm lens

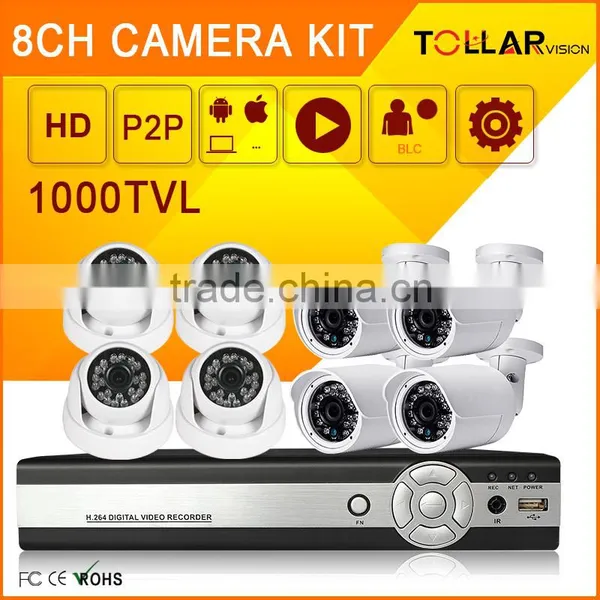

Include:

* 1 x 8CH NVR
* 8 x bullet and dome camera
* 1 x  DC12V/5A power adaptor
* 1 x 1-8 video & power cable
* 1 x CD disk
* 1 x User manual
* 1 x mouse

* 1 x  remote control
* 1 x package box

Pictures

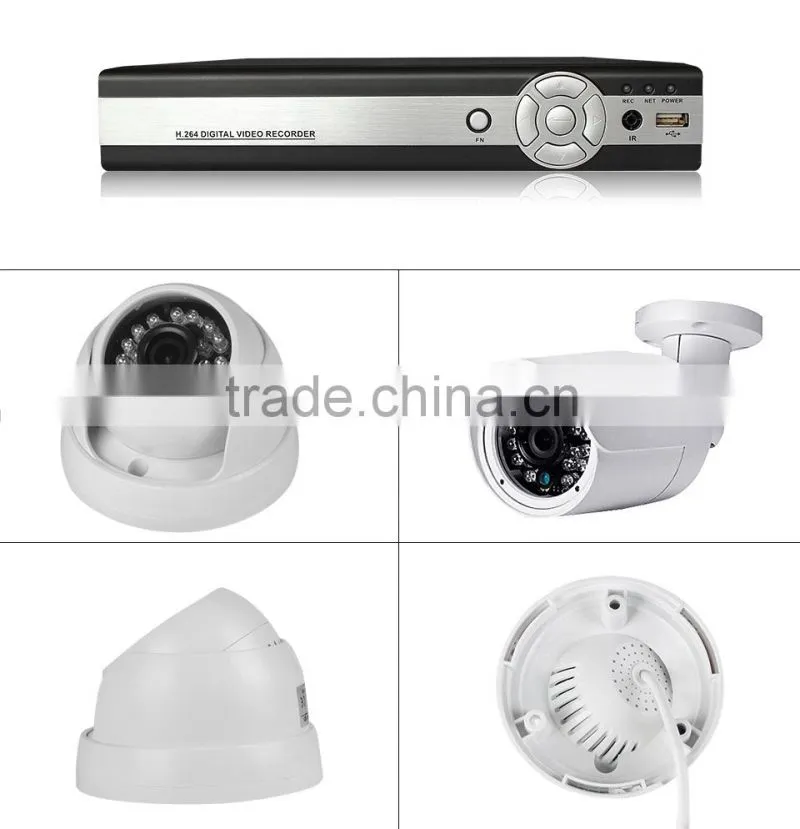

SHENZHEN 1000TVL 8CH waterproof analognvr kit AHD camera



Dates

camera Features
Lens3.6mm MP MRT
LED36pcs F5 LEDS
IR Range20M
OSD MenuSupport(camera title,Time,video loss,camera lock,
Motion detection,recording)
Day/NightAuto(ICR)/Color/ B/W
Noise Reduction3D/2D
General
Power supplyDC12V±10%
Working Environment-10C~+6C/Less than 95%RH(no condensation)
Transmission DistanceOver 500M via 75~3 Coaxial Cable
Ingress ProtectionIP67
NVR Features
Main PrcessorEmbedded processor
Operating systemEmbedded LINUX
Video Input8 channel,BNC
StandardNTSC(525Line,60f/s),PAL(625Line,50f/s)
Audio Input4 channel,BNC
AUDIO Output1 channel,BNC
Audio Two-way TalkReuse audio input/output channel 1
Display Interface1 HDMI,1VGA,1BNC
Resolution1920*1080,1280*1024,1280*720,1024*768,800*600
Display Split1/4/8/9 1280*1024,20
Privacy Masking4 rectangular zones(each camera)
OSDcamera title,Time,Video loss,Camera lock,Motion detection,Recording
Video/Audio compressionH.264/G.711
Resolution720P(1280*720/1280*600)/960h(960*576/960*480)/D1/4CIF(704*576/704*480)/CIF(352*288/352*240)/QCIF(176*144/176*120)
Record Rate   Main stream  720P/960H/D1/HD1/2CIF/CIF(1-25/30fps)
Extra StreamCIF/QCIF(1-25/30fps)
Bit Rate48-6144kb/s
Record ModeManual,Schedule(Regular(continuous),MD),Stop
Record Interval1-120min(default;60min),Pre-record;1-30sec,Post-record:10-300
Trigger EventsRecording,PTZ,Tour,Video Push,Email,FTP,Spot,Buzzer&Screen
Video DetectionVideo Detection,Motion Detection,MD Zones:396(22/8),Video loss&camera Blank
Alarm Input4 channel
Sync Playback1//4
Search ModeTime/Date,MD&Exact search(accurate to second)
Playback FunctionsPlay,Pause,Stop,Rewind,Fast play,Slow play,Next file,Previous file,Next camera,Previous camera,Full screen,Repeat,Shuffle,Backup selection
Backup ModeUSB Device/network
Network EthernetRJ-45 port(10/100M/1000M)
Network FunctionsPPPOE,DDNS,FTP,IP Fiter
Max User Access128 users
Smart Phoneiphone,ipad,Android,Windows,Phone
Power supplyDC12V
size250*45*235mm



Packaging & Shipping

Netural Hardboard box outside with air pocket for each one,for the box,we can design and print as your requirement.

first,you can take the sample from our aliexpress to order,for the large quantity,you can email or call me online,i'll give you more clear picture and lowest price.

SHENZHEN 1000TVL 8CH waterproof analognvr kit AHD camera

Our Services

products manufacturing

24 hours online

technical support customised product sourcing

free technical training

2 years product warranty after-sale service

SHENZHEN 1000TVL 8CH waterproof analognvr kit AHD camera

Company Information

Tollar security equipment co.,ltd is one of the fast growing cctv manufactures in china,We are a modernized Hi-tech enterprise that specializes in developing high quality security products,combining both manufacturing and sales.
We deal in all kinds of CCTV cameras such as camera module,different types analog cameras,HD-Analog(CVI,AHD,TVI),IP,PTZ Speed Dome camera,dvr,nvr knit etc cameras,all our products have been certified by CE,FCC,ROHS.
Now our products have been successfully exported to over 100 countries,obtained full OEM/ODM experience,gained huge share of the market and popularity.we have more than 100 skilled workers are able to produce 30,000pcs of high-Quality CCTV camera and more than 100,000pcs chipset monthly.
We wish to serve different levels of organizations and customers in all kinds of sectors and make our best effort to meet clients' satisfaction.

SHENZHEN 1000TVL 8CH waterproof analognvr kit AHD cameraSHENZHEN 1000TVL 8CH waterproof analognvr kit AHD cameraSHENZHEN 1000TVL 8CH waterproof analognvr kit AHD camera
