Cheap 4CH AHD 960P AHD 130 mega pixel AVR AHD H.264 cctv camera system kits
AHD Surveillance DVR system with 4* 960P 1.3 MP Full HD cameras, 100ft IR night vision, USB backup, 4 channel playback.
Feature of Home Security Camera System - Support full 1080P AHD video input.
- Flexible display with HDMI & VGA output 1/3" Color CCD
- Amazing DVR/HVR/NVR 3-in-1 36 infrared LEDs with 100ft night vision
- Check in from everywhere via smart devices.(iPad, iPhone, Android)
- QR-Code scans for easy access
- Auto IR-Cut brings vivid day and night vision
- Advanced H.264 video compression save storage space
- Motion detection and instant email alert
- Multiple recording modes and playback
- IP66 weatherproof cameras for indoor& outdoor use
- Device port : Support 1 SATA port, up to 4TB each,3 USB2.0 port for operation of mouse control, back up, burning and upgrade
Specification:
| Camera Features | |
| image senor |
2431+AR0130 1.3MP |
| Lens | 3.6mm MP MRT |
| LED | 36pcs F5 LEDS |
| IR Range | 25M |
| OSD Menu | Support(camera title,Time,video loss,camera lock, |
| Motion detection,recording) | |
| Day/Night | Auto(ICR)/Color/ B/W |
| Noise Reduction | 3D/2D |
| Waterproof | IP66, With bracket |
| General | |
| Power supply | DC12V±10% |
| Working Environment | -10C~+60C/Less than 95%RH(no condensation) |
| Transmission Distance | Over 500M via 75~3 Coaxial Cable |
| Ingress Protection | IP66 |
| AHVR Features | |
| Main Prcessor | Embedded processor H.264 |
| Operating system | Embedded LINUX |
| Video Input | 4 channel, BNC |
| Standard | NTSC(525Line,60f/s),PAL(625Line,50f/s) |
| Audio Input | 4 channel,BNC |
| AUDIO Output | 1 channel,BNC |
| Audio Two-way Talk | Reuse audio input/output channel 1 |
| Display Interface | 1 HDMI,1VGA |
| Resolution | 1920*1080,1280*1024,1280*720,1024*768,800*600 |
| Display Split | 1/4/8/9 1280*1024,20 |
| Privacy Masking | 4 rectangular zones(each camera) |
| OSD | camera title,Time,Video loss,Camera lock,Motion detection,Recording |
| Video/Audio compression | H.264/G.711 |
| Resolution | 720P(1280*720/1280*600)/960h(960*576/960*480)/D1/4 |
| CIF(704*576/704*480)/CIF(352*288/352*240)/QCIF(176*144/176*120) | |
| Record Rate Main stream | 720P/960H/D1/HD1/2CIF/CIF(1-25/30fps) |
| Extra Stream | CIF/QCIF(1-25/30fps) |
| Bit Rate | 48-6144kb/s |
| Record Mode | Manual,Schedule(Regular(continuous),MD),Stop |
| Record Interval | 1-120min(default;60min),Pre-record;1-30sec,Post-record:10-300 |
| Trigger Events | Recording,PTZ,Tour,Video Push,Email,FTP,Spot,Buzzer&Screen |
| Video Detection | Video Detection,Motion Detection,MD Zones:396(22/8),Video loss&camera Blank |
| Alarm Input | 4 channel |
| Sync Playback | 1//4, 4//4 |
| Search Mode | Time/Date,MD&Exact search(accurate to second) |
| Playback Functions | Play,Pause,Stop,Rewind,Fast play,Slow play,Next file,Previous file,Next camera,Previous camera,Full screen,Repeat,Shuffle,Backup selection |
| Backup Mode | USB Device/network |
| Network Ethernet | RJ-45 port(10/100M/1000M) |
| Network Functions | PPPOE,DDNS,FTP,IP Fiter |
| Max User Access | 128 users |
| Smart Phone | iphone,ipad,Android,Windows,Phone |

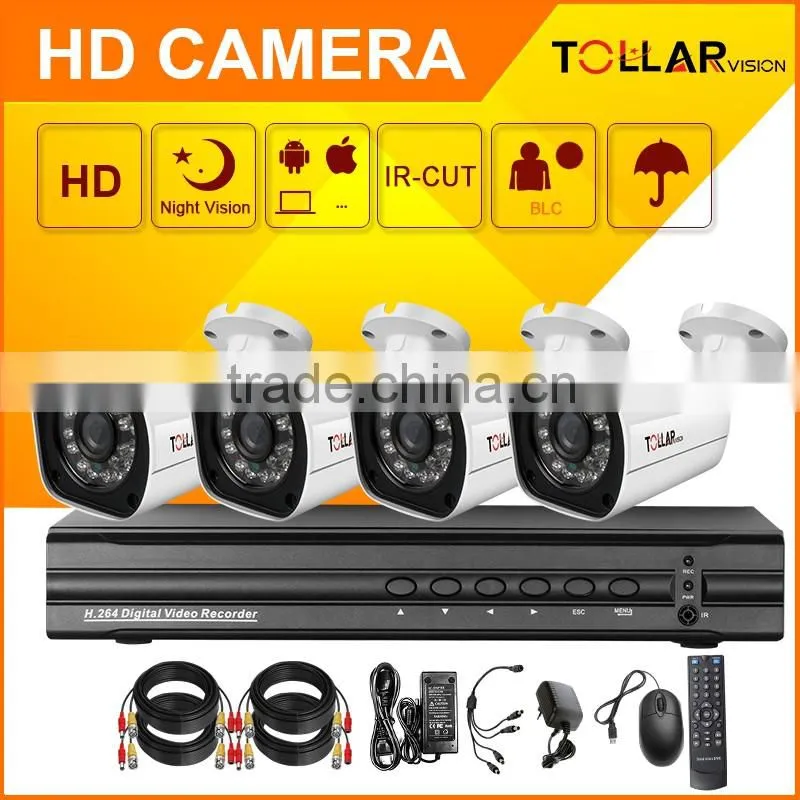

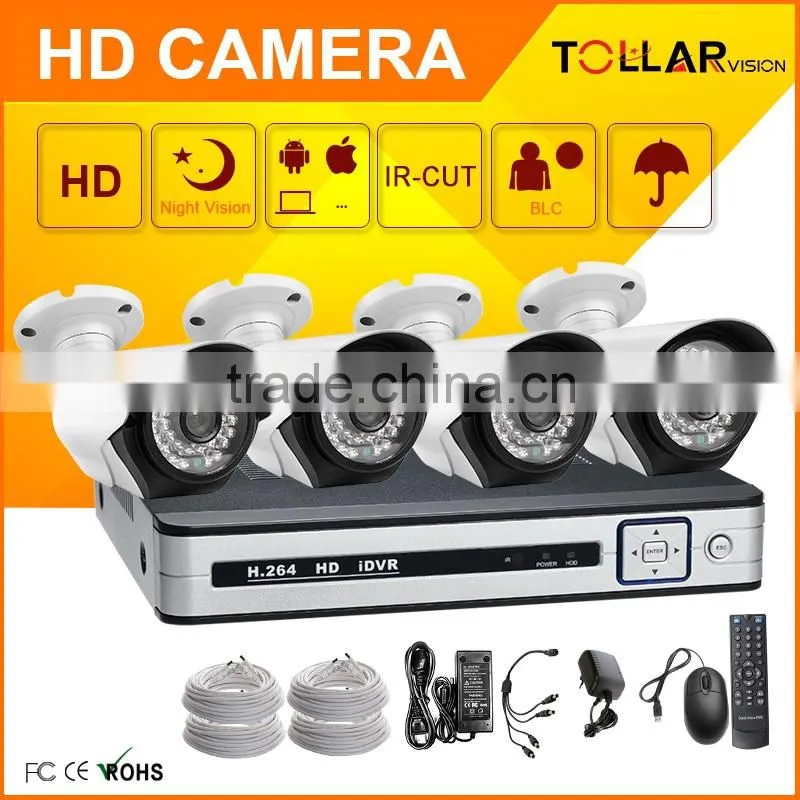

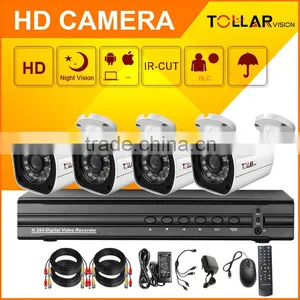

Package Include:
4 x Outdoor 960P IR Color CMOS Camera
1 x 4CH 1080P AHD DVR
4 x 50ft BNC Cables
1x DC 12V/5A Camera Power Adapter
1 x 1 to 4 Power Splitter cable
1 x DC 12V/2A DVR Power Adapter
1x Remote Control & Mouse
1x Software CD + Instruction Manual
Hard Drive is not included in this listing(OPTIONAL)
Weight: 5.9KGS
PC-CMS & Mobile Remote Surveillance:
AHD CAMERA KIT Connection Way:
Netural Hardboard box outside with air pocket for each one,for the box,we can design and print as your requirement.
First,you can ORDER SAMPLE to test your market, for the large quantity, OEM/ODM are acceptable.
Tollar Security Equipment Co.,Ltd is one of the fast growing cctv manufactures in china,We are a modernized Hi-tech enterprise that specializes in developing high quality security products,combining both manufacturing and sales.
We deal in all kinds of CCTV cameras such as camera module,different types analog cameras,HD-Analog(CVI,AHD,TVI),IP,PTZ Speed Dome camera,dvr,nvr knit etc cameras,all our products have been certified by CE,FCC,ROHS.
Now our products have been successfully exported to over 100 countries,obtained full OEM/ODM experience,gained huge share of the market and popularity.we have more than 100 skilled workers are able to produce 30,000pcs of high-Quality CCTV camera and more than 100,000pcs chipset monthly.
We wish to serve different levels of organizations and customers in all kinds of sectors and make our best effort to meet clients' satisfaction.
1. What is your company’s competitive advantage?
TOLLAR VISION is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system.
OEM/ODM orders are welcomed!
2. How about your company's production capacity?
Camera modules: 100,000pcs/Month;
Complete HD-Camera: 40,000pcs/Month.
3. What's the MOQ?
Our minimum order qty is 100pcs each model, but we accept small order as trial order.
4. What is your delivery time?
Camera module system:
A) Supply from stock for 1000pcs order quantity;
B) Within 2-3 working days for 5000pcs order quantity.
Complete HD-Camera system:
A) Within 3-5 working days for samples order,
B) Within 7-15 working days for bulk order.
5. How about your warranty?
Warranty is 24 months, life-time maintain!
6. What is your company's compensation policy?
About the after-sale service, we always produce the security items with best quality. The damage rate is below 3‰.
Do not worry; you will get some related components for free when you place normal order.
We would like to compensate buyer's loss if our products have quality problem. For small qty problem products, we can replace with new products in next order.
For larger qty problem products, we can accept returned problematic products, and then we analyze & replace them by good quality products.
