2015 modern design hot sell frameless double glass window price

Packing:frameless double glass window price will be wrapped in plastics film and paper.
All hardware of balcony glazing will be packed in separate boxes and marked correspondingly.

2015 modern design hot sell frameless double glass window price

You Need a Service!

There are no frames between glass panels and each glass panel can freely slide to the left or right to open for ventilation or cleaning purpose with Finzone04 balcony glazing. Total or partial balcony enclosure or opening is achieved.The characteristics of Finzone04 balcony glazing makes the cleaning of the windows to be very easy,you can clean the reverse and facade with every glass panel.The balcony installed with Finzone04 balcony glazing looks like a transparent package balcony,which not only doesn't damage the appearance and style of the building,but also contributes a lot to the integral beauty of the balcony.

System features for frameless double glass window price

Structure drawing for frameless double glass window price

Mechanical properties for frameless double glass window price

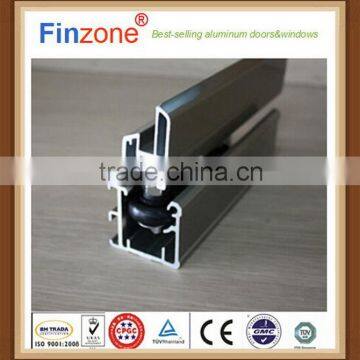

The guide profiles are made in compliance with 6063T5 as special profiles

Tensile strength of the frame from the guide profile: 860 kg

Guide profile deflection 80 kg / 3.8 m:

Perpendicular: 3.5 cm

Horizontal: 7.5 cm

No permanent changes in shape

Each glass element is supported by four 8 mm hinge axles, featuring a total of 10 horizontal wheels

Durability of Nylon bearing wheel in random profile loading: undamaged over 600 kg Gearing heat resistance (POM): approx +90 Degree C

Frost resistance: over -30 Degree C

All metal parts are non-corrodible: only aluminum and stainless steel

Installation on concrete and brick surface is by 8 mm stainless steel bolts and brass anchor

Sound insulation for frameless double glass window price

For 100 Hz Reduction 6.7 dB

For 2400 Hz Reduction 13.5 dB

Measured according to international standards ISO 140-5 & ISO 717-1

Wind pressure for frameless double glass window price

Finzone04 balcony glazing  can support the wind speed according to the panel height and glass thickness

Function for frameless double glass window price's shapes

Color choice for frameless double glass window price

Customers coming for frameless double glass window price

 Exhibitions for frameless double glass window price

Users' projects for frameless double glass window price

Effective Factory for frameless double glass window price

Our Package for frameless double glass window price

Certificates for frameless double glass window price

frameless double glass window price
