Finzone04 economic balcony glazing
- 100000 Meter / Meters per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Finzone | Model Number: | Finzone04 |
Frame Material: | Aluminum Alloy | Open Style: | Sliding | Type: | Sliding Windows |
Opening Pattern: | Horizontal |
Packaging Details
Aluminum of balcony glazing will be wrapped in plastics film and paper.
All hardware of balcony glazing will be packed in separate boxes and marked correspondingly.
Product Description
You Need a Service!

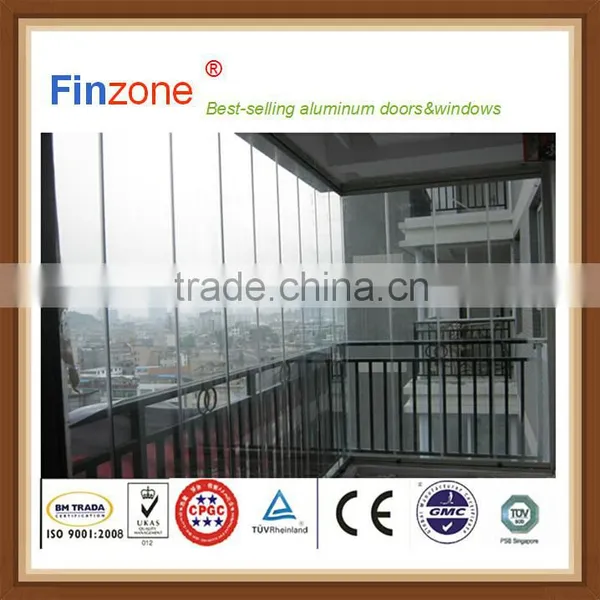

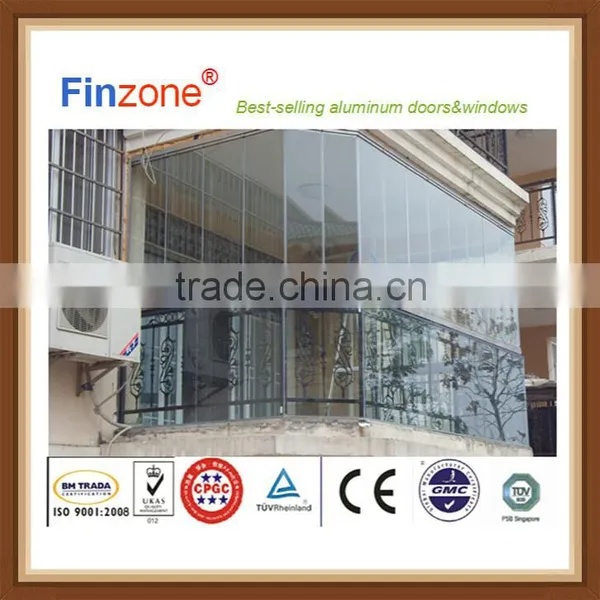

There are no frames between glass panels and each glass panel can freely slide to the left or right to open for ventilation or cleaning purpose with Finzone04 balcony glazing. Total or partial balcony enclosure or opening is achieved.The characteristics of Finzone04 balcony glazing makes the cleaning of the windows to be very easy,you can clean the reverse and facade with every glass panel.The balcony installed with Finzone04 balcony glazing looks like a transparent package balcony,which not only doesn't damage the appearance and style of the building,but also contributes a lot to the integral beauty of the balcony.
System features for Finzone04 balcony glazing
Structure drawing for Finzone04 balcony glazing
Mechanical properties for Finzone04 balcony glazing

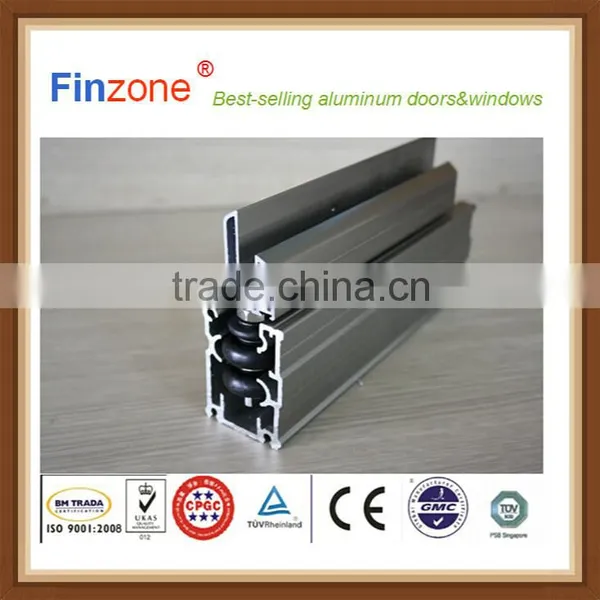

The guide profiles are made in compliance with 6063T5 as special profiles
Tensile strength of the frame from the guide profile: 860 kg
Guide profile deflection 80 kg / 3.8 m:
Perpendicular: 3.5 cm
Horizontal: 7.5 cm
No permanent changes in shape
Each glass element is supported by four 8 mm hinge axles, featuring a total of 10 horizontal wheels
Durability of Nylon bearing wheel in random profile loading: undamaged over 600 kg Gearing heat resistance (POM): approx +90 Degree C
Frost resistance: over -30 Degree C
All metal parts are non-corrodible: only aluminum and stainless steel
Installation on concrete and brick surface is by 8 mm stainless steel bolts and brass anchor
Sound insulation for Finzone04 balcony glazing
For 100 Hz Reduction 6.7 dB
For 2400 Hz Reduction 13.5 dB
Measured according to international standards ISO 140-5 & ISO 717-1
Wind pressure for Finzone04 balcony glazing
Finzone04 balcony glazing can support the wind speed according to the panel height and glass thickness
wind speed | Beaufort scale description | Equivalent pressure | Maxiumum height for 8mm balcony glazing |
121km/h | Hurricane | 700Pa | 1.85m |
112km/h | Violent storm | 600Pa | 2m |
102km/h | Storm | 500Pa | 2.2m |
79km/h | Severe gale | 300Pa | 2.5m |
Function for Finzone04 balcony glazing's shapes
Color choice for Finzone04 balcony glazing
Customers coming for Finzone04 balcony glazing
Exhibitions for Finzone04 balcony glazing

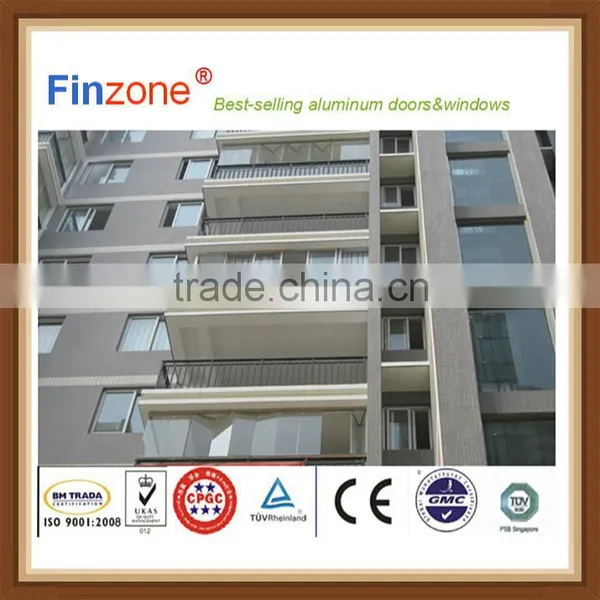

Users' projects for Finzone04 balcony glazing
Effective Factory for Finzone04 balcony glazing
Our Package for Finzone04 balcony glazing
Certificates for Finzone04 balcony glazing
Company Profile
Our company is a professional manufacturer of balcony glazing systems in China. Through constant pioneering and development, our company becomes one of the largest frameless window manufacturers in China, integrating the design, manufacture and sale of frameless balcony windows.
Design and manufacture are our strongest assets and we have the knowledge, know-how and experience to assimilate our products so that special requirements and wishes can be taken into account no matter what continent we are talking about. Now, we are manufacturing our products in over 30 factories in China and have established R&D organizations in Shanghai and Jiangsu with groups of top designers, medium-and-high technicians and managers.
We can develop new items according to your requirements. OEM orders are welcome. Since the establishment, relying on excellent quality, acceptable prices, top service, advanced professional experience and constant technical innovation, we lead the balcony glazing system.
Over the past years, our company has provided more than one million square meters of frameless windows for customers from all over the world. So far, we have exported our products to Chile, Lebanon, South Africa, Germany, Russia, Argentina and Malaysia.
Please feel free to contact us for further information.
