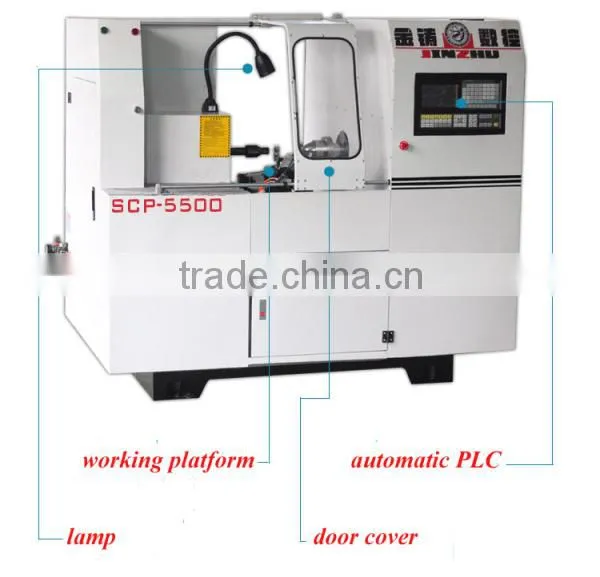

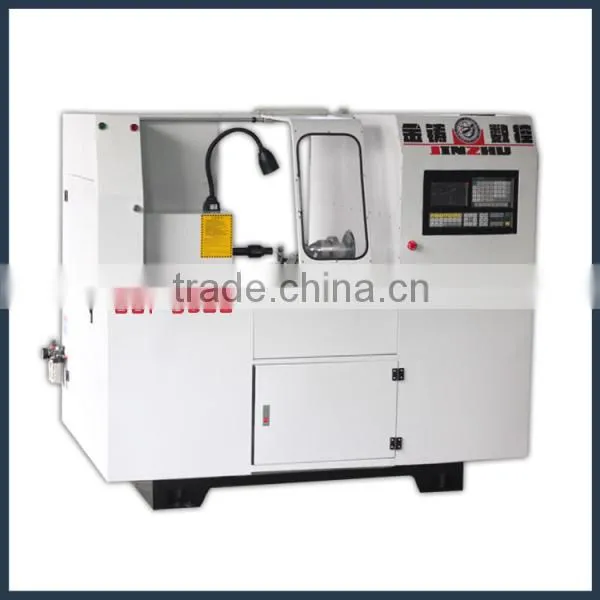

Item: cnc metal spinning machine
this cnc metal spinning machine main use for the circle diameter less than 500mm.
preformance introduction:
1. equipped with 2 spinning turrets with rollers.
2. two rollers process at the same time.
3. optional to choose one station processing or both station processing.
4. optional to choose 2 turrets work in dislocation or simultaneously. high efficiency and good stability.
5. through the operation of the system panel and data interface input and modify the processing procedures.
6. equipped with servo control system, can realize processing of positive and negative rotation with Gradual thickening.
7. apply high precision wire rod, servo motor and drive unit, etc. high precision and more stable performance.
Technical parameter:
Aluminum circle diameter |
Max Φ500mm |
Aluminum circle height |
0.4-3.0mm |
Product height |
Max 300mm |
Spindle center height |
300mm |
Axial stroke |
500mm |
Radial stroke |
400mm |
The tail against stroke |
300mm |
accuracy |
0.01mm |
input |
Touch screen |
voltage |
AC 380V 3Phase |
Atmospheric pressure |
0.5Mpa |
Weight |
1500kg |
Machine size |
2300*1300*1730mm |

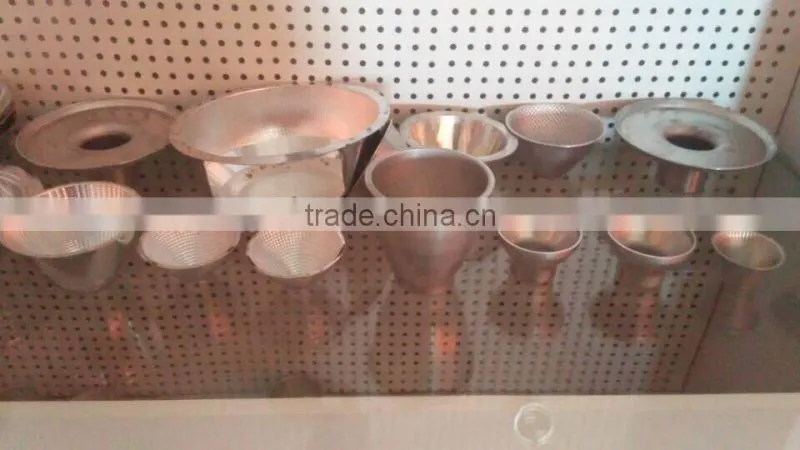

This machine applies to aluminum plate, copper plate, iron plate, stainless steel palte and steel plate spinnning processing of lighting, cooker, art and craft.

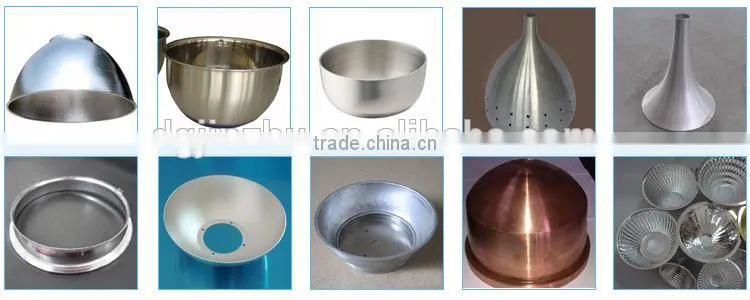

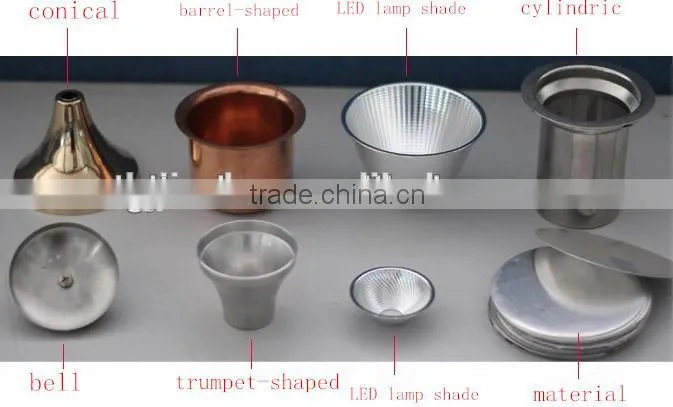

Mainly on mass production of brrel-shape, cone type, parabolic, horn type, projectile product.
1. we can help you train your staff.
2. we will send engineer to help you install the machine, and guide your staff on site until your qualified products.
3. the warranty period is one year, if you have any question in using the machine, you can call us or send email, and we will solve the problem for your asap.
As a professional manufacturer of the polishing machine, grinding machine, CNC spinning machine and so on metal surface treatment machine for more than years in China.
If you have any question about this cnc metal spinning machine, please feel free to contact me.
