Galvanized Steel Wire /Stay Wire/Earth Wire

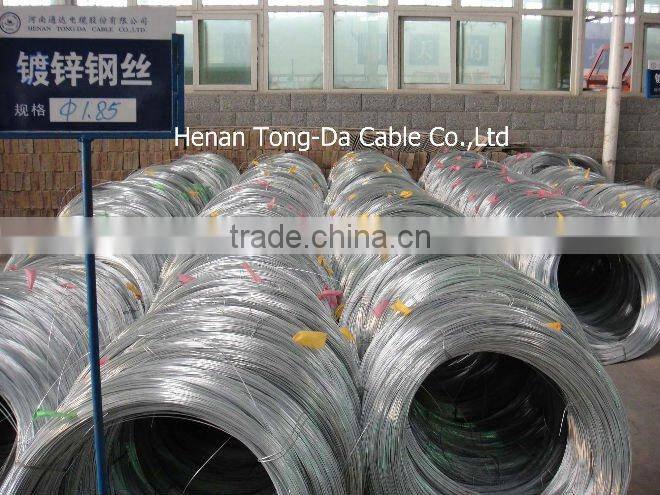

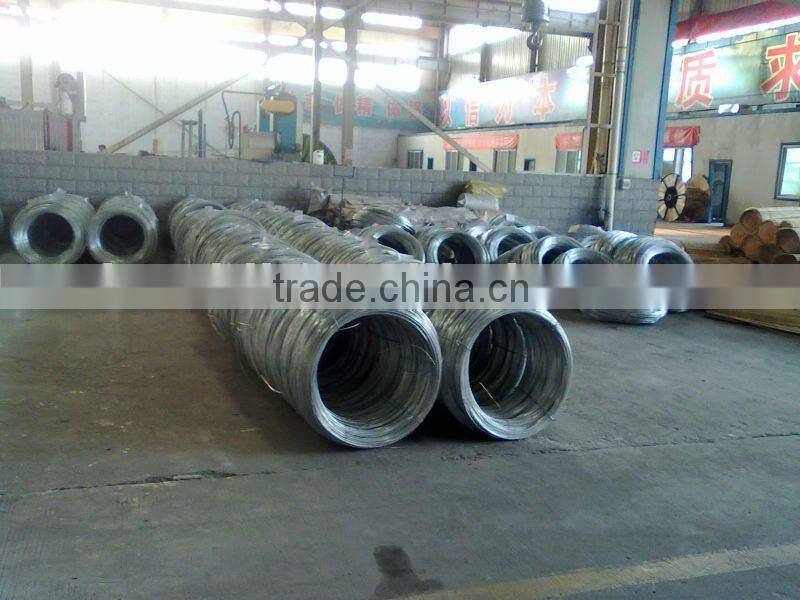

Name: Galvanized Steel Wire /Stay Wire/Earth Wire
Brand: HNTDDL
SKU: 132283349
Availability: InStock

Negotiable MOQ: 1 Ton (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Henan, China

Brand Name:

HNTDDL

Model Number:

Galvanized Steel Wire

Henan Tong-Da Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name HNTDDL

Model Number Galvanized Steel Wire

Type High Voltage

Application Overhead

Conductor Material Other, Steel

Jacket Other

Galvanized steel wire for ground wires, steel core for ACSR, stay wires, Guy wires, messengers.

Specification:

1× 7-4.80mm-12.60mm
1× 19-9.00mm-15.00mm

No. of wires	Steel wire dia.	Dia.	section area	Nominal tensile streng of Gal.steel wire (Mpa)									Approximate Weight of stand
				1175	1270		1370		1470		1570
				Breaking strength of strand
	mm	mm	mm2	kN≥									kg/100M
1×7	1.60	4.8	14.07	16.53		17.87		19.28		20.68	22.09	11.17
	1.80	5.4	17.81	20.93		22.62		24.40		26.18	27.96	14.14
	2.00	6.0	21.99	25.84		27.93		30.13		32.32	34.52	17.46
	2.20	6.6	26.60	31.26		33.78		36.44		39.10	41.76	22.77
	2.30	6.9	29.08	34.17		36.93		39.84		42.75	45.66	23.09
	2.60	7.8	37.17	43.60		47.20		50.92		54.63	58.30	29.51
	2.90	8.7	46.24	54.33		58.72		63.36		67.97	72.60	36.71
	3.00	9.0	49.48	58.14		62.84		67.79		72.74	77.68	42.38
	3.20	9.6	56.30	66.15		71.50		77.13		82.76	88.39	44.70
	3.50	10.5	67.35	79.14		85.85		92.27		99.00	105.74	53.48
	3.80	11.4	79.39	93.28		100.82		108.76		116.70	124.64	63.04
1×19	1.60	8.0	38.2	44.88		48.51		52.38		56.15	59.97	30.40
	1.80	9.0	48.35	56.81		61.40		66.24		71.07	75.91	38.49
	2.00	10.0	59.69	70.14		75.81		81.77		87.74	93.71	47.51
	2.20	11.6	72.22	84.86		91.71		98.94		106.16	113.39	56.69
	2.30	11.5	78.94	92.75		100.25		108.15		116.04	123.94	62.84
	2.60	13.0	100.88	118.53		125.12		138.20		148.29	158.38	80.30
	2.90	14.5	125.50	147.46		159.38		171.93		184.48	197.03	99.90
	3.00	15.0	134.30	157.80		170.56		183.99		197.42	210.85	105.43
	3.20	16.0	152.81	179.55		194.06		209.35		224.63	239.91	121.64
