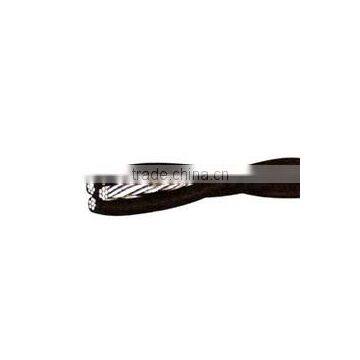

Help CenterDuplex Service Drop(ABC Cable) Alloy for ASTM Standard
Related Products
-
Aerial Bundled Cable/service Drop(ABC Cable) IEC SeizesNegotiableMOQ: 1 Kilometer -
Quadruplex+lighting Core ABC Cable for France SizesNegotiableMOQ: 1 Kilometer
-
Quadruplex Service Drop(ABC Cable) Alloy, Aerial Bunded Cable(ABC Cable)NegotiableMOQ: 1 Kilometer
-
ABC Cable 600VNegotiableMOQ: 1 Kilometer
-
Aerial Bundled Cable (ABC) Quadruplex Service Drop 0.6/1KVNegotiableMOQ: 1 Ton
Specifications
Voltage: 0.6/1 KVConductor: Aluminum conductor, aluninum alloy conductor, AAC, ACSR, AAAC,
Insulation: HDPE, XLPE, PVC
1). Standard: IEC60502, NF C33-209, ASTM,BS
Rated voltage: 0.6/1kV
2). Specification: Concentric strand aluminum wires as phase conductor; AAAC(all aluminum alloy conductors) or ACSR(aluminum conductor steel reinforced) as messenger (Neutral) core; Phase conductor is insulated by XLPE or HDPE or PVC.
3). Application: The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204, ANSI/ICEA S-76-474
We can also manufacture ABC cable according to customer's special requirements
4)PE or XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
To be used at cotages of 0.6kV upto 10kV phase-to-phase or less and at conductor temperatures not to exceed 75 degree for polyethylene insulated conductors or 90 degree for crossliked polyethylene(XLPE) insulated conductors.
It meets or exceeds the following specifications:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)
4. Concentric-Lay-Stranded 6201-T81 Conductors
5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
