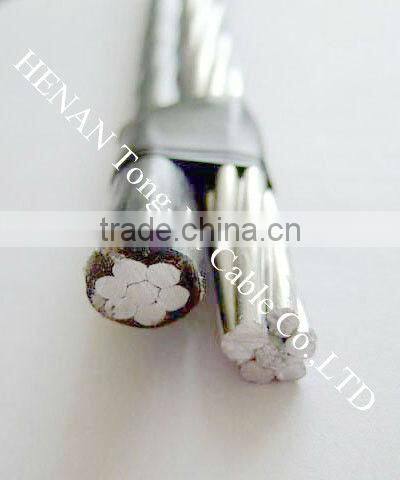

Help CenterDuplex Service Drop -Aluminum Conductor
Related Products
-
Aerial Bunded Cable (ABC Cable)NegotiableMOQ: 500 Meters -
ABC CABLE Quadruplex Service Drop AAC AAAC ACSR Cable 0.6/1kVNegotiableMOQ: 1 Kilometer
-
ABC CABLE Duplex Service Drop AAC AAAC ACSR Cable 0.6/1kVNegotiableMOQ: 1 Kilometer
-
ABC CABLE Quadruplex Service Drop AAC AAAC ACSR Cable 0.6/1kVNegotiableMOQ: 1 Kilometer
-
Quadruplex Service Drop AAC AAAC ACSR Cable 0.6/1kVNegotiableMOQ: 1 Kilometer
Specifications
We have attained ISO9001 & ISO14001 certificates.we can produce against the customer's different requests.ABC(Aerial Bundle Cable)
1). Standard: IEC60502, NF C33-209, GB 12527-90
Rated voltage: 0.6/1kV
2). Specification: Concentric strand aluminum wires as phase conductor; AAAC(all aluminum alloy conductors) or ACSR(aluminum conductor steel reinforced) as messenger (Neutral) core; Phase conductor is insulated by XLPE or HDPE or PVC.
3). Application: The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.
The basic construction is as follows:
3 power cores consisting of standard aluminium conductors, insulated with XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
To be used at voltage of 600V phase-to-phase or less and at conductor temperatures not to exceed 75 centigrade for polyethylene insulated conductors or 90 centigrade for crossliked polyethylene(XLPE) insulated conductors.
It meets or exceeds the following specifications:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.
5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
