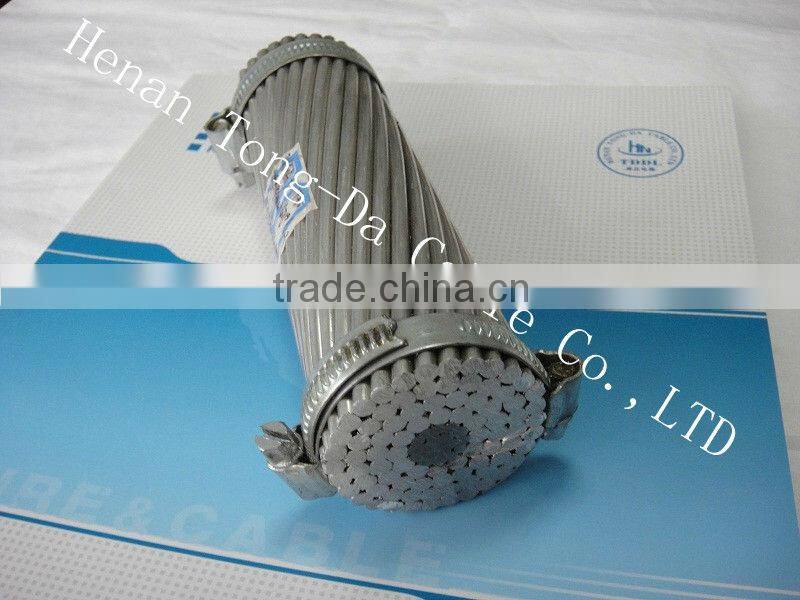

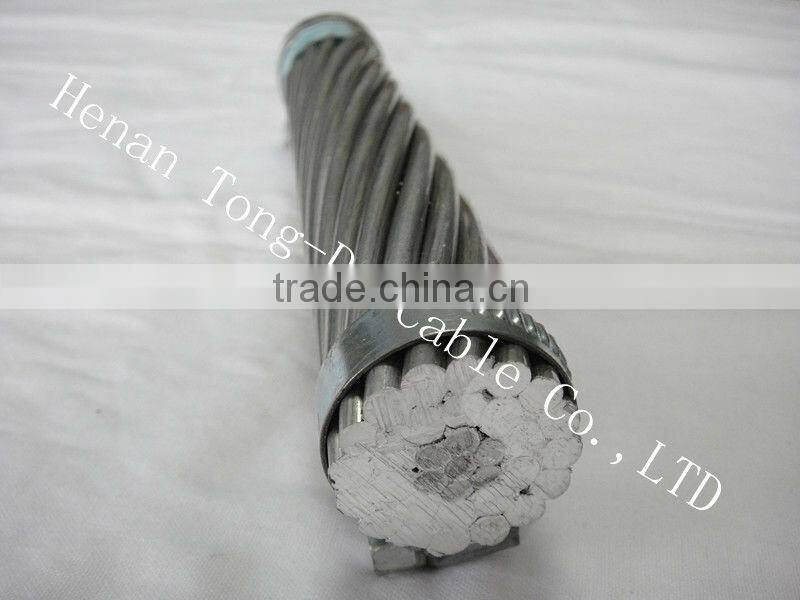

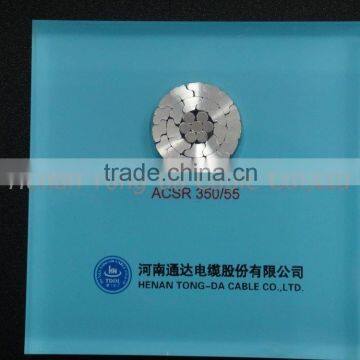

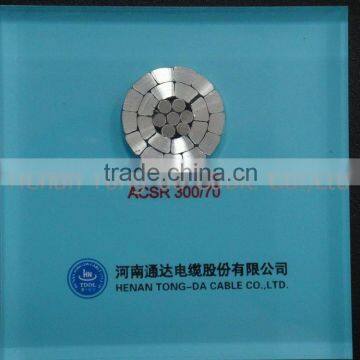

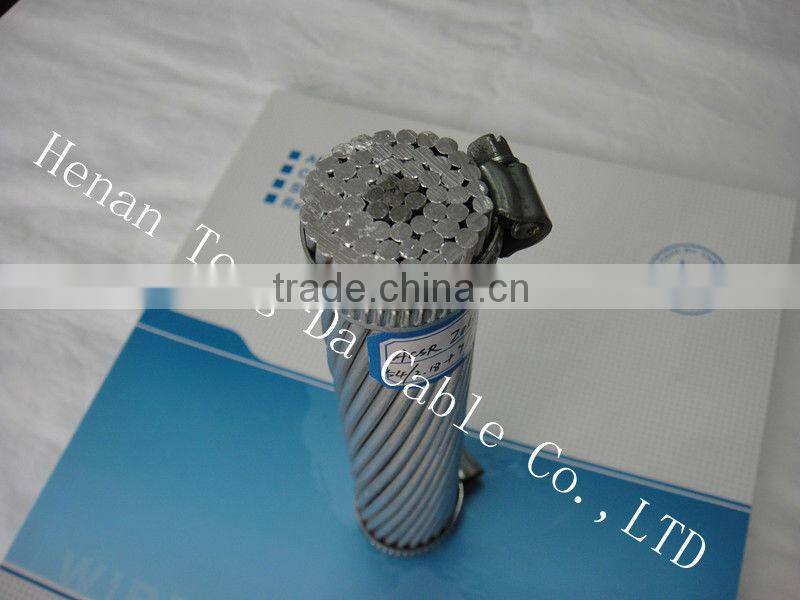

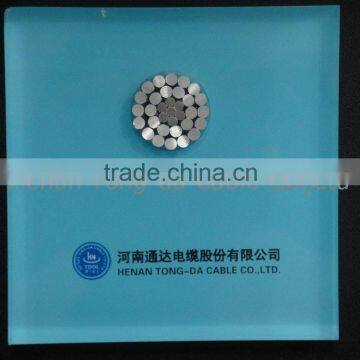

Overhead ACSR Conductor for distribution line
Certificate:ISO 9001:2008 ISO 14001:2004
Standard:IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182, JIS C3110, NF C34-120,GB/T 1179-2008
Brief Description:
ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium (E.C. GRADE).
ACSR CONDUCTOR is available in a wide range of steel varying from as low as 6% to as high as 40 %.
The higher strength ACSR CONDUCTORS are used for river crossings, overhead ground wires, installations
involving extra long spans etc.. Against any given resistance of conductor,
ACSR CONDUCTORS may be manufactured for having a wide range of tensile strength as per requirement.
The principal advantage of these conductors are high tensile strength and light weight with longer spans as well as
with lesser supports. Due to the greater diameter of ACSR CONDUCTORS a much higher corona limit can be
obtained causing big advantages on high as well as extra high voltage overhead lines.
Applications:
Used as bare overhead transmission cable and as primary and secondary distribution cable.
ACSR CONDUTOR offers optimal strength for line design. Variable steel core stranding enables desired strength to
be achieved without sacrificing ampacity. ACSR CONDUTORS are used extensively for overhead ground wires,
river crossings etc. These ACSR CONDUTORS are available with us in various types for meeting the exact requirements
of the clients.
Construction:
Aluminum alloy 1350-H19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B,or C galvanizing;
"aluminized" aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the core or infusion of the
complete cable with grease.
Package:In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.Welcome your request for any quotations!
|
Code name |
Area |
Stranding and wire diameter |
Approx. overall diameter |
Weight |
Nominal breaking load |
|
||||||||||
Nominal |
Al |
Steel |
Total |
Al |
Steel |
|
Al |
Steel |
Total |
|
|
|||||
|
AWG/ MCM |
mm2 |
mm2 |
mm2 |
mm |
mm |
mm |
kg/km |
kg/km |
kg/km |
kN |
Ohm/km |
||||
GROUSE |
80 |
40.52 |
14.13 |
54.65 |
8/2.54 |
1/4.24 |
9.32 |
112 |
110 |
222 |
23.6 |
0.7115 |
||||
PETREL |
101.8 |
51.61 |
30.06 |
81.67 |
12/2.34 |
7/2.34 |
11.71 |
143 |
235 |
378 |
41.75 |
0.5613 |
||||
MINORCA |
110.8 |
56.13 |
32.77 |
88.90 |
12/2.44 |
7/2.44 |
12.22 |
156 |
256 |
412 |
51.25 |
0.5161 |
||||
LEGHORN |
134.6 |
68.19 |
39.81 |
108.00 |
12/2.69 |
7/2.69 |
13.46 |
189 |
311 |
500 |
61.7 |
0.4248 |
||||
GUINEA |
159 |
80.58 |
46.97 |
127.55 |
12/2.92 |
7/2.92 |
14.63 |
223 |
367 |
590 |
72.55 |
0.3595 |
||||
