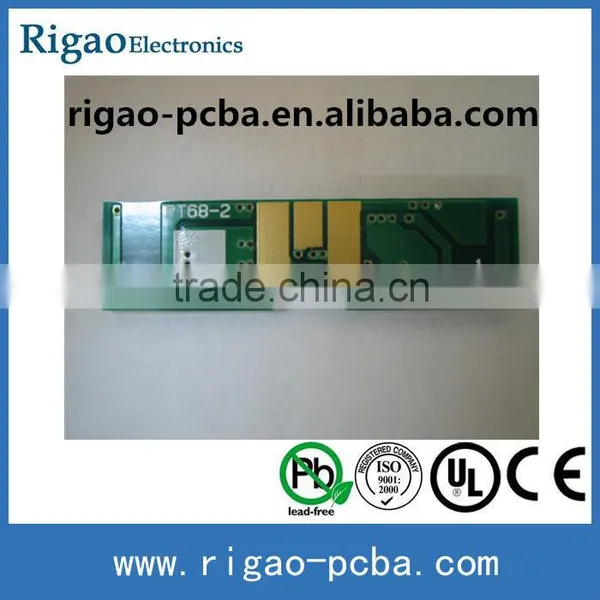

usb flash drive pcba/pcb mount potentiometers and pcb laminate

Specifications

usb flash drive pcba/pcb mount potentiometers and pcb laminate
1,No MOQ
2,OEM SMT&DIP Service
3,Fast Sent
4,Low Cost





Application

Products are applied to a wide range of High-tech industries such as: LED,

telecommunication, computer application, lighting, game machine, industrial

control, power,automobile and high-end consumer electronics, ect.

By unremitting work and effort to the marketing, products exports to American,

Canada, Europe counties,Africa and other Asia-pacific countries.



Advantage

1. PCB is no MOQ/MOV.

2. PCB which have the comprehensive quality control system.

3. PCB with good price.

4. PCB with quick turn delivery time from 48hours.

5. PCB with certification (ISO/UL/RoHS/SGS).

6. PCB with many years experience in exporting service.

7. PCB from factory directly.

8. PCB with high quality. strict test through AOI (Automated Optical Inspection),

    QA/QC, Flying Proble Test, E-test fixture.



Detailed Specification

1	Layer	1-22 layer
2	Material	FR4, CEM1, Aluminium Base, Cooper Base, High frequency material, etc.
		Thick copper foil,94-V0 (HB), PI Material, Roger,High TG:SL S1000-2,ITEQ:IT180.
3	Board thickness	0.2mm-7mm
4	Max.finished board side	610mm*1200mm
5	Min.drilled hole size	0.25mm
6	Min.line width	0.075mm(3mil)
7	Min.line spaceing	0.075mm(3mil)
8	Surface finish/treatment	HASL,HASL lead free,OSP,Immersion tin, Immersion Gold, etc.
		Immersion Silver/Gold Finger ,Gold Plating, Selective OSP Immersion Gold
9	Copper thickness	0.5-4.0oz
10	Solder mask color	green/black/white/red/blue/yellow
11	Inner packing	Vacuum packing,Plastic bag
12	Outer packing	Standard carton packing
13	Hole tolerance	PTH:±0.076,NTPH:±0.05
14	Profiling Punching	Routing,V-CUT,Beveling
15	Assembly Service	Providing OEM service to all sorts of printed circuit board assembly



Shipping



	2-4 work days
	2-4 work days
	3-5 work days
	3-5 work days
	5-8 work days
	8-15 work days



What products Rigao can supply?

     Rigao supplies PCB, PCBA, FPC and assembly.

What kind of material Rigao can produce with?

     Rigao offers CEM1, PI, CEM3, FR4, Aluminum substrate, etc.

What kind of surface finish Rigao can make?

     Rigao can make HASL, OSP, lead/lead free, gold finishing.





Our Mission:

1. Credit on Customers

2. Focus on Quality

3. Rely on Management

4. Keen on Improvement



Requested information for PCB Assembly:

1. Gerber file & BOM list if possible

2. PCBA Samples

3. Testing procedure & Testing fixtures

4. Order Quantity







  If you are interested in our products, pls feel free to contact me. Thank you.
