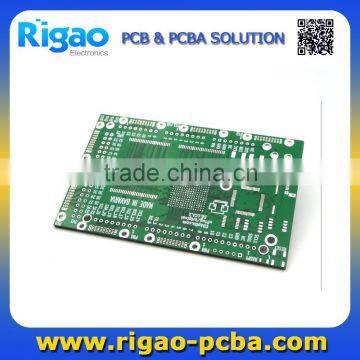

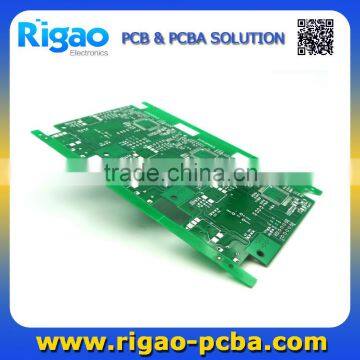

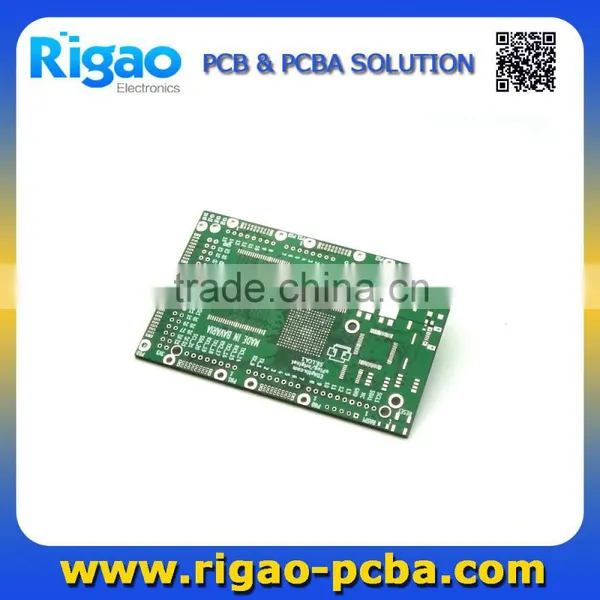

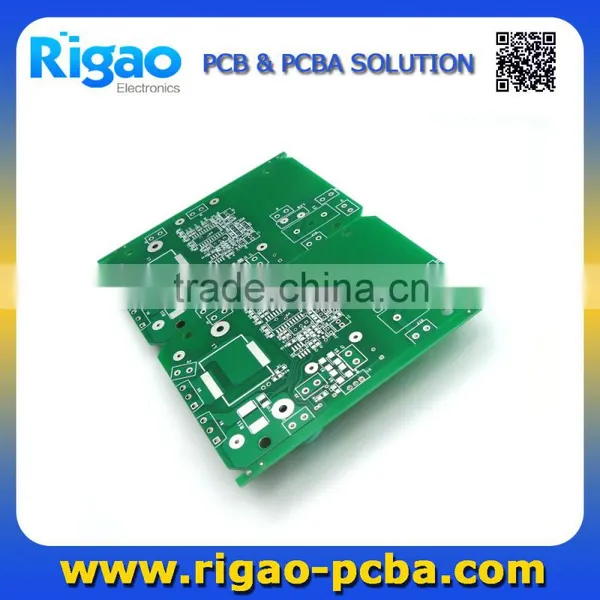

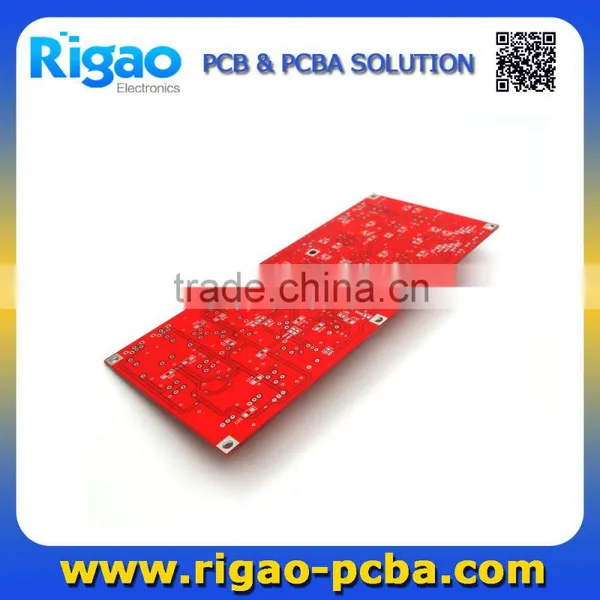

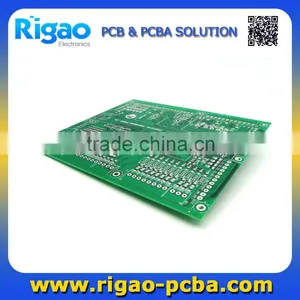

prototype pcb boards for power bank prototype pcb boards for power bank
1.PCB&PCBA Service
2.UL,SGS,Rohs Certificated
3.OEM PCBA are welcome
4.Quick turn pcb and pcb assembly
5.PCBA Leadtime:15 days
6.1-28 layers
PCB Assembly Specification
| Item | Capability |
| Min Annular Ring | 0.076mm(3mil) |
| Min Finish Hoke Size | 0.2mm |
| Min Solder Mask Tolerance | ±0.076mm(3mil) |
| Punching Outline Tolerance | ±0.10mm |
| Min Hole Size | 0.2mm(8mil)-Mechanical drill |
| 0.075mm(3mil)-Laser drill | |
| Min Trace/Space | 0.1mm(4mil) |
| Board Thickness | 0.2-6.4mm |
| Flame Rating | 94v-0 |
| Peel Strength | ≥12.3n/cm |
| Layer | 2-58L |
| Working Panel Size | 1150mm* 560mm |
| Quality Standards | IPC-A-600G,IPC-TM-650,IPC-6012B |
| Lamination Evenness | ±0.013mm |
| Min Core Thickness | 0.076mm |
| Drilling Accuracy | ±0.05mm |
| PTH Hole Diameter Tolerance | ±0.05mm |
| Aspect Ratio | 18:01:00 |
| Layer to Layer Registration | ≤0.076mm |
| Surface Finishing | HASL,Imersion Gold,OSP...... |
Welcome To Rigao Electronics
pcb board and pcb assembly from Shenzhen Rigao
Funded in 2008, Rigao Electronics Co., Ltd, is privately held Shenzhen corporation dedicated to
providing electronic engineering and manufacturing services. After several years’ development,
Rigao has become a rapidly growing worldwide provider of solution in three principle areas: printed
circuit boards, PCB assembly and components procurement. As an experienced PCB and PCBA
manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We
are able to guarantee a complete service with comprehensive technical backup, offering a cost
advantage and scheduled delivery.
