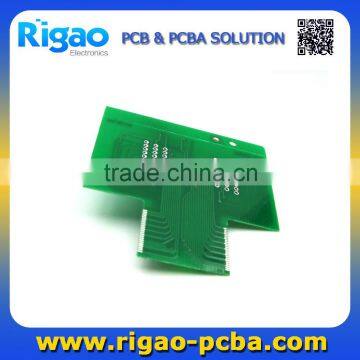

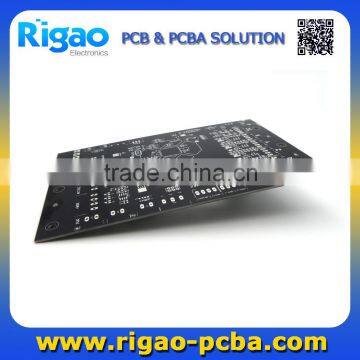

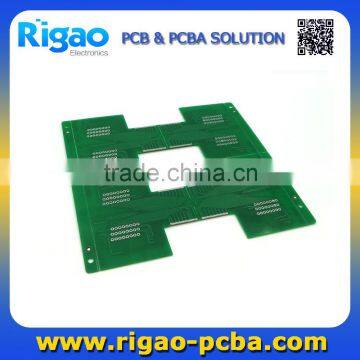

multilayer circuit board prototype pcb fabrication
1.Layer: 1-30 layer
2Material: FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum
3.Board thickness: 0.2mm-7mm
4.Max.finished board side: 500mm*500mm
5.Min.drilled hole size: 0.25mm
6.Min.line width: 0.075mm(3mil)
7.Min.line spacing: 0.075mm(3mil)
8.Surface finish/treatment: HALS/HALS lead free,Chemical tin,Chemical Gold, Immersion gold Immersion Silver/Gold,Osp,Gold Plating
9.Copper thickness: 0.5-4.0oz
10.Solder mask color: green/black/white/red/blue/yellow
11.Inner packing: Vacuum packing,Plastic bag
12.Outer packing: Standard carton packing
13.Hole tolerance: PTH:±0.076,NTPH:±0.05
14.Certificate: UL,ISO9001,ISO14001,ROHS,CQC
15.Profiling Punching: Routing,V-CUT,Beveling
16.Assembly Service: Providing OEM service to all sorts of printed circuit board assembly
Welcome To Rigao Electronics
pcb board and pcb assembly from Shenzhen Rigao
ShenZhen Rigao Electronics Co., Ltd has been taking the corporate philosophy of “Be superior in
quality and efficiency, be united and conscientious, be responsible, be diligent”, always adhering to
the brand sstrategy of “Foster brand, create brand, and promote brand through brand” and the
corporate spirit of “Quality, Brand, Profession, and Dedication”, taking steps toward conceptual
innovation, technological innovation and management innovation to constrantly meet the
requiremtns of the repid development of PCBs and PCBA.
1.Gerber Files
2.BOM Files(components list)
3.Quantity
4.Test method for PCBA
1. What kind of payments do you accept ?
A. T/T, Western Union, Paypal,...
2. What kind of PCB file format I need to submit for the production?
A. Gerber files and BOM
3.Can you produce it for me,if we dont have the PCB file/Gbr file, only a sample?
A. Send us the sample, and we will work out the gerber files and clone the pcb for you.
4.Which countries have you worked with?.
A: We have built cooperation with customers from all over the world, mostly America and Europe
5.Are my PCB files safe when I submit them to you for manufacturing?
A:We respect customer's copyright and will never share these files with any other 3rd parties without your permission.
