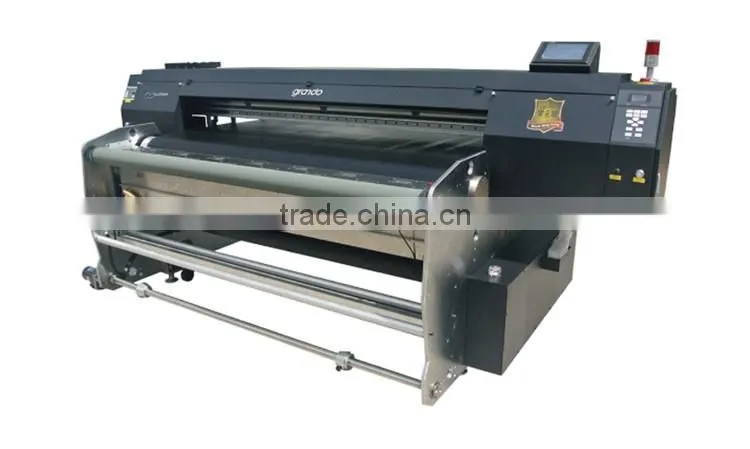

1.8m large format digital textile printer
CHAMPION OF STABLE---------

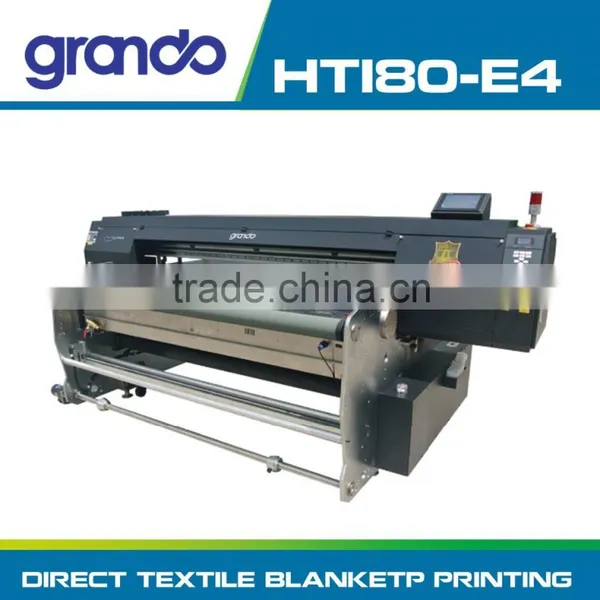

----------- GD-HT180E4
PRINTER INTRODUCTION
FEATURE
Piezoelectric Print Head Variable Ink Droplet
With double DX5 print heads of parallelogram layout, as well as 1440 nozzles for each print head, performs excellently in higher speed and high quality output in 1440dpi.
Min 3.5pl Variable Ink Droplet
Adopts media fixing device to ensure smooth media feeding and rolling, at the meanwhile, the rolling bar is djustable anytime, and the media tension bar enables media to enter rolling bar smoothly and completely by enhancing the tension of media.
User Friendly Mechanical Design
Firm structure enables high speed printing without shake. Adjustable printer stand and feet ensures printer level. Meanwhile, emergency stop button and anticollision device assist customer to make sure printer’s stablity and performance in emergency situations.
Stable Bulk System Ensures Amazing Printing Speed
Ink cartridges of clamping slot type is easy to install and replace, bulk system ensures continuous smooth ink flow and stable printing. Besides, PWC device assists the bulk system to protects the nozzles from being blocked.
High Stablity, High Durablity
All-steel struction, igorous and precise manufacturing process even for a small screw, together with international brands such as THK, ensure the stablity and durablity.
| Model | GDHT180E4 | |
| Print Head | Four Heads | |
| Priting Technology | Piezoelectric Inkjet | |
| Media Width | 210-1800mm-1.8M | |
| Media Width | Type | Roll or Sheet |
| Thickness | Maximum 1.5mm | |
| Roll Weight | 50kg | |
| Ink Cartridge | Type |
Acid ink Pigment ink Active ink Disperse ink |
| Capacity | 1500ml ink bottle | |
| Color | Double 4-Color (CMYK) | |
| Ink Supply | Continuous Ink Supply Cartridge | |
| Color Gamut Performance | 1670 Million Color | |
| Media Control | Automatic Feeding System and Sheet Cutter | |
| Media Sensors | Paper Sensor & Width Sensor | |
| Print Head Cleaning | Automatic Cleaning and manual cleaning | |
| Programming Language | RD-RTL,RD-PJL | |
| Interface | USB2.9/HIUSB | |
| Power Requirement | During Operation | 100V to 240V±10%,50/ 60 Hz |
| Sleep Mode | 100V to 240V±10%,50/ 60 Hz | |
| Power-saving Function | Automatic Power Saving | |
| Acousic Noise Leve | During Operation | ≤65 dB (according to ISO 7779) |
| During Standby | ≤40 dB (according to ISO 7779) | |
| Package Dimension (with stand) | 3420mm(W)x2200mm(D)x1780mm(H) - 1.8M Printer | |
| Weight(with stand) | 2000kg ( 1.8M ) | |
| Power Consumption | ≤1500VA | |
| Environment | Power On | Temperature: 20 to 32°C Humidity: 35 to 80%RH (non-condensing) |
| Power Off | Temperature: 5 to 40°C Humidity: 20 to 80%RH (non-condensing) | |
| Accessories | Power Cord, Drain Bottle, Manual | |
APPLICATION
FACTORY SHOW
OUR SERVICE
24-Hour Online Service
Pre-Sales Service After-Sales Service
*Inquiry and consulting support * Training how to install the machine and training use
*Sample testing support * Engineers availa to service machine overseas
* View our factory * One year warranty
PACKING & DELIVERY
|
Packing |
|
Size |
3420mm(W)*2200mm(D)*1780mm(H) |
|
Weight |
2000kg |
|
Details |
on wooden case |
|
