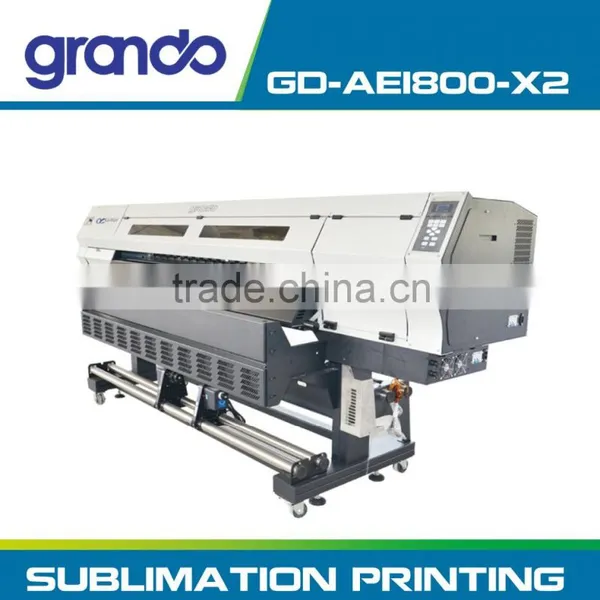

Luxurious1.8m Roll to Roll Sublimation With Double DX5 Head

Luxurious1.8m Roll to Roll Sublimation With Double DX5 Head thumbnail-1
Luxurious1.8m Roll to Roll Sublimation With Double DX5 Head photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai SD Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Shanghai, China
Brand Name Grando
Model Number GD-AE1800-X2
Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
Automatic Grade Automatic
Voltage 110V/220V
Dimensions(L*W*H) 3200*700*1400
Weight 500KG
Certification CE Certification
After-sales Service Provided Engineers available to service machinery overseas

ECO SOLVENT PRINTER---------

----------- GD-AE1800-S2



luxurious1.8m roll to roll Sublimation with Double DX5 Head





 PRINTER INTRODUCTION



---  Focus on both of speed and quality
---  Max 1.8m printing width
---  Full support of top R&D group
---  2 Epson DX5 print head

luxurious1.8m roll to roll Sublimation with Double DX5 Head




 FEATURE



Piezoelectric Print Head Variable Ink Droplet


With double Epson DX5 print heads of  parallelogram layout, as well as 1440 nozzles for each print head, performs excellently in higher speed and high quality output in 1440dpi.


luxurious1.8m roll to roll Sublimation with Double DX5 Head



Min 3.5pl Variable Ink Droplet

With excellent function to print with different ink droplet during



each printing, as well as the minimum 3.5pl ink droplet, will performs smooth and bright output.

luxurious1.8m roll to roll Sublimation with Double DX5 Head

Perfect Experience of Media Feeding & Rolling system

Adopts media fixing device to ensure smooth media feeding and rolling, at the meanwhile, the rolling bar is djustable anytime, and the media tension bar enables media to enter rolling bar smoothly and completely by enhancing the tension of media.





luxurious1.8m roll to roll Sublimation with Double DX5 Head



User Friendly Mechanical Design

Firm structure enables high speed printing without shake. Adjustable printer stand and feet ensures printer level. Meanwhile, emergency stop button and anticollision device assist customer to make sure printer’s stablity and performance in emergency situations.



luxurious1.8m roll to roll Sublimation with Double DX5 Head



Stable Bulk System Ensures Amazing Printing Speed


Ink cartridges of clamping slot type is easy to install and replace, bulk system ensures continuous smooth ink flow and stable printing. Besides, PWC device assists the bulk system to protects the nozzles from being blocked.



luxurious1.8m roll to roll Sublimation with Double DX5 Head



High Stablity, High Durablity


All-steel struction, igorous and precise manufacturing process even for a small screw, together with international brands such as THK, ensure the stablity and durablity.

luxurious1.8m roll to roll Sublimation with Double DX5 Head


SPECIFICATIONS

Model GD-AE1800-X2
Printing Method Piezoelectric Print Head
Print Head Double DX5 Head
Ink Subliamtion Ink
Max Printing Width 184cm
Printing Resolution 540dpi,720dpi,1440dpi
Printing Mode 2psss,3pass,4pass,6pass,8pass,12pass
Printing Speed 64m²/h,44m²/h,32m²/h,22m²/h,16m²/h,11m²/h
Ink Capacity 1000cc per color
Heating System Three Phase Yes
Dry System Standard intelligient infrared ay heating/fan system
Automatic Media Feeding/Rolling System Standard Configuration
Environment Temperature 15-35℃   Relative Humidity 40%-65%
Dimension(W*D*H)Weight 3200*700*1400/500KG



 APPLICATION



luxurious1.8m roll to roll Sublimation with Double DX5 Head



 FACTORY SHOW



 luxurious1.8m roll to roll Sublimation with Double DX5 Head



OUR SERVICE



24-Hour Online Service



luxurious1.8m roll to roll Sublimation with Double DX5 Head



Pre-Sales Service                                                            After-Sales Service

*Inquiry and consulting support                                                    * Training how to install the machine and training use

*Sample testing support                                                                * Engineers availa to service machine overseas

* View our factory                                                                             * One year warranty



PACKING & DELIVERY



 luxurious1.8m roll to roll Sublimation with Double DX5 Head

Packing

Size

3200mm(W)*700mm(D)*1400mm(H)

Weight

500kg

Details

 on wooden
