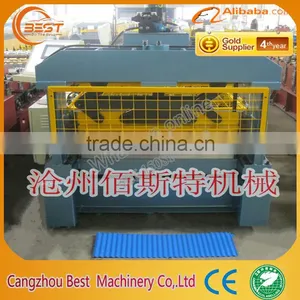

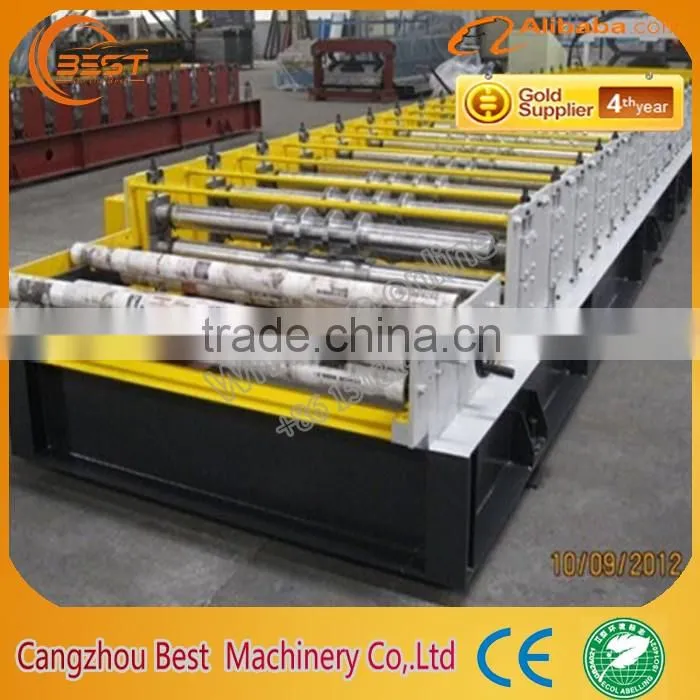

Prefab Houses Making Cutting Machine
Working flow:
Decoiler------guiding-----------roll forming------------cut to length-----output table

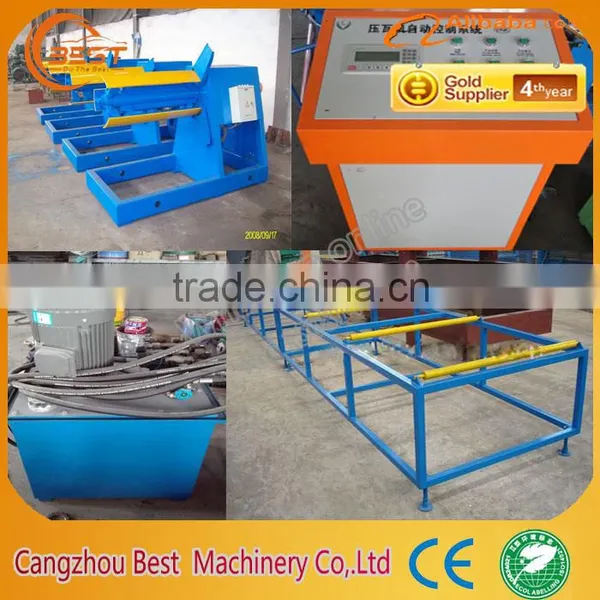

Machine components:
No. |
Name |
Qty |
1. |
De-coiler |
1 Set |
2. |
Roll Forming Machine |
1 Set |
3. |
Hydraulic Cutting Device |
1 Set |
4. |
PLC Control Box |
1 Set |
5. |
Output table |
1 Set |
Technical description:
Material thickness |
0.3-0.8mm |

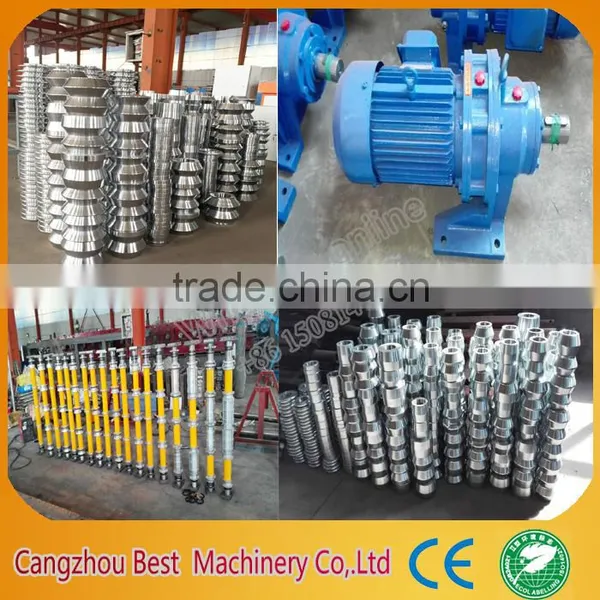

Diameter of shaft(solid shaft) |
70mm |
Roller |
11steps |
Material of shaft (solid shaft) |
(high grade) 45# Steel, quenching and tempering treatment |
Material of roller |
45# steel polished and coated with chrome HRC55-60° |
Reducer |
8# cycloid reducer (high grade) |
Power of main motor |
3KW |
Cutting |
hydraulic cutting after roll forming |
Hydraulic power |
3kw |
Driven |
1 inch chain |
Voltage |
380V/50Hz/3phase |
Control system |
PLC Frequency Control System with touch screen |
Detailed photos:
We do Best, About CHBEST factory
Cangzhou Best Machinery Co,.LTD produce all kinds of roll forming machines,We Choose the best material and components, and adopting Shanghai’s technology, with 20 year’s experience.
Now the machine working speed can reach 50m/min
Our main products: CZU purlin roll forming machine, deck floor roll forming machine,door series roll forming machine, cable tray roll forming machine, roof and wall roll forming machine, light steel roll forming machine, water channel roll forming machine, glazed tile /ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel roll forming line, rack and fence roll forming machine and auxiliary equipments.
We do exquisite:
Working flow:Decoiler-----feeding-----guiding----- leveling ------roll forming--------punching------ cutting----output table
