Glazed Roofing tile Roll Forming Machine
Glazed Roofing tile Roll Forming Machine Working flow:
Decoiler-------guiding------roll forming------------cut to length-----output table
Glazed Roofing tile Roll Forming Machine components:
No. |
Name |
Qty |
1. |
De-coiler |
1 Set |
2. |
Roll Forming Machine |
1 Set |
3. |
Hydraulic Cutting Device |
1 Set |
4. |
PLC Control Box |
1 Set |
5. |
Output table |
1 Set |
Glazed Roofing tile Roll Forming Machine Technical description:
Material thickness |
0.3-0.8mm |
Diameter of shaft(solid shaft) |
70mm |
Roller |
11steps |
Material of shaft (solid shaft) |
(high grade) 45# Steel, quenching and tempering treatment |
Material of roller |
45# steel polished and coated with chrome HRC55-60° |
Reducer |
8# cycloid reducer (high grade) |
Power of main motor |
3KW |
Cutting |
hydraulic cutting after roll forming |
Hydraulic power |
3kw |
Driven |
1 inch chain |
Voltage |
380V/50Hz/3phase |
Control system |
PLC Frequency Control System with touch screen |

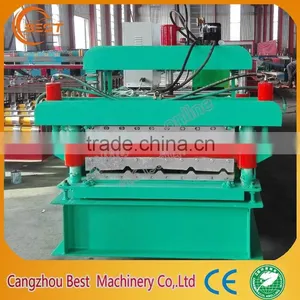

Glazed Roofing tile Roll Forming Machine PICS
Contact me by WHAT'S APP:0086-15081471140 or send email to lily20130102 .Your satisfaction and recognition is the goal of our efforts!
