We do Best, About CHBEST factory

Cangzhou Best Machinery Co,.LTD produce the best quality and international standard color steel forming machine and speical cold roll forming machine.

We Choose the best material and components, and adopting Shanghai’s technology, with 20 year’s experience.

Our main products: CZU purlin roll forming machine, deck floor roll forming machine,door series roll forming machine, cable tray roll forming machine, roof and wall roll forming machine, light steel roll forming machine, water channel roll forming machine, glazed tile /ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel roll forming line, rack and fence roll forming machine and auxiliary equipments.

We do exquisite:

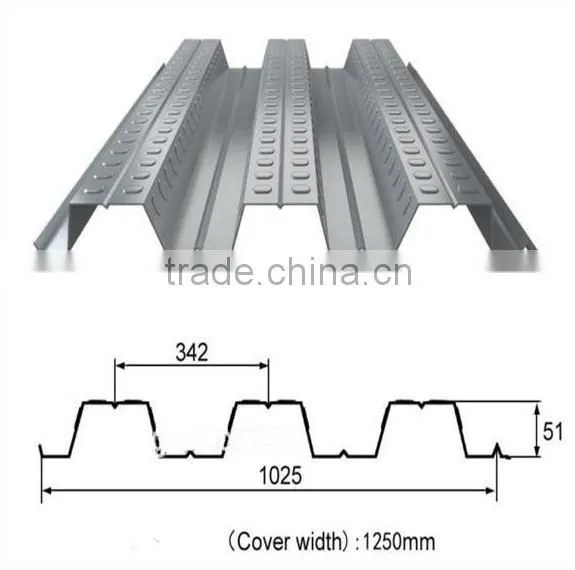

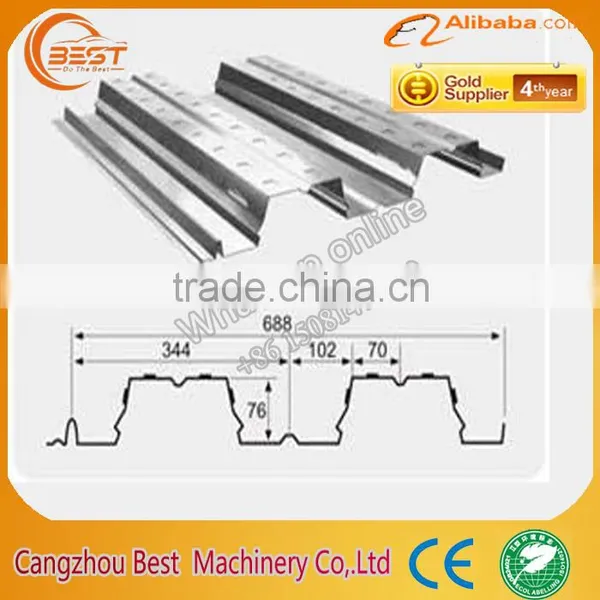

profile drawing:

Working flow:

Decoiler------guiding------leveling------roll forming-------punching-----cut to length-----output table

Machine components:

De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

output table-----------------------1set

Techical description:
1)Decoiler
 Weight capacity of decoiler : 5.0T
 Inner diameter:≤508mm
 Outer diameter:≤3000mm

2)Forming Device


3)Rolling Forming System
It can change C Z U shape automaticly and different size you just input data in PLC.
Main motor power: 18.5KW
Speed of forming: 8-12m/min
Material of roller : Gcr15steel polished and coated with chrome HRC55-60°
Roller:15 groups rollers
Material of main shaft : High grade No.45 steel after treatment
Diameter of main shaft: ø80mm
Driven:1''chain

4) Hydraulic & Cutting
Cutting material: Cr12 ,HRC58-62
Hydraulic motor power: 7.5KW

Tolerance:±2mm

Valve: adopt Italy Atos


5)PLC Control system
Function:control the whole line manually and automatically
Structure:MITSUBISHI PLC control, human and machine screen

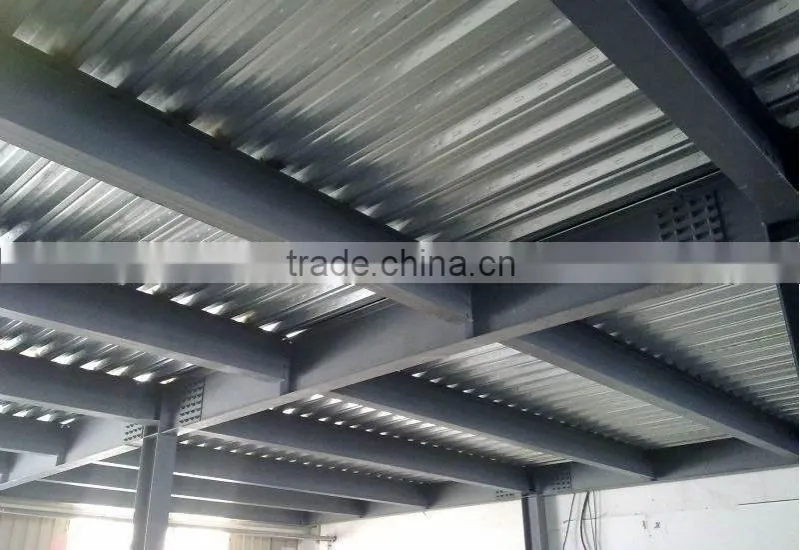

Marks: Main Application: floor decking

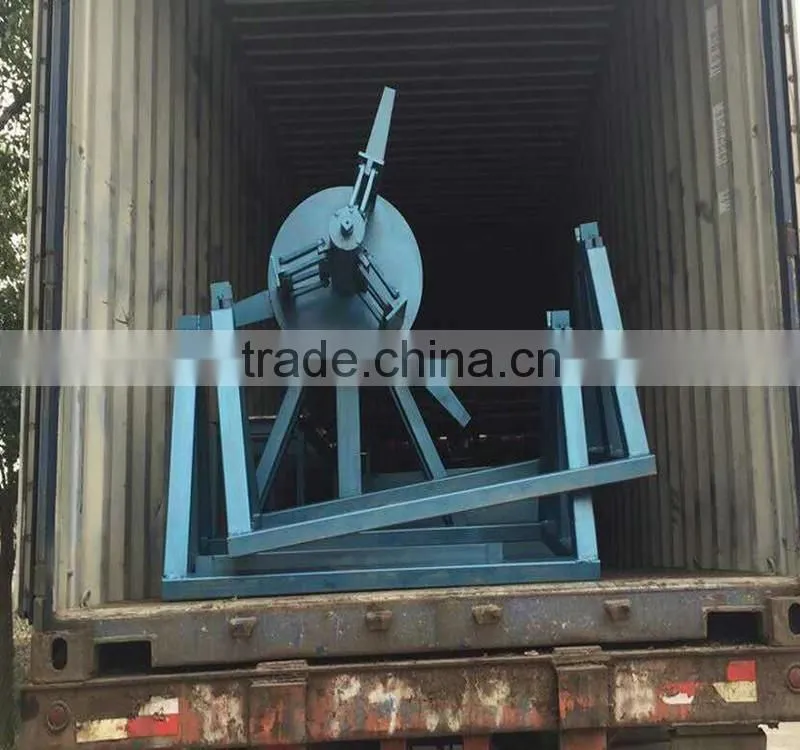

decoiler:

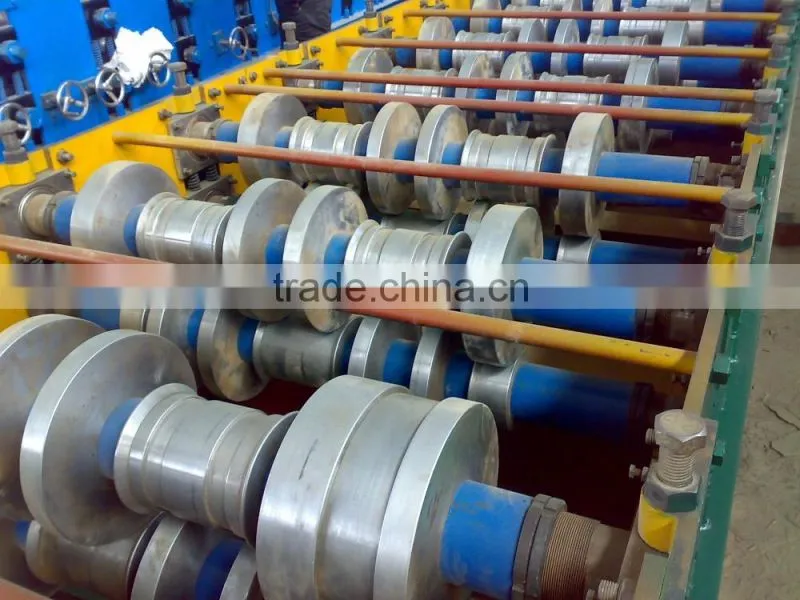

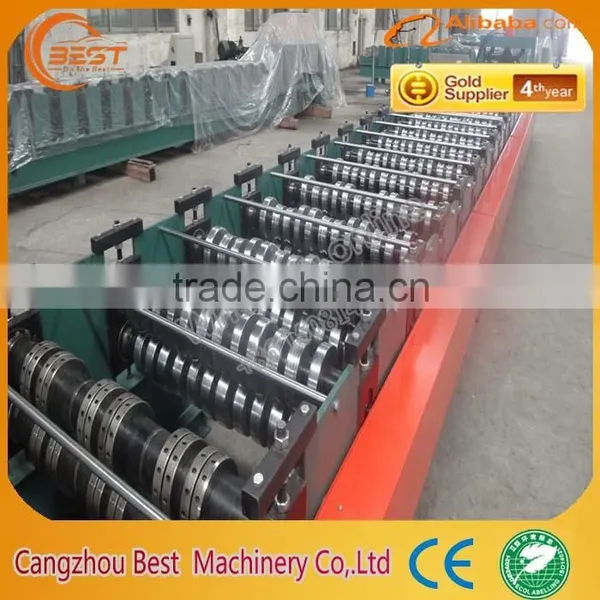

forming parts:

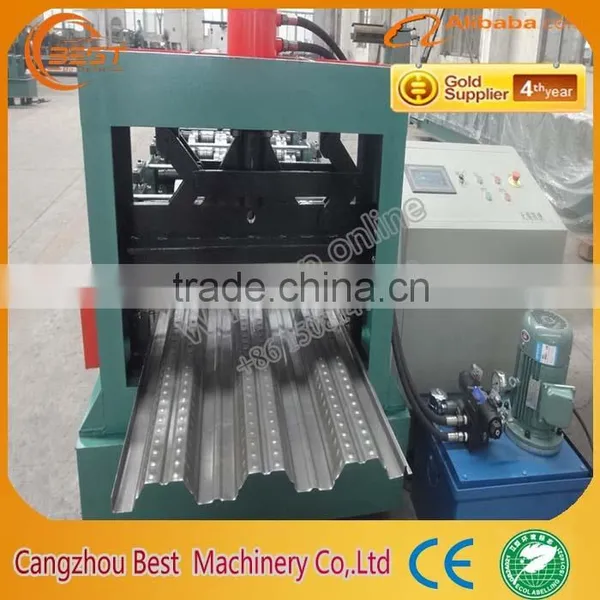

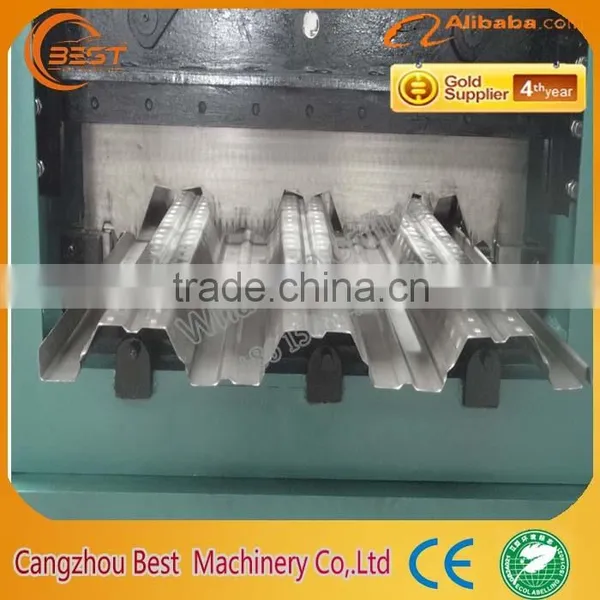

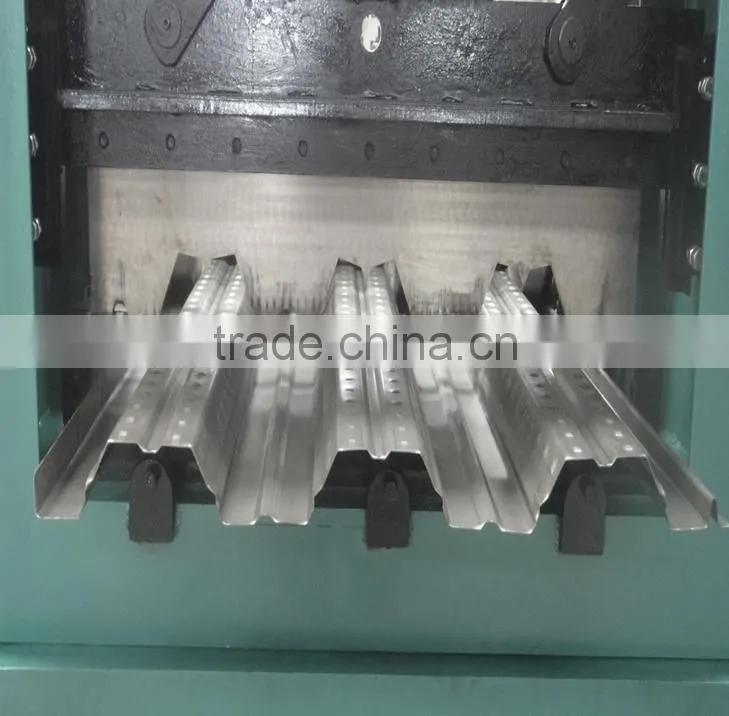

Cutting part:

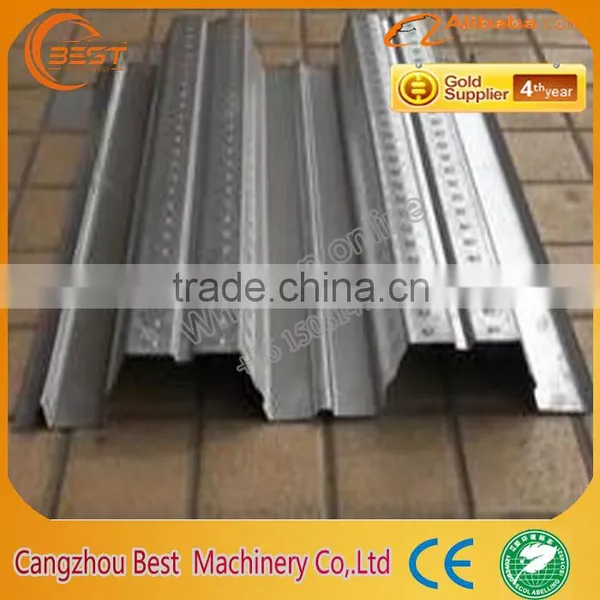

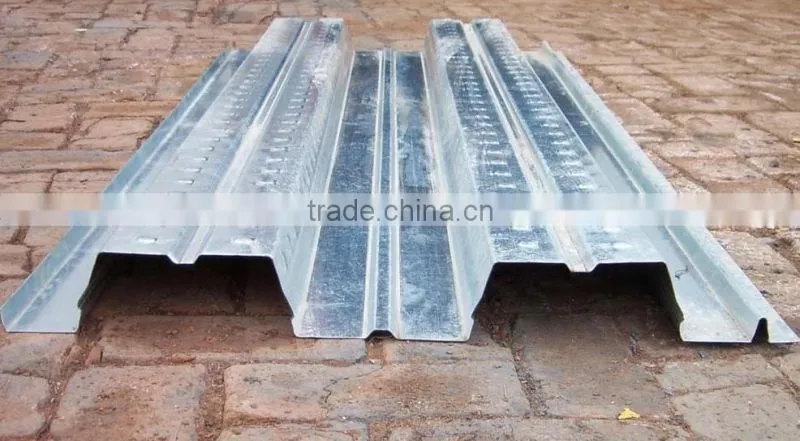

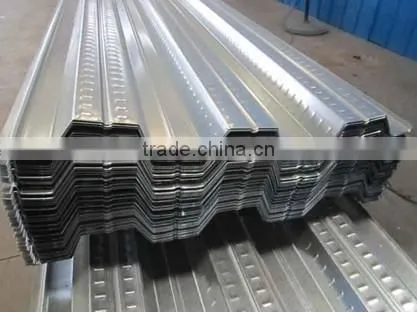

Finished part:

 machine pictures

We do specialized:

We have professional team to make different kinds of roll forming machines for our customers, from designing, processing, assembling, debugging,delivery.

Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use themachine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

We do you like:

1.We are factory and  Shanghai's technology ,offer best quality machines

2. Customers Design ,Size,Color&Logo are accepted.

3. With20 years professional manufacture experience

4. Prompt Delivery&Competitive Price

5. Main markets:Middle East, Europe, North America, Africa,Southeast Asia.

We do standard:machine loading

We do you care:

WHY CHOOES CHBEST COMPANY

1) Q: Do you have after sales support?

 A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2)Q: How do your machines compare with other big companies in this market?

 A: We are up to date with the latest technology and improve our machines accordingly

3) Q: Will you deliver the right goods as ordered? How can I trust you?

 A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.

4)Q:What can you do if the machine broken?

A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Q:Can you be responsible for transport?

A:Yes,please tell me the destination port or address.we have rich experience in transport.

6) Q:Can you supply the raw materials?

A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.

Hope we could establish win-win business relations in the soon future!
