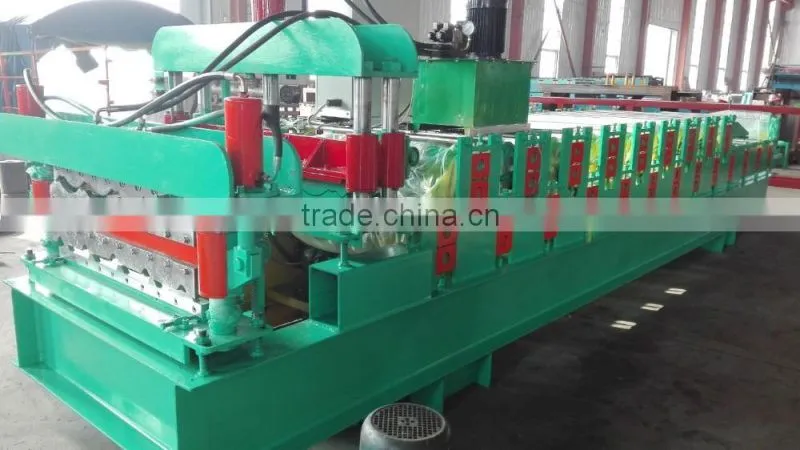

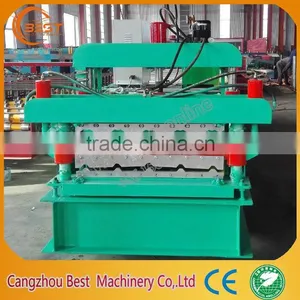

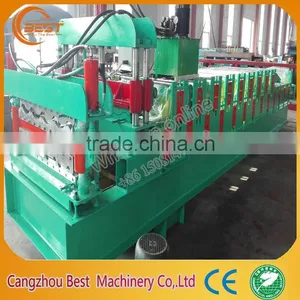

Best Double glazing glazed tile making machine
- 20 Set / Sets per Month
- tianjin xingang
- T/T Credit Card PayPal
- Best Double Layer Glazing Roof Roll Forming Machine By
- Best Double Layer Glazing Roll Forming Press Machine
- Metal Tile Rolling Forming Machinery Machine Price
- Roof Tile Roll Forming Making Manufacturing Machine
- Glazing Tile Roll Forming Manufacturing Machine
- Standing Seam Roof Panel Roll Forming Double Glazing Machine
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Other, GI/PPGI/AL |
Use: | Other, building | Production Capacity: | 8-12m/min | Place of Origin: | Hebei, China |
Brand Name: | CHBEST | Model Number: | Best Double glazing glazed tile making machine | Power(W): | 4+3kw |
Voltage: | 380V 50Hz 3phases | Dimension(L*W*H): | 6.5m*1.5m*1.3m | Weight: | 4.5T |
Certification: | SGS | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |

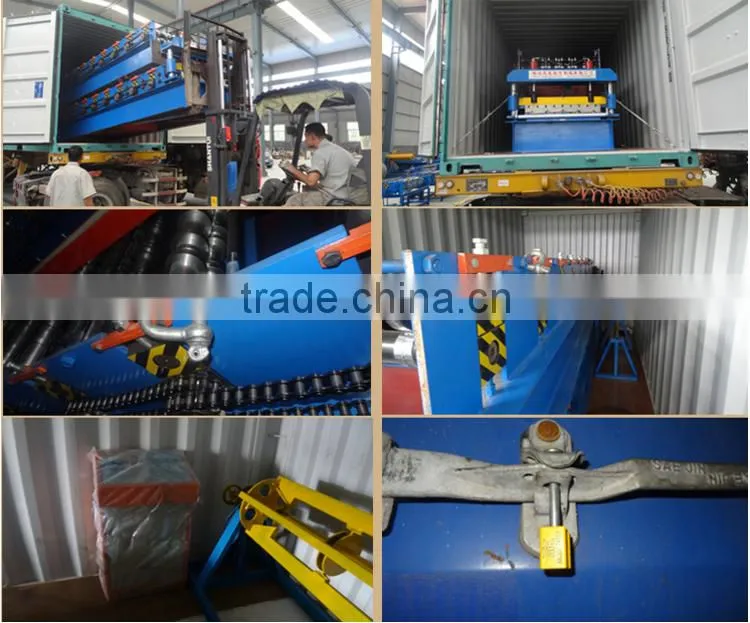

Packaging Details
naked for 40 feet container
Product Description
Best Double glazing glazed tile making machine
We do Best, About CHBEST factory
Cangzhou Best Machinery Co,.LTD as a professional roll forming machine supplier for 20 years.We have professional team to make different kinds of roll forming machines for our customers, from designing, processing, assembling, debugging,delivery.
Adopting Shanghai’s technology, Now the machine working speed can reach 30m/min
Main products: CZU purlin machine, deck floor machine,shutter door and door frame machine, cable tray machine, roof and wall machine, light steel machine, gutter and downspout machine, glazed tile /ridge cap machine, highway guardrail machine, sandwich panel line, rack and fence machine and auxiliary equipments.
Best Double glazing glazed tile making machine working flow
Best Double glazing glazed tile making machine components
No. | Name | Qty |

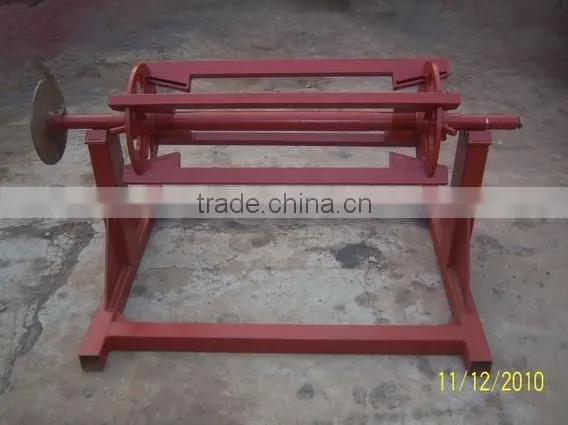

1. | De-coiler | |
2. | Roll Forming Machine | |

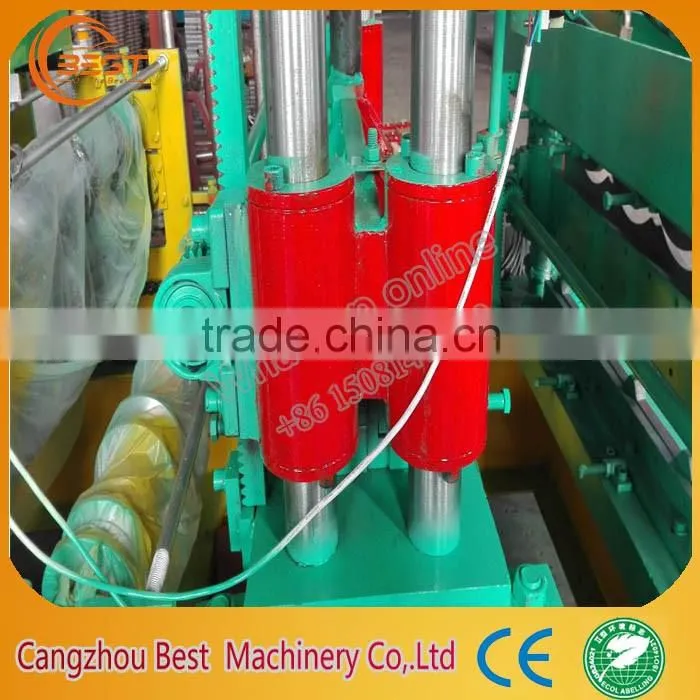

3. | Hydraulic Cutting Device | |

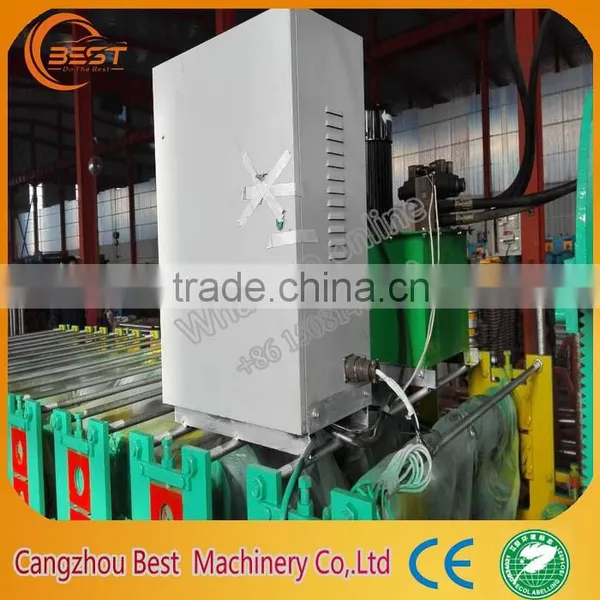

PLC Control Box | ||

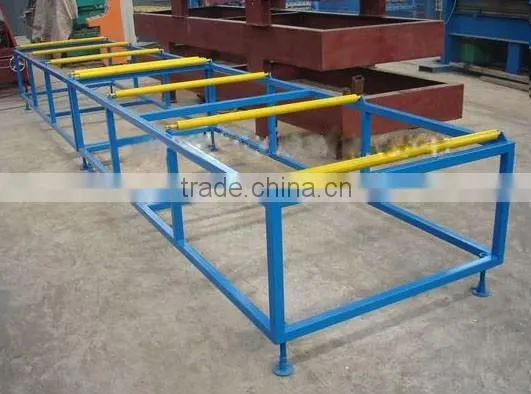

5. | Output table |
Best Double deck double layer roll forming machine
Technical description
Material thickness | 0.3-0.8mm |
Diameter of shaft(solid shaft) | 70mm |
Roller | 11steps |
Material of shaft (solid shaft) | (high grade) 45# Steel, quenching and tempering treatment |
Material of roller | 45# steel polished and coated with chrome HRC55-57° |
Power of main motor | 4KW |
Cutting | hydraulic cutting after roll forming |

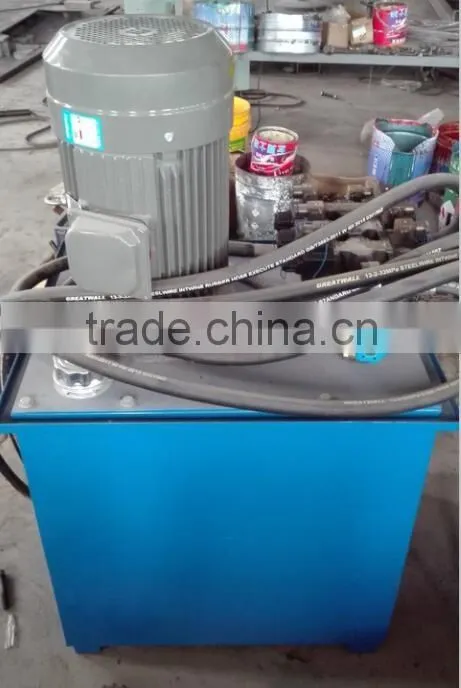

Hydraulic power | 3kw |
Driven | 1 inch chain |
Voltage | 380V/50Hz/3phase |

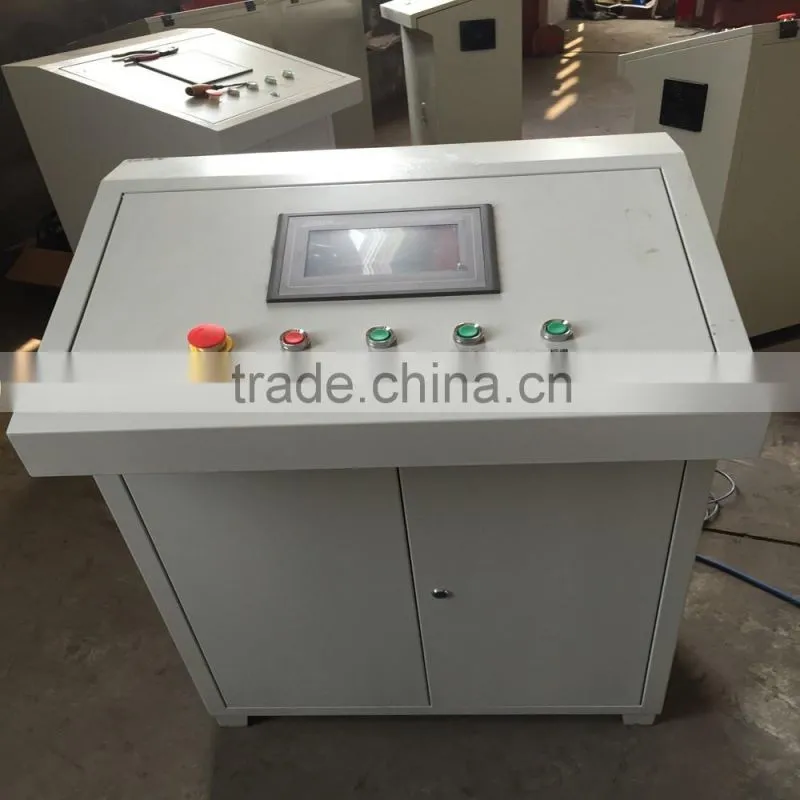

Control system | PLC Frequency Control System with touch screen |

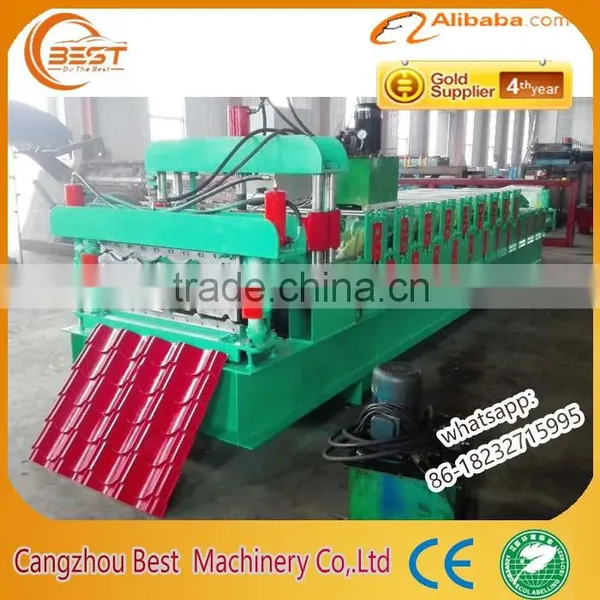

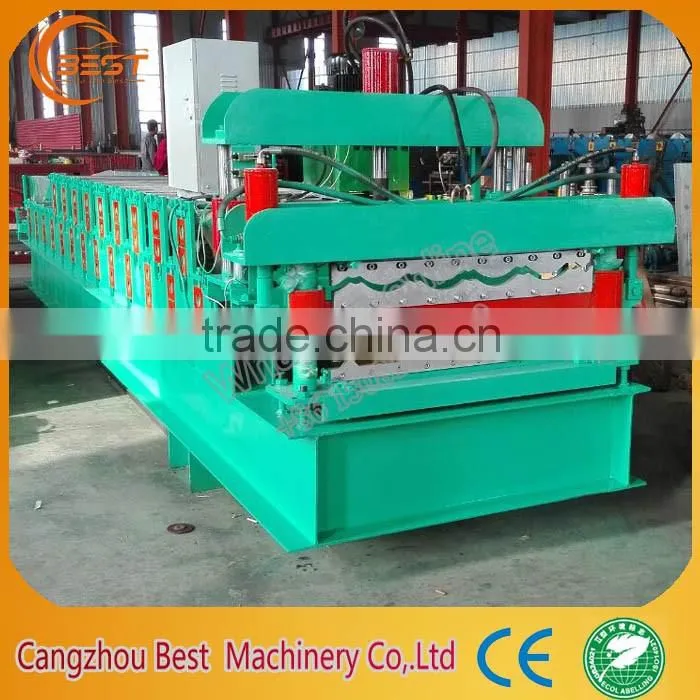

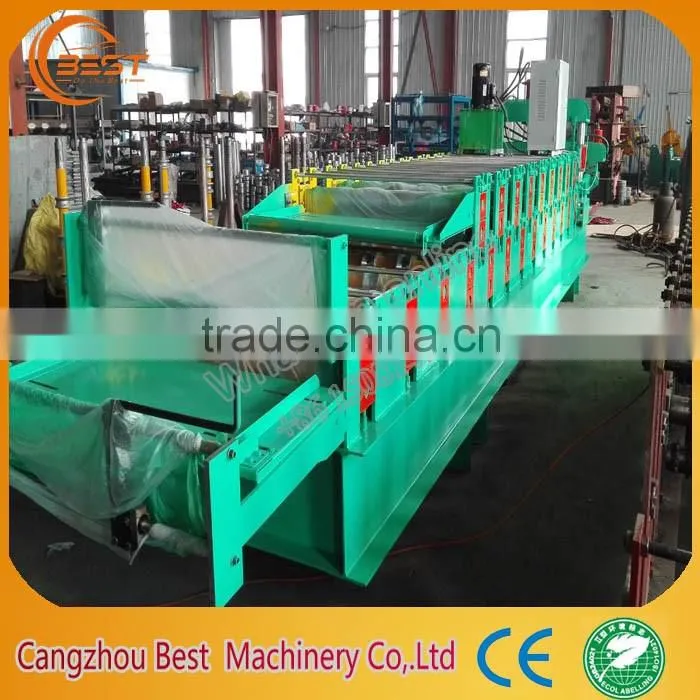

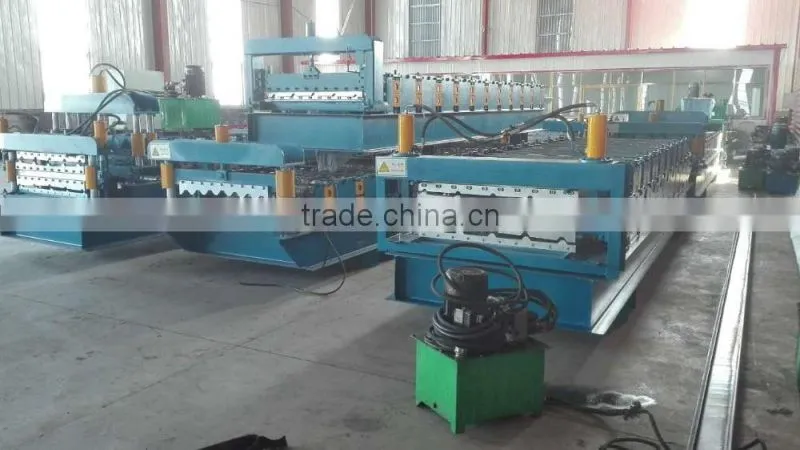

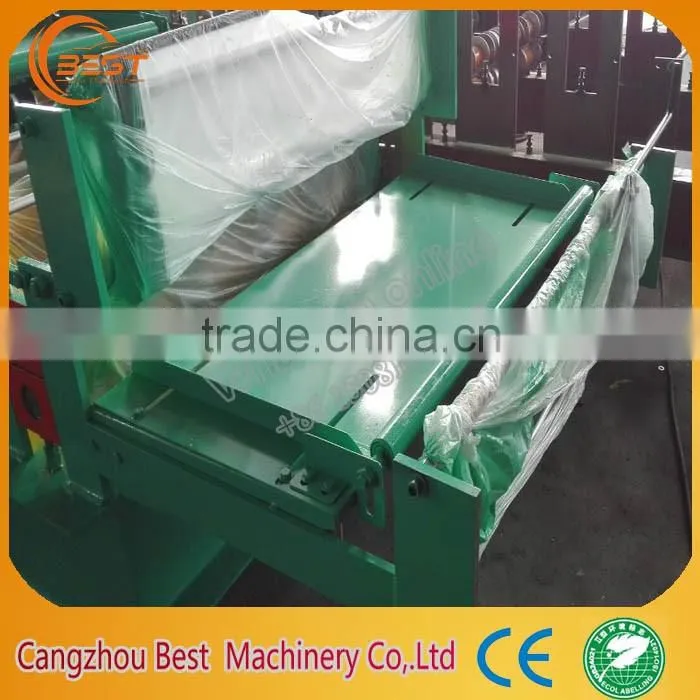

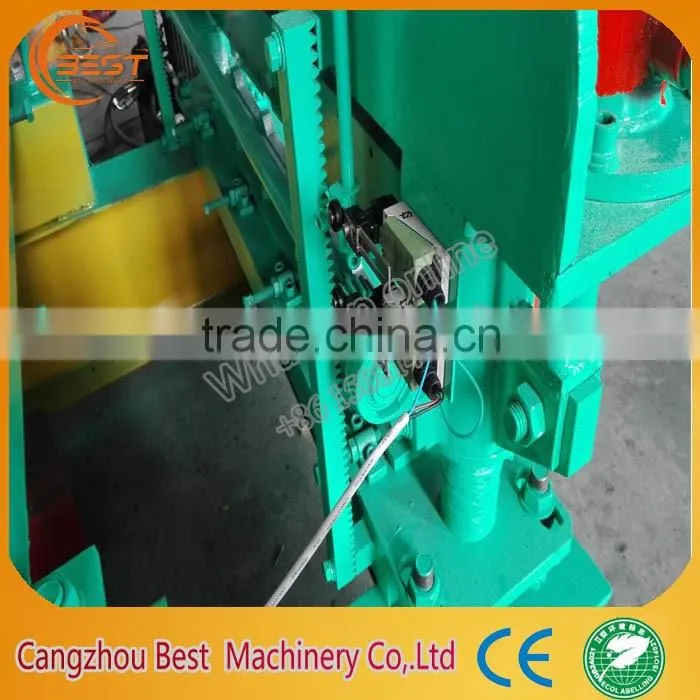

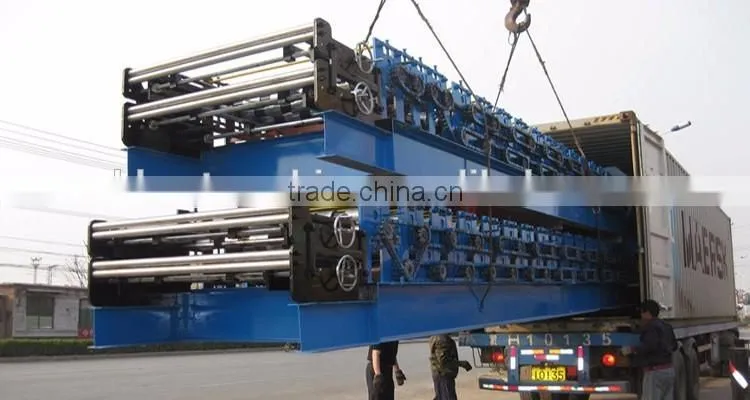

Best Double glazing glazed tile making machine pics
1.Engineer will give free training lessons to labors in buyer’s factory.
2.The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer.
3.During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4.We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
Contact me by WHAT'S APP:0086-15081471140 or send email to lily20130102 .Your satisfaction and recognition is the goal of our efforts!

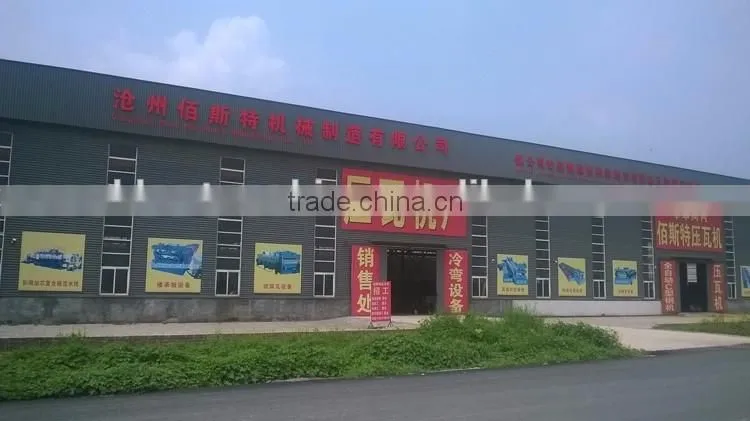

Company Profile
Cangzhou Best machinery manufacturing Co., Ltd. is a professional manufacturer engaged in high quality cold roll forming machine, my professional engineer who engaged in cold roll forming machine design for more than 20 years, has a wealth of design concept
Specialized in the production of C/Z/U purlin roll forming machine, deck floor roll forming machine, door series roll forming machine, cable tray roll forming machine, roof/wall panel roll forming machine, light steel roll forming machine, K-span roll forming machine, water channel roll forming machine, glazed tile/ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel production line, rack/fence roll forming machine ,slitting machine, bending and cutting machine, some auxiliary equipment.
Our advantage: We can design and manufacture according to customer's special type machine or special drawing list. Ensure the best quality.
We provide oversea after-sales service, dispatch our engineer to customer's factory for installation and training
