Steel Frame Car Panel Roll Forming Machine

 Working flow:

Decoiler------guiding------leveling------roll forming----------cut to length-----output table

Machine components:

Technique parameters of the processing line

(1)   Plate Material: Galvanized plate/strip steel

(2)   Thickness of the plate : 0.8-2mm(different thickness is ok)

(3) Machine body :300 mm H steel

(3)   Wall thickness of the main forming machine: 22mm steel plate

(4)   Outside debugging to change sizes

(5)   Transmission chain : 2’’

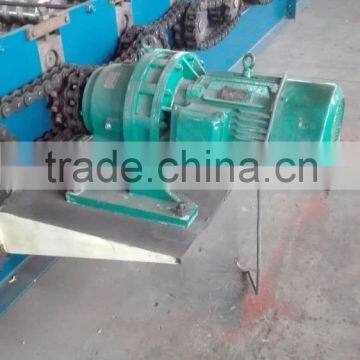

(7) Reducer :15kw Xingxing Cycloid which works stably and no noise.

(8) Seam type semi-mat

(9) Roller material: GCr15 with quenched treatment 62-64°C

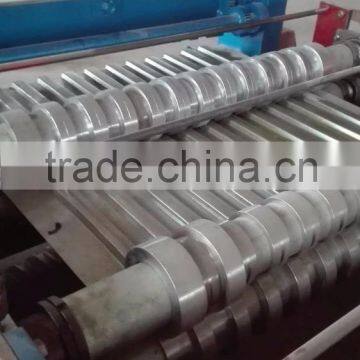

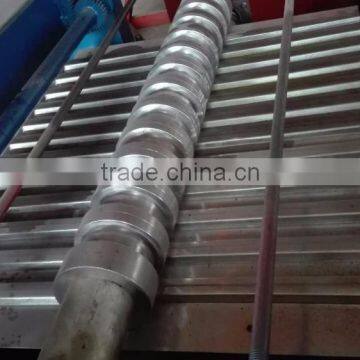

(10) Rollers 30 steps including 9 shafts for leveling.

(11) 4 steps side wheels on the coil-input part for avoiding coil-deviation

(12) Forming part adopts side wheel rotation forming to reduce friction between rollers and coil. Easy and fast debugging

(13) Diameter of active shaft: 80mm, 45# steel

(14) Hydraulic pump power: 4 KW

(15) PLC control system with inverter

(16) Working Speed: 5-10m/min

Guarantee period: one year free service/ pay service all the machine life

Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and CD to teach you to install and operate.
If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

 Cangzhou Best machinery mannufacturing Co,.ltd the most advantage: specilized in making special cold roll forming machines, we can make machines according to your special profile drawings.
