12V AC/DC 300 ma 500ma 1000ma usb type Power Adapter with the complete certifications
Product Features: |
1). Ultra-small size, light weight, streamline, fully sealed and easy to carry; |
2). Low-cost design, high reliability, ultrasonic lamination; |
3). Built-in over voltage, over current and short circuit protection; |
4). Input Characteristics: Voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 0.85A Max; |
Starting Time: 3s Max; Inrush Current: 30A/240VAC Max |
5). Output characteristics: constant voltage mode, high precision, low noise;Hold up time: 20mS Min; |
6). Environmental: Operating temperature: 0 °C -40 °C, 5% -90% RH; |
Storage temperature: -20 °C -85 °C, 5% -95% RH; |
7). Cooling mode: natural cooling; |
8). Energy efficiency accordingly: ERP / CEC-V standard; |
9). Safety standards: IEC/EN/UL60950; |
10).Meet ROHS standards; |
11).Pin Type: UL / CCC / VDE / BS / SAA / KC / PSE; |
12).Average failure rate: 50,000 hours; |
Electrical characteristics: (see below sheet)
| Model | I/P Condition | Output(V) | Output(A) | Output(W)max |
| SK01G-XXXXYYYW | 2.8-6.0V | 0.10-1.50A | 7.5W | |
| SK01G-XXXXYYYW | 100- | 6.1-8.9V | 0.10-1.23A | 7.5W |
| SK01G-XXXXYYYW | 240VAC | 9.0-11.9V | 0.10-0.83A | 7.5W |
| SK01G-XXXXYYYW | 0.2A Max | 12.0-14.9V | 0.10-0.63A | 7.5W |
| SK01G-XXXXYYYW | 50/60Hz | 15.0V-18.9V | 0.10-0.50A | 7.5W |
| SK01G-XXXXYYYW | 19.0-24.0V | 0.10-0.39A | 7.5W |
Safety Approvals
1.UL/CUL/GS/CE/SAA/CB/FCC
2. Average failure rate: 50,000 hours
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection

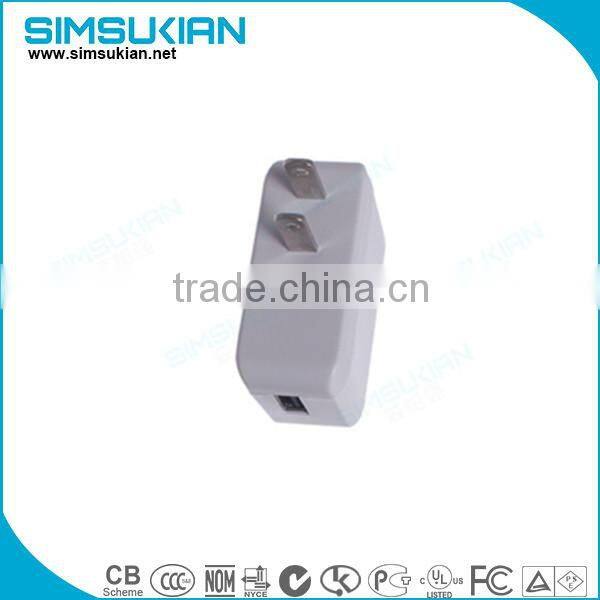

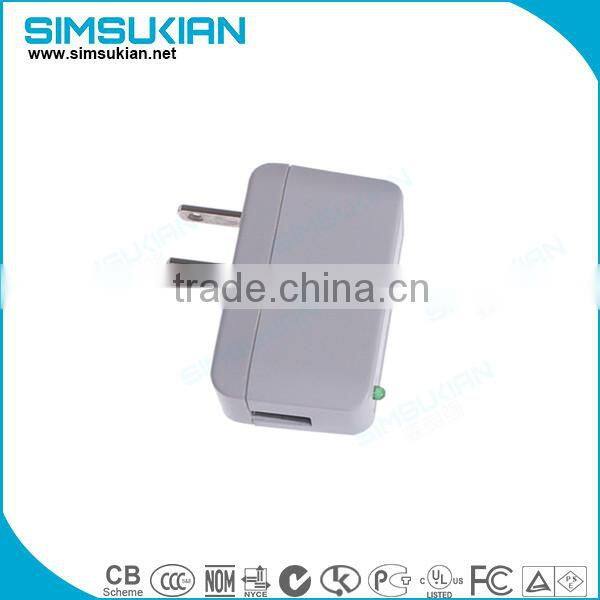

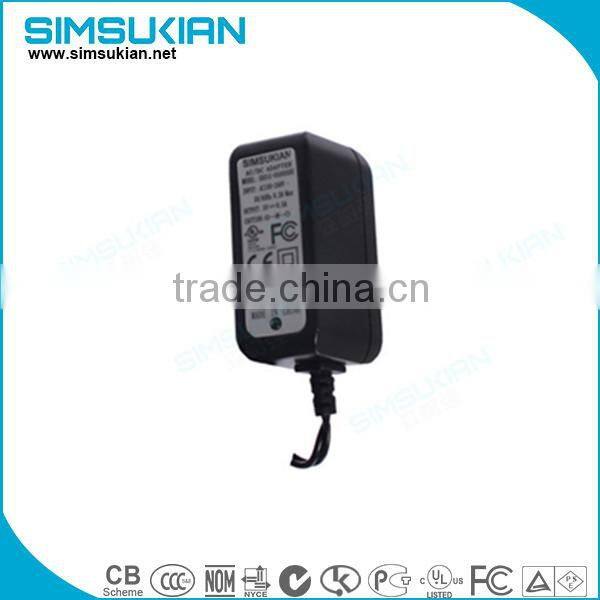

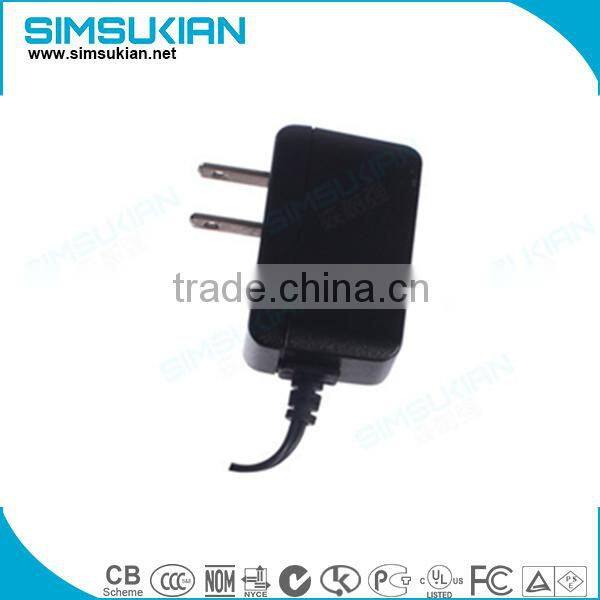

Pictures:
Shenzhen Simsukian Electronics Technilogy Co.,Ltd
Simsukian Electronics Technology Co.,Ltd was found in 1996 in Shantou,2008 in Shenzhen, which is one of the most famous power adapters ,power supply, chargers, car chargers manufacturer in China. In the domestic power supply industry.With leading technology and professional service level, our products have been recognized by the domestic and international well-known enterprises, and built a strong strategic partnership with some big brand groups .
Security is the key reason to success of Simsukian fast-growing. At the beginning, Simsukian invested much money, and works closely with a number of colleges of cooperative relations ,building reliability safety laboratory , using automatic computer Tester and other advanced production and testing equipment. We perform strictly the quality management of ISO9001 and ISO14001:2004 environmental management system. Our products have passed CE,CB,GS,BS,UL,CUL,FCC,NOM,PS,KC,CCC,SAA,ERP,CEC,DOE,MEPS,ROHS etc
product procedure:
why choose simsukian ?
We are the manufacture, we are the source
With more than 18 years experience in this field. & 6000 Square Factory.
Provide authorized certification
Top quality factory & Competitive price & promptly delivery
Quality control - 100% inspection before delivery etc
Flexible to meet dynamic requirements
Do the business with the principle of mutual respect and benefit
Look for the long term cooperation with the old and new customer
contact us
1. Attn: Fiona.liu
2. Tel: 0755-27488856-8038
3. QQ: 2851068596
4.skype: Fiona…he
5.whatsapp:18260206761
