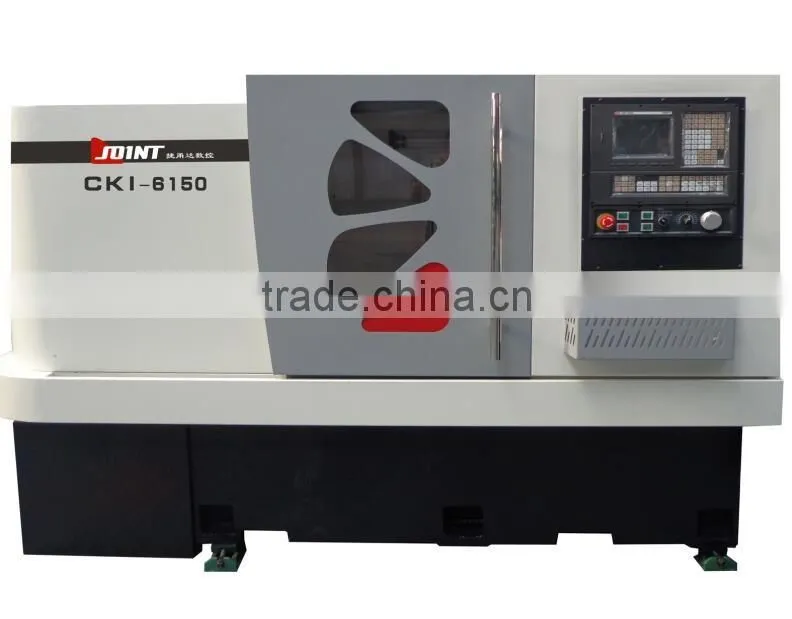

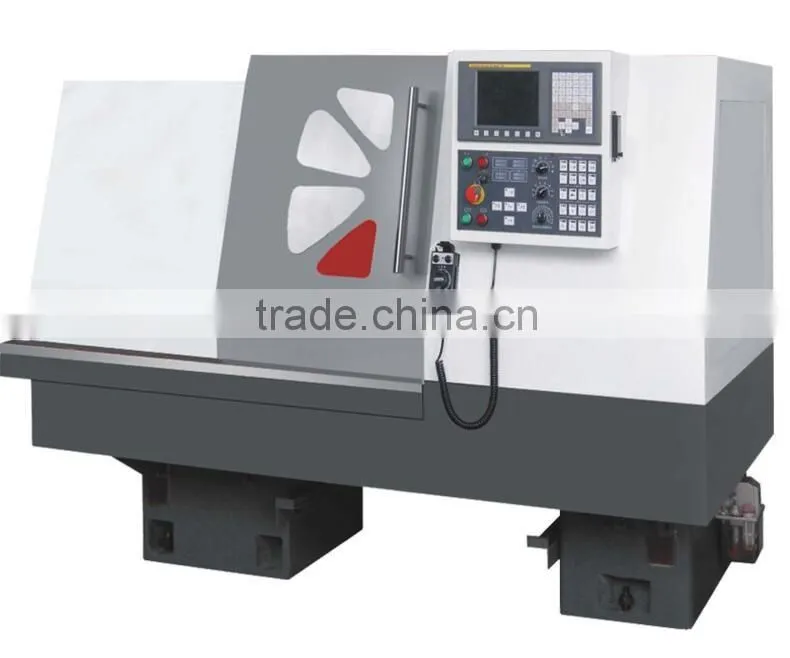

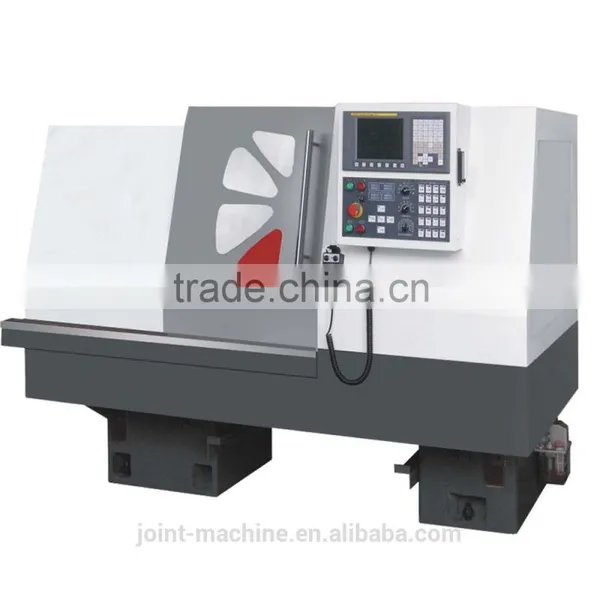

Special Intergrated Structure Flat Type CNC Lathe Machine CKI6150
- Machine body guide way are quenched for better resistance of abrasion,and increased stability and accuracy.
- Models above 1650 adopt gear box transmission design,and are equipped with inverter spindle motor which can enable strong cutting force with 3-level gear speed,and change rotation speed by controller system at each speed level.
- Optional control system: GSK Control System,KND Control System and Fanuc Mate Control System
| Model | CKI6150 |
| Max swing diameter over bed | 500mm |
| Max swing diameter over carriage | 290mm |
| Max length of workpiece | 890/1390/1900mm |
| Spindle rotation | 40-1600rpm |
| Spindle taper of front taper | D8/1:20 |
| Max moving speed of X axis | 6m/min |
| Max moving speed of Z axis | 8m/min |
| Repeat positioning accuracy | 0.01mm |
| Size of squre tool | 20*20mm |
| Diameter of sleeve | φ75 |
| Power capacity | 10kw/h |
| Dimension(L*W*H) | 2400*1200*1750mm |
| Net weight | 2100kg |
| Taper of tailstock | 60mm |
| Travel of tailstock | 130mm |
| Taper of tailstock | MT4 |
Standard accessories Optional accessories
♦ Four position electronic turret ♦ 4-jaw chuck
♦ 3-jaw chuck ♦ Six position electronic turret
♦ Tool and tool box ♦ Hydraulic tailstock
♦ Fanuc Mate Control System
After-sales Service:
Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.
Packing Details : Packing, solid bicycle saddle, 50pcs/carton.
Delivery Details : 3-30 days after order of Solid bicycle tire tubes.
SHENZHEN Joint Industry Co., Ltd specialized in R&D and manufacturing mold processing and machinery parts processing equipments.We developed high quality and high-tech research,development,manufacturing,service team and management system,and expanded products to more than 10 series from milling machines, to machine centers.
With the exceptional quality products and distinctire brand reputation,our products are sold to more than 40 developed cities all over China,and also to more than 20 countries all over the world across Asia,Europe and America.
Our development team
We have a group of development team that they have professional theory profound skills, technical specialization, rich experience in the industry of the first-class technical research.

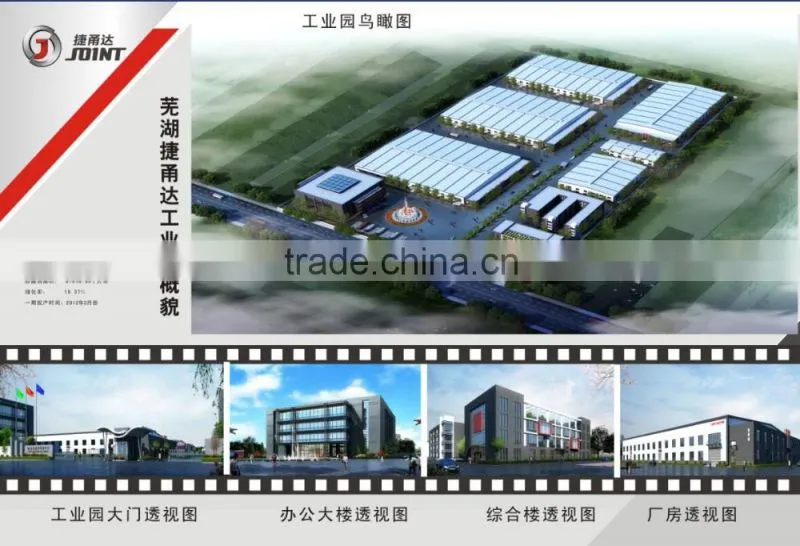

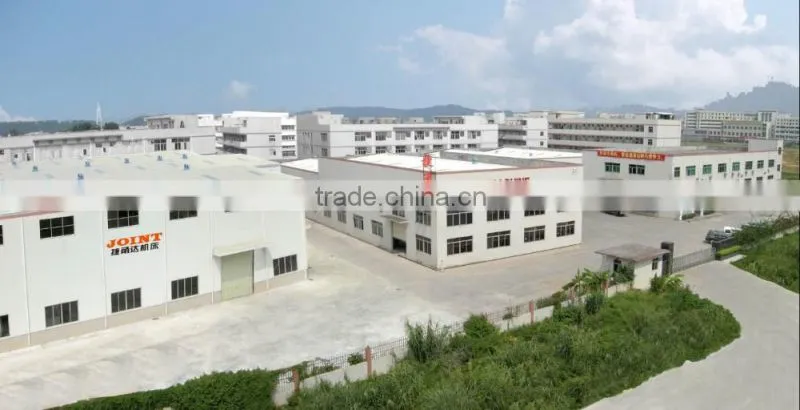

Our production workshop
Our company independent planning and construction of modern vertical machine center production line ,CNC milling machine production line ,Dragon frame CNC machine production line , electric discharge machine production line, milling machine production line, grinder machine production line, precise head assembly workshop etc.
Our certificate of honor
- There are 8 Intellectual property rights,5 the patent
- In 2008, Our own brand”JOINT” has been the top quality machine’s signal in domestic sales JOINT also has been recognized as”Guangdong Famous Brand”
- In 2008, Milling machine was recognized as” TOP 10 Famous Brand of Milling Machine “ in China
- In 2011,our company has been recognized as” national grade HI-Tech Enterprise”.
- The company set up a ISO9001:2000 quality guarantee system
- our product through “the country machine quality supervision and inspection center “certification testing
