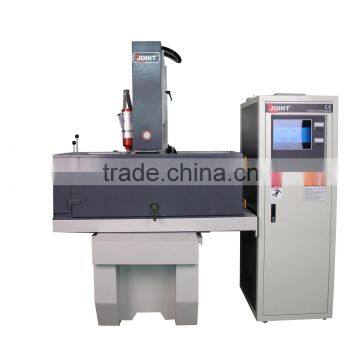

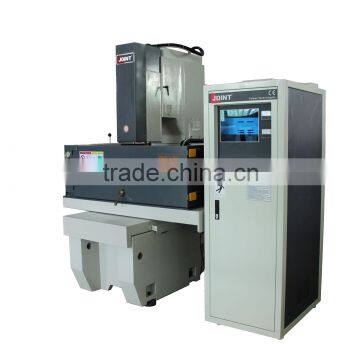

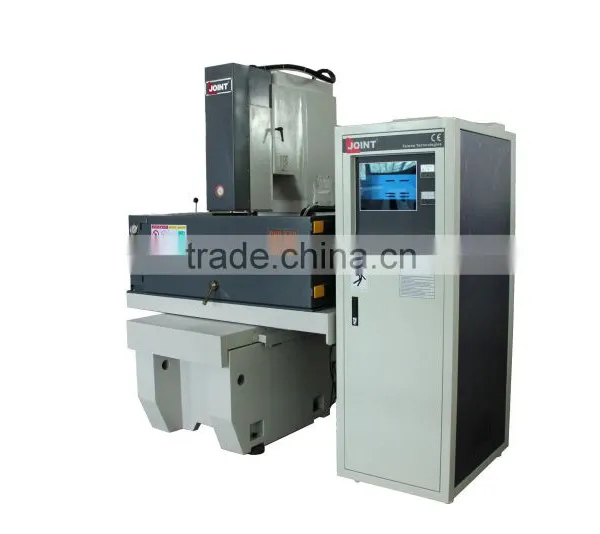

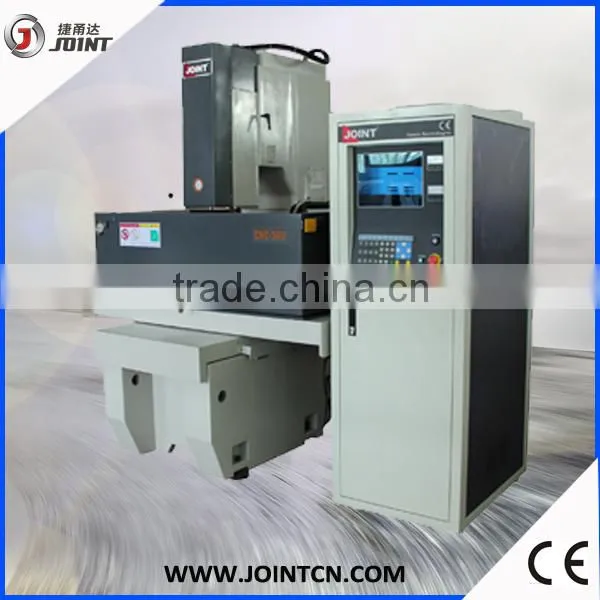

Joint Brand High Precise Factory Price Electric Discharge machine CNC540
Features
- Best quality cast,time aging
- Deep-hole processing without carbon accumulation
- Imported sealed ballscrew and electrode head
- Japan lineal way and servo motor
- Taiwan control system
- Control Model&Axis no : NC with close circuit/ XYZ axis control
| Model | CNC MACHINE |
| Control mode & axis No. | NC with close circuit/X,Y and Z axis control |
| Min.setting value. | 0.005mm |
| Max.setting value. | 9999.995mm |
| Coordination system | (INC),(ABS) |
| Screen | 15''TFT |
| Control system | Industrial PC |
| Moving velocity of controller | 0.005mm (Per Unit)*1,*5,*10 |
| Procedure in store | 0-999groups |
| Max.current for processing | 50 75 100 A |
| Input rated power | 5 6 10 KVA |
| Max.cutting processing speed | 360 560 700 mm²/min |
| Consumption of the electrode head | <0.2% |
| Best surface rough | 0.25μmpa |
| Dimension | 620*860*1850mm |
| Net weight | 215Kg |
Specification:CNC-540
| Model | CNC-540 |
| Size of oil container | 1300*720*475mm |
| Table size | 800*400mm |
| Table travel (Longitude) | 500mm |
| Table travel (Crossward) | 400mm |
| Table travel (Vertical) | 200mm |
| Electrode head | 380mm |
| Max.distance between electrode head and working | 580mm |
| Max.load of electrode head | 150Kg |
| Max.load of table | 1500Kg |
| Dimension(L*W*H) | 1640*1460*2140mm |
| Net weight | 1740Kg |
| Filter container (Cube) | 460L |
| Filter container (Net weight) | 180Kg |

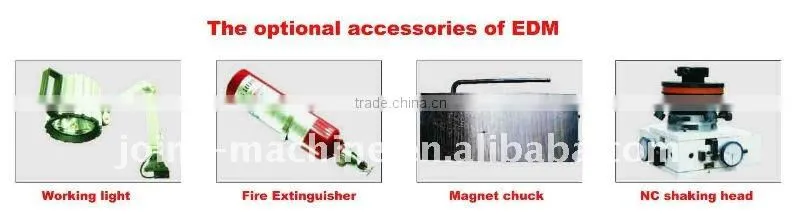

Accessories
1.Standard accessories:
Magnet check
Fire extinguisher
Tool and toolbox
Operation manual
2.Optional accessories:
NC shaking head
After-sales Service
Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.

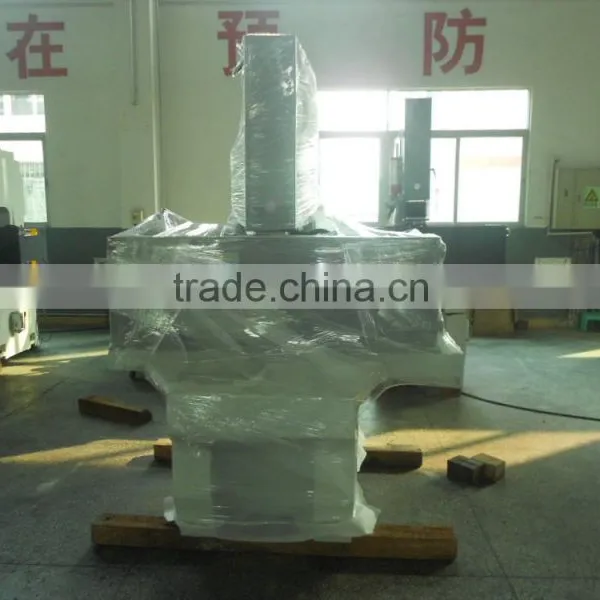

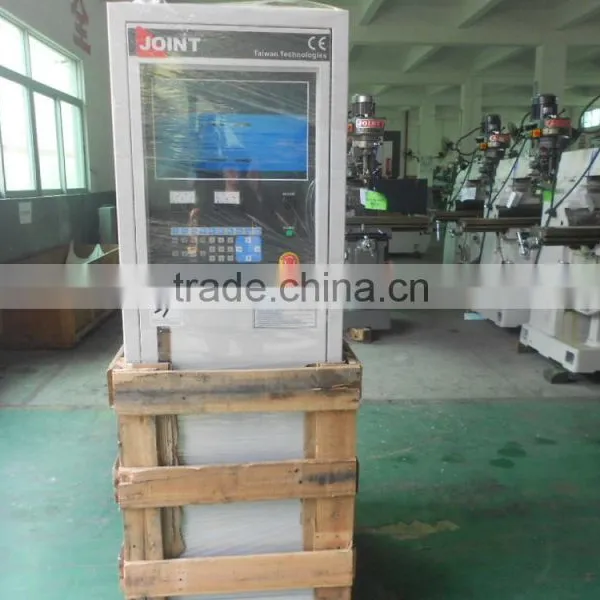

Photos
Our production workshop
Our company independent planning and construction of modern vertical machine center production line ,CNC milling machine production line ,Dragon frame CNC machine production line , electric discharge machine production line, milling machine production line, grinder machine production line, precise head assembly workshop etc.
Our development team
We have a group of development team that they have professional theory profound skills, technical specialization, rich experience in the industry of the first-class technical research.
Our certificate of honor
- There are 8 Intellectual property rights,5 the patent.
- In 2008, Our own brand”JOINT” has been the top quality machine’s signal in domestic sales JOINT also has been recognized as”Guangdong Famous Brand”.
- In 2008, Milling machine was recognized as” TOP 10 Famous Brand of Milling Machine “ in China.
- ,In 2011,our company has been recognized as” national grade HI-Tech Enterprise”.
- The company set up a ISO9001:2000 quality guarantee system.
- our product through “the country machine quality supervision and inspection center “certification testing.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% in advance.and the rest payment should pay before delivery.
Q: How many years have your company established?
A: 20 years, our company built in 1995.
