Chinese Electric Discharge Machine ZNC320

Chinese Electric Discharge Machine ZNC320 thumbnail-1
Chinese Electric Discharge Machine ZNC320 photo-1
US$ 9,500 - 13,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JOINT
Model Number:
ZNC320
Contact Supplier Request Quote Chat Now
Shenzhen Joint Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name JOINT
Model Number ZNC320

 Chinese Electric Discharge Machine ZNC320



Electronic Discharge Machine ZNC320



Features:



1.Imported sealed ballscrew and electrode head.

2.Japan lineal way and servo motor
3.Taiwan control system.
4.OEM manufacturer .

5.Best quality,time aging.

6.Deep-hole processing without carbon accumulation.



Specification:



Model  ZNC-320
CNC-320 		ZNC-450
CNC-450 		ZNC-540
CNC-540 		CNC-540N
Size of Oil Container 880*520*330mm 1130*710*450mm 1300*720*475mm 1370*720*450mm
Table Size 600*300mm 700*400mm 800*400mm 850*450mm
Travel  Longitude (X) 300mm 450mm 500mm 500mm
Crossward(Y) 200mm 350mm 400mm 400mm
Vertical (Z) 180mm 200mm 200mm 300mm
Electrode Head 180mm 280mm 380mm -
Max Distance between Electrode Head and Working Table 420mm 480mm 580mm 690mm
Max Load of Electrode Head 100kg 120kg 150kg 150kg
Dimension  1450*1300*2140mm 1470*1150*1980mm 1600*1400*2250mm 1800*2000*2450mm
Net Weight 1360kg 1800kg 2100kg 2500kg
Filtered Container Cubic 250L 400L 460L 640L
Net Weight buid-in 150kg 180kg 200KG



Model  ZNC Machine
Control Mode & Axis No NC with Close circuit/Single z Axis control
Min Setting Value mm 0.005(0.001)
Max Setting Value mm 9999.995(9999.9999)
Coordination System 1 NCREMENT,ABSLOUTE
Screen 15" CRT Colorful
Control System Industrial PC
Moving Velocity of Controller 0.005mm(per unit)*1*5*10
Procedure in Store 0-999 groups
Max. Current for Controller 50 75 100
Input Rated Power 5  6  10
Max. Cutting Processing Speed 360 560 700
Consumption of the Electrode Head <0.2
Best Surface Rough 0.18
Dimension 620*860*1850mm
Net weight 210kg



Accessories:



1.Standard accessories:



Magnet check

Fire extinguisher

Tool and toolbox

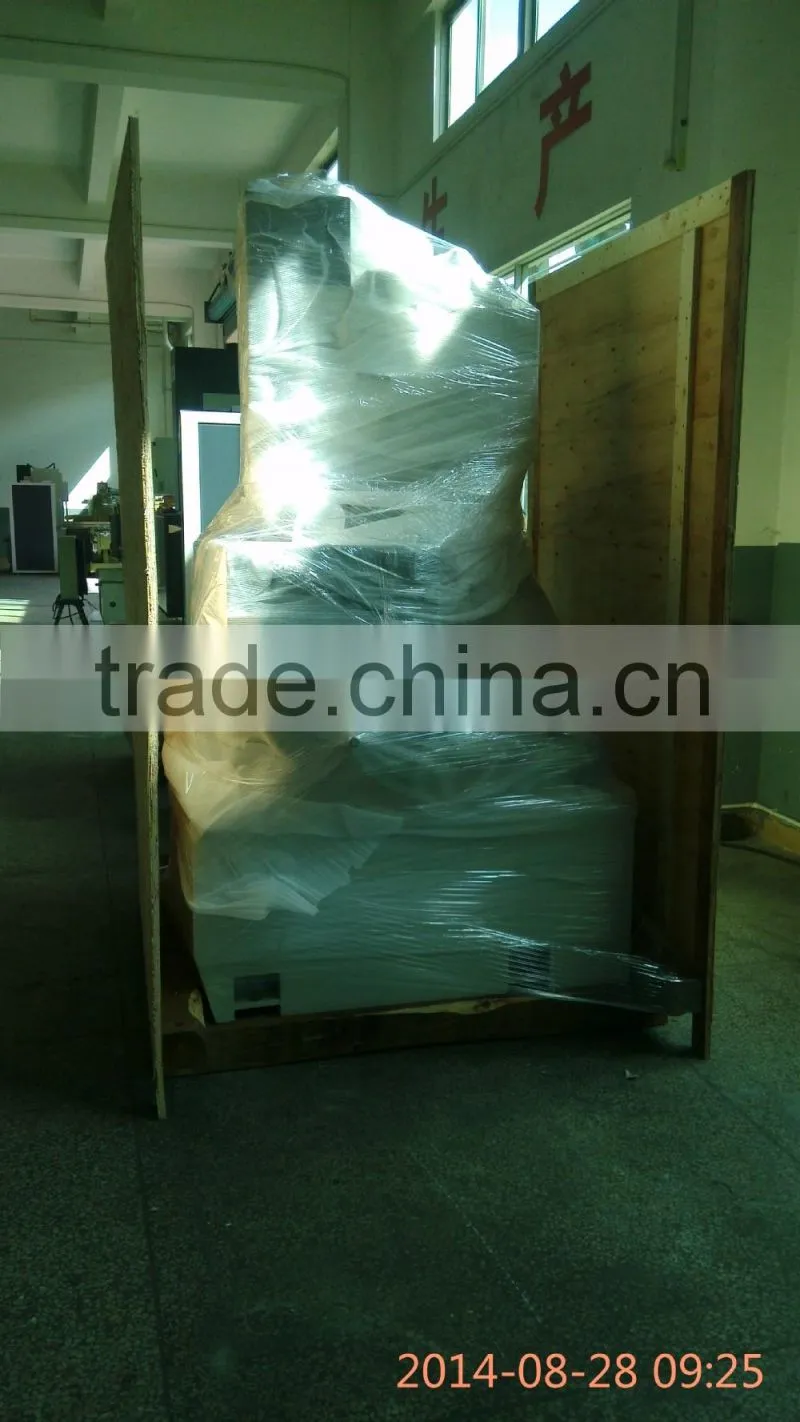

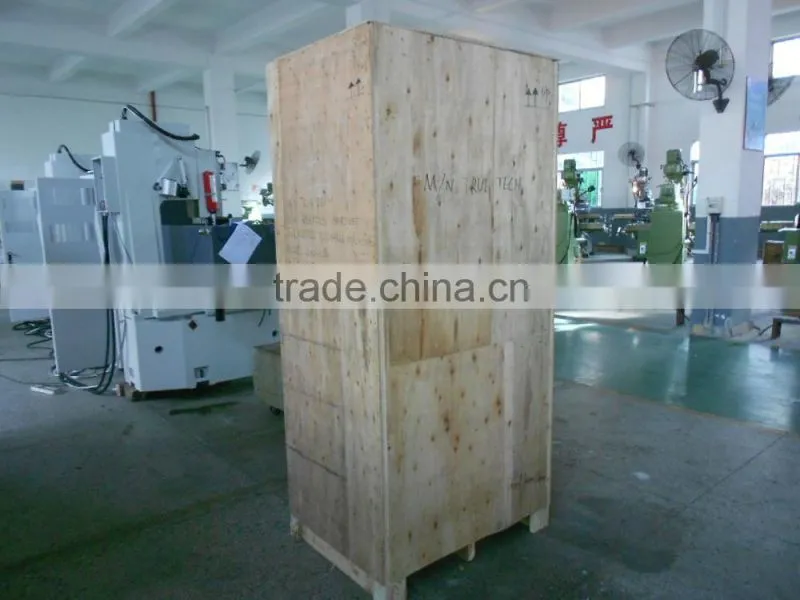

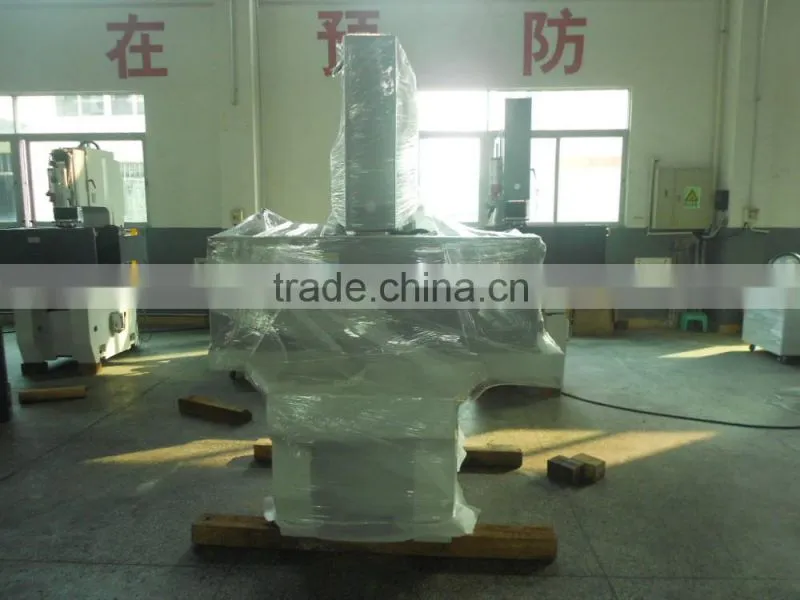

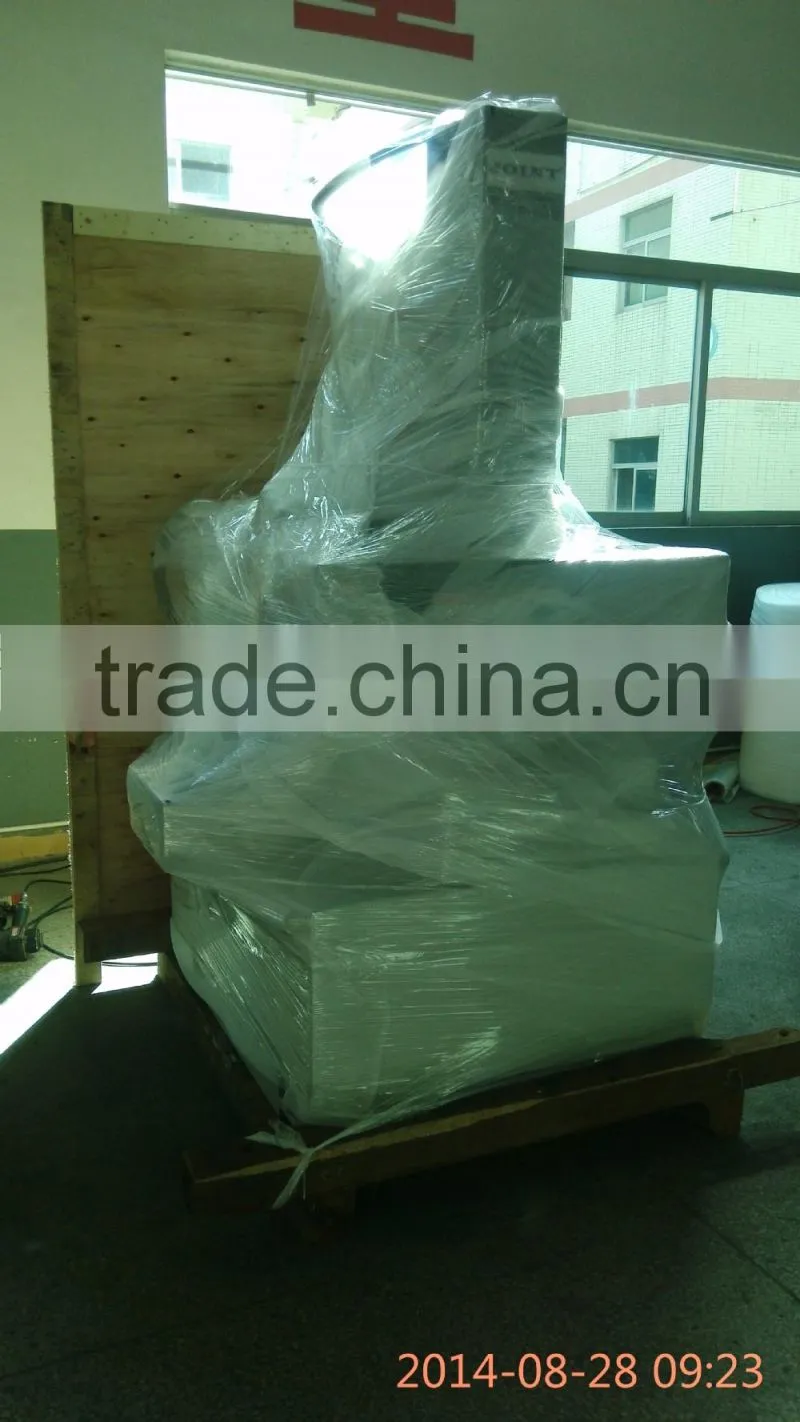

Package Reference Pictures:



Chinese Electric Discharge Machine ZNC320Chinese Electric Discharge Machine ZNC320Chinese Electric Discharge Machine ZNC320Chinese Electric Discharge Machine ZNC320Chinese Electric Discharge Machine ZNC320

After-sales Service:



* 1 year guarantee for whole machine, we offer FOC parts for quality problem within guarantee.

* 24 hours technical calling or e-mail service for any technical questions of our machine.

* We offer detailed User Manual for machine installation, operation, and also for Software.



  Chinese Electric Discharge Machine ZNC320



Our production workshop:



  Our company independent planning and construction of modern vertical machine center production line ,CNC milling machine production line ,Dragon frame CNC machine production line , electric discharge machine production line, milling machine production line, grinder machine production line, precise head assembly workshop etc.



  Chinese Electric Discharge Machine ZNC320



Our development team



We have a group of development team that they have professional theory profound skills, technical specialization, rich experience in the industry of the first-class technical research.



  Chinese Electric Discharge Machine ZNC320

Our certificate of honor:

  • There are 8 Intellectual property rights,5 the patent
  • In 2008, Our own brand”JOINT” has been the top quality machine’s signal in domestic sales JOINT also has been recognized as”Guangdong Famous Brand”
  •  In 2008, Milling machine was recognized as” TOP 10 Famous Brand of Milling Machine “ in China
  • ,In 2011,our company has been recognized as” national grade HI-Tech Enterprise”.
  • The company set up a ISO9001:2000 quality guarantee system
  • our product through “the country machine quality supervision and inspection center “certification testing

Chinese Electric Discharge Machine ZNC320
