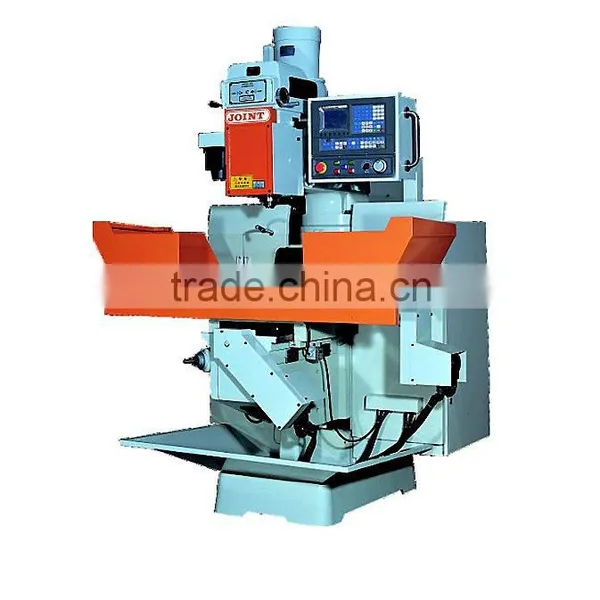

JOINT brand Knee type NC milling machine 4k/4ki

Knee type NC milling machine 4K/4KI

Specifications

High quality resinify cast,ageing treatment
Taiwan high precise nc milling head,variable speed

High quality resinify cast,ageing treatment.
Taiwan high precise nc milling head,variable speed.

Design of the overall enhanced ram.

Milling head and the machine body scrapped accordingly to assure high accuracy.

Processing accuracy reaches 0.02-0.03mm.

Design of overall enhanced ram:

Design of the overall enhanced ram is used to assure high rigidity.

Research process:

Great touching area exists between integral bending arm(ram) and milling head,assure stability and long-time accuracy.

Simple variable(Variable speed)

There is no need for belt or gear shift operation.Operators can operate the hand wheel on the milling head to change speed.

After-sales services:

Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.

Photos:

1.Workshop:

Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.

2.Research and Development team:

We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.

3.Certificate and Honour:

1.8 Intellectual property rights and 5 the patents

2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.

3.From 2004 to 2007,we have been granted with "Top 100 Metal Cutting Machine Tool Manufacturers" in China.

4.In 2011,we have been granted as "National Grade HI-Tech Enterprise".

5.We have introduced ISO9001:2008 in 2009.

6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.

4.Accessories for milling machine:

5.Exihibition in Shenzhen:
