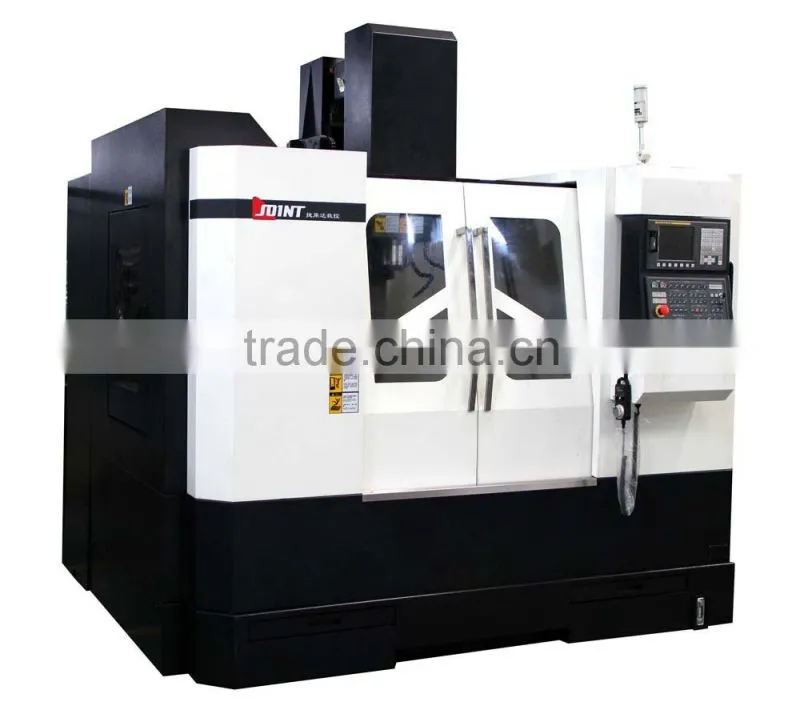

Help CenterCNC Milling Machine Center (VMC850C )
Related Products
Welcome to Shenzhen Joint Industry Co.,Ltd.
Features:
1. Mehanite casting,computer analysis facilities are used in its manufacturing,
wide distance slide way makes outstanding rigidity.
2.Pre-pressed and pre-tense double screw assures feeding high accuracy.
Special design of slide way and auto lubrication system ensures the accuracy
long-time of the machine.
3.Precisely scrapped and Turcite B coated slide way makes machines run smoothly.
4.X,Y and Z axis are assembled with hard way,The slide way is hardened and heat
treated,and the other side is coated by Turcite B,and manually scrapped.Machine
body is built into one piece,so the machine could be heavy loaded.

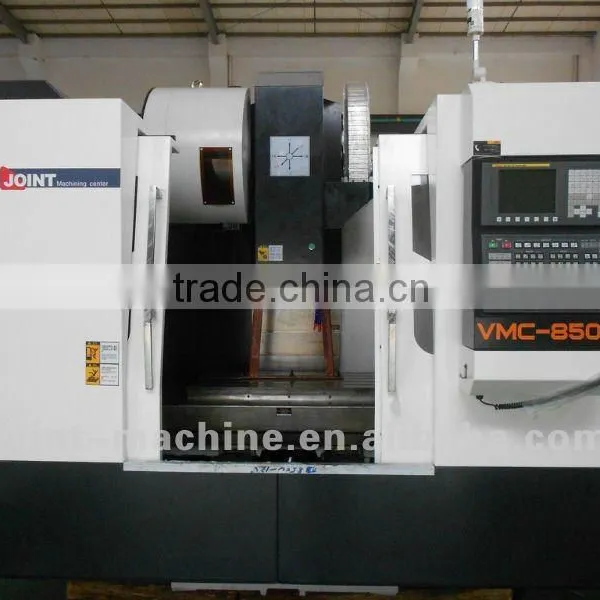

Specification:Vertical Machine Center VMC850C
| Model | VMC850C |
| Table size | 10O0*530mm |
| Travel (Longitude (X)) | 800mm |
| Travel (Crossward (Y)) | 500mm |
| Travel (Vertical (Z)) | 700mm |
| Distance between spindle and table | 110-810mm |
| Distance between spindle and column | 575mm |
| Spindle (Rotation speed) | 8000/10000RPM |
| Spindle (Taper) | BT40 |
| Spindle (Motor) | 7.5kw |
| Rapid feed (Longitude(X)) | 12m/min |
| Rapid feed (Crossward(Y)) | 12m/min |
| Rapid feed (Vertical(Z)) | 10m/min |
| Cutting feed | 8m/min |
| Positioning accuracy | 0.008mm/m |
| Min enactment move unit | 0.001mm |
| Dimension(L*W*H) | 2750*2500*2500mm |
| Net weight | 5500kg |
| Max loaded of table | 600kg |
Accessories:
1.Standard accessoires:
Control system
Electronic hand wheel
Cover
Auto lubrication of slide way
Coolant system
Operation manual of machine
Operation manual of control system
Cutting fluid and filter system
Stainless steel covers of slide way
Alarming light
Hammer balance
Tool and toolbox
2.Optional accessories:
Milling chuck and tool unlock
Arm type or umbrella type tool magazine
Auto chip conveyor
Oil coolant
The fourth axis NC dividing head or rotary table
Heat exchanger
Brand and origin country of main parts of VMC850C
ITEM |
Brand |
Place of Origin |
Body |
Joint |
China |
Controll |
Fanuc OI-MD/α |
Japan |
Spindle Motor |
Fanuc |
Japan |
X/Y/Z motor |
Fanuc |
Japan |
Spindle |
Roy |
TW |
Ball screw |
Hi-win/PMI |
TW |
Bearing |
NSK |
Japan |
Locknut |
Yingxi |
TW |
Coupling |
R+W |
German |
Coolant system |
Walrus |
TW |
Auto lubrication system |
Bijur Delimon |
China |
Tool magazine |
Deta |
TW |
Pneumatic system |
SHAKO |
TW |
Transformer |
Fujie |
China |
Alarm light |
Xifeng |
China |
Working light |
Tiancheng |
TW |
Electronic Handwheel |
Sumtak |
Japan |
Main electric parts |
Schneider |
France |
DC regulated power supply |
Mingwei |
TW |
Oil coolant |
POINT |
TW |
Heat exchanger |
POINT |
TW |
Auto chip conveyor |
Qianguan |
China |
After-sales services:
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Photos:
1.Workshop:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
2.Research and Development team:
We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.
3.Certificate and Honour:
1.8 Intellectual property rights and 5 the patents
2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”.
5.We have introduced ISO9001:2008 in 2009.
6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
