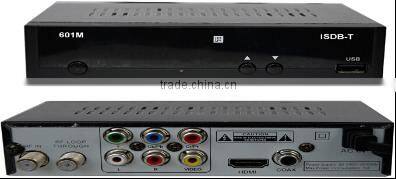

COL601M ISDB-T Set Top Box
Skype ID: yangting965
We are providing complete solution for DVB-C/S/S2/T/T2 system, IPTV system.
Please add my Skype ID or send an inquiry, let's talk more details.
Feature
ü Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant
ü Compatible with 576i/576p/720p/1080i/1080p video formats
ü Auto and manually scan all available TV and radio channels
ü Aspect ratio 16:9 and 4:3, 1000 channels memory, parental control
ü .HDMI, YPbPr, coaxial outputEPG (Electronic Program Guide) with now & next and 7 days events ready
ü Teletext/ Bit Map subtitle, compliant with ETS1
ü Supported 7-Day EPG function, VBI Teletext
ü Support 6MHz software setting Auto/Manual Program search, Multi-language
ü USB 2.0 for PVR, Software upgrade, Multimeida Playback
ü Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK;OFDM Reception Channel:: 13CH-62CH
ü Digital reception covers VHF & UHF band
Specification
Tuner(MXL) |
IF input frequency |
7-68 Ch (470mHz~806mHz) |
Bandwith |
6MHz |
|
Input level |
-90 ~ -5dBm |
|
Input impedance |
50 Ω |
|
Channel Decoding |
Wave form |
COFDM |
Demodulation |
QPSK,16QAM,64QAM, QPSK or DQPSK |
|
FEC |
1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic |
|
Mode |
2K, 4K, 8K |
|
Guard |
1/4, 1/8, 1/16, 1/32 |
|
Demultiplexer |
Standard |
ISO/IEC13818-1, MPEG-4HE AAC |
Input Max. TS |
23.420Mbps |
|
|
Video Decoding
|
Video resolution:1080i/720p/576p/576i(PAL),1080p720p/480p/480i(NTSC) |
|
Standard |
ISO/IEC 13818-2, MPEG-2 MP@ML, H.264 |
|
Aspect ratio |
4:3, 16:9 |
|
Video format |
PAL / NTSC/ AUTO |
|
Audio Decoding |
Standard |
ISO/IEC 13818-3 |
Decoding |
MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3 |
|
Processor and Memory |
CPU |
Mstar 7816 |
Frequency |
216 MHz |
|
DDR RAM |
512MB |
|
Flash Memory |
32MB |
|
|
Video de-emphasis |
CCIR REC.405-1, 1080i |
AV Output |
Video bandwidth |
5.5 MHz |
Video output impedance |
75 Ω |
|
Video output level |
1.0Vp-p |
|
Audio output |
Coaxial, L/R, HDMI |
|
Audio output frequency |
20Hz ~ 20KHz |
|
Audio output impedance |
Low |
|
Audio output level: |
A 1.0Vrms ± 2dB into 10K |
|
Hardware Interface |
Indicators |
Power, signal lock |
IR Receive |
38KHz |
|
AV output |
YUV, HDMI, Composite Video |
|
RF Input |
EC-type IEC169-2 Female |
|
Loop Through Out |
IEC-type IEC169-24 Male |
|
USB |
USB1.1- USB2.0 |
|
Power input Spec |
90—260V AC 8W max |
|
Application
- MMDS digital TV head end
- Satellite digital TV broadcasting
- Terrestrial digital TV
- Image Supervise
- Video-On-Demand (VOD) Long-distance teaching
- Video Conference
Product Equipments
Testing Equipments
Package Process
Our experience: Plenty of practical experiences in building IPTV and DVB systems in many different countries
Our product: Satellite receiver/ Demodulator Decoder IRD, Encoder, Multiplexer, Scrambler, Modulator, Transmitter, Antenna, Set top box, IP Gateway, Transcoder, TS Analyzer, TS Distributor etc.
Our service: Life-long technical support
Warranty: 1 year, basically our headend equipments can work as long as 10 years
Lead time: 2-5 working days
