Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > F-type Male Connector RG11 Crimp-on Connector

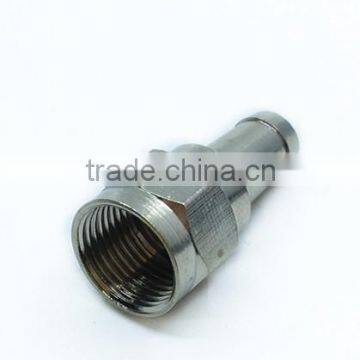

F-type Male Connector RG11 Crimp-on Connector
US$ 0.01 - 0.2
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
xuntong
Model Number:
F087
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai . ningbo . shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F-type Male Connectors RG58/RG59/RG6 Brass RF ConnectorsUS$ 0.01 - 0.2MOQ: 2000 Pieces -
RG59 Coaxial Cable Crimp Type F-type Male Connector With Big HeadUS$ 0.01 - 0.2MOQ: 2000 Pieces
-
F-type Male Connector With Plastic Part RG6 Waterproof ConnectorUS$ 0.01 - 0.2MOQ: 2000 Pieces
-
F-type Male Connectors RG59/RG6 Waterproof ConnectorsUS$ 0.01 - 0.2MOQ: 2000 Pieces
-
F-type Male Connector With Plastic Part RG59 Waterproof ConnectorUS$ 0.01 - 0.2MOQ: 2000 Pieces
Place of Origin
Jiangsu, China
Brand Name
xuntong
Model Number
F087
Type
F
Application
RF
Gender
Male
waterproof connector RG6 RG11 F electrical connector
Product Description
Product Spec
| Characteristic impedance | 75Ω | Temperature range | -65~+165°C | ||
| Frequency range | DC~1GHz | Working Voltage | ≤170V | ||
| Center conductor retention force | ≥0.2 N | Vibration | 100m/s2 (10~500Hz) | ||
| Conductor resistance | Center Conductor | ≤ 10 mΩ | |||
| Outer Conductor | ≤ 5 mΩ | ||||
| Durability | Mating cycles | ≥500 | |||
| Withstanding voltage | ≤500V rms | ||||
| Voltage Standing Wave Ratio | Straight | ≤1.20 | |||
| Right angle | ≤1.30 | ||||
| Parts Name | Material | Plating | |||
| Material And Plating | Body | Brass | Nickel plated | ||
| Pin contact | Brass | Gold or silver plated | |||
| Resilient contact | Tin bronze | Gold or silver plated | |||
| Insulators | PTFE | — | |||
| Gaskets | Silicon rubber | — | |||
| Crimp ferrules | Copper alloy | Nickel or gold plated | |||
| Applicable standard | IEC 60169-24 | ||||
