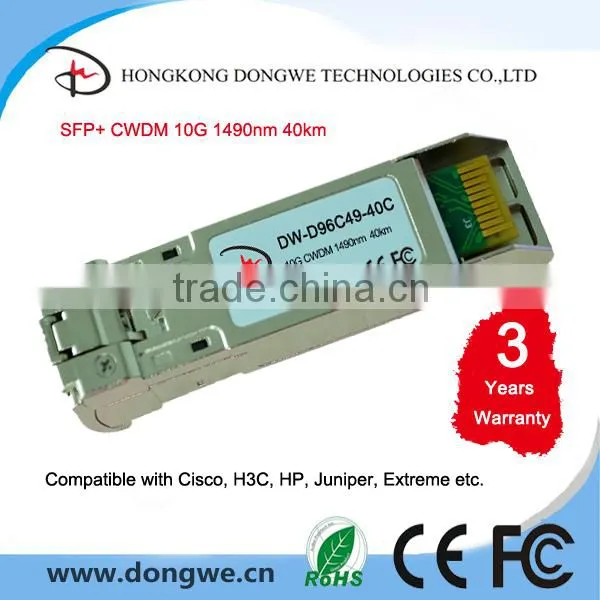

10Gbps SFP+ CWDM Transceiver, 40km with Cisco, HP, H3C etc
- Compliant with SFF-8431,SFF-8432 and IEE802.3ae
- 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
- Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
- Cooled EML transmitter and PIN receiver link length up to 40km
- Low Power Dissipation 1.5W Maximum
- -5ºC to 70ºC Operating Case Temperature
- Single 3.3V power supply
- Diagnostic Performance Monitoring of module temperature, supply Voltages,laser bias current, transmit optical power,receive optical power
- RoHS compliant and lead free
Applications
- 10GBASE-ER (with/without FEC)
- 10G Fiber Channel (with/without FEC)
Product description
DONGWE SFP+ER CWDM Transceiver is a “Limiting module”, designed for 10GBASE-ER, and 2G/4G/8G/10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And thereceiver section consists of a PIN photodiode integrated with a TIA.
All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified inSFF-8472, which allows real-time access to device operating parameters such as transceiver temperature,laser bias
current, transmitted optical power, received optical power and transceiver supply voltage.
Production Show
| Part Number | Product Description |
| DW-D96C47-10C | 10G, dual fiber,1470nm,40km,LC,-5~70 ºC |
| DW-D96C49-10C | 10G, dual fiber,1490nm,40km,LC,-5~70 ºC |
| DW-D96C51-10C | 10G, dual fiber,1510nm,40km,LC,-5~70 ºC |
| DW-D96C53-10C | 10G, dual fiber,1530nm,40km,LC,-5~70 ºC |
| DW-D96C55-40C | 10G, dual fiber,1550nm,40km,LC,-5~70 ºC |
| DW-D96C57-40C | 10G, dual fiber,1570nm,40km,LC,-5~70 ºC |
| DW-D96C59-40C | 10G, dual fiber,1590nm,40km,LC,-5~70 ºC |
| DW-D96C61-40C | 10G, dual fiber,1610nm,40km,LC,-5~70 ºC |
1.Competitive price
2. 3 years warranty
3. Reply your inquiry within 2 hours
4. Have large quantity modules in stock, delivery fast
5. Label can be customized, also ODM and OEM service offered
6. 100% new material and good quality
7. Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.
8. Capacity: 10,000pcs/day
