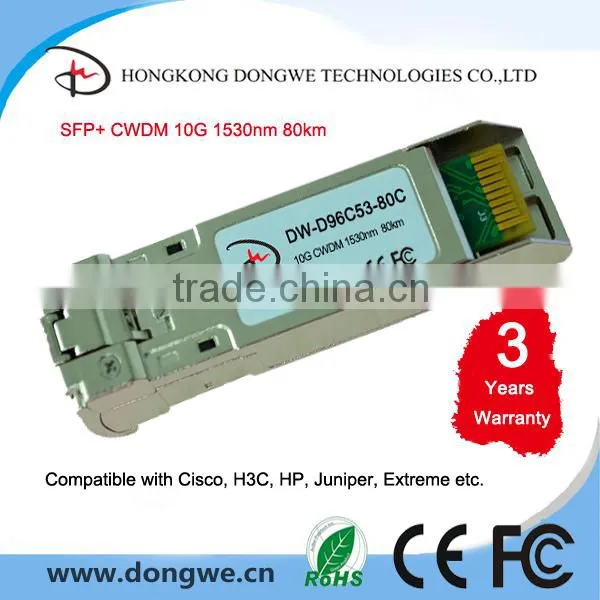

DW-D9653-80C 10Gbps SFP+ CWDM 1510nm Transceiver, 80km
with Cisco, HP, H3C etc
Features
¨ Compliant with SFF-8431,SFF-8432 and IEE802.3ae
¨ 10GBASE-ZR, and 2G/4G/ 8G/10G Fiber Channel applications.
¨ Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
¨ Cooled EML transmitter and APD receiver
¨ link length up to 80km
¨ Low Power Dissipation 1.4W Typical (Maximum:2W)
¨ -5ºC to 70ºC Operating Case Temperature
¨ Single 3.3V power supply
¨ Diagnostic Performance Monitoring of module temperature, supply Voltages,
laser bias current, transmit optical power, receive optical power
¨ RoHS compliant and lead free
Applications
¨ 10G Ethernet
¨ 10G Fiber Channel (with/without FEC)
Product description
DONGWE SFP+ZR CWDM Transceiver is a “Limiting module”, designed for 10G Ethernet, and 2G/4G/ 8G/10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Production Show
| Part Number | Product Description |
| DW-D96C47-80C | 10G, dual finber,1470nm,80km,LC,-5~70 ºC |
| DW-D96C49-80C | 10G, dual finber,1490nm,80km,LC,-5~70 ºC |
| DW-D96C51-80C | 10G, dual finber,1510nm,80km,LC,-5~70 ºC |
| DW-D96C53-80C | 10G, dual finber,1530nm,80km,LC,-5~70 ºC |
| DW-D96C55-80C |
10G, dual finber,1550nm,80km,LC,-5~70 ºC |
| DW-D96C57-80C | 10G, dual finber,1570nm,80km,LC,-5~70 ºC |
| DW-D96C59-80C |
10G, dual finber,1590nm,80km,LC,-5~70 ºC |
| DW-D96C61-80C | 10G, dual finber,1610nm,80km,LC,-5~70 ºC |
1.Competitive price
2. 3 years warranty
3. Reply your inquiry within 2 hours
4. Have large quantity modules in stock, delivery fast
5. Label can be customized, also ODM and OEM service offered
6. 100% new material and good quality
7. Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.
8. Capacity: 10,000pcs/day
