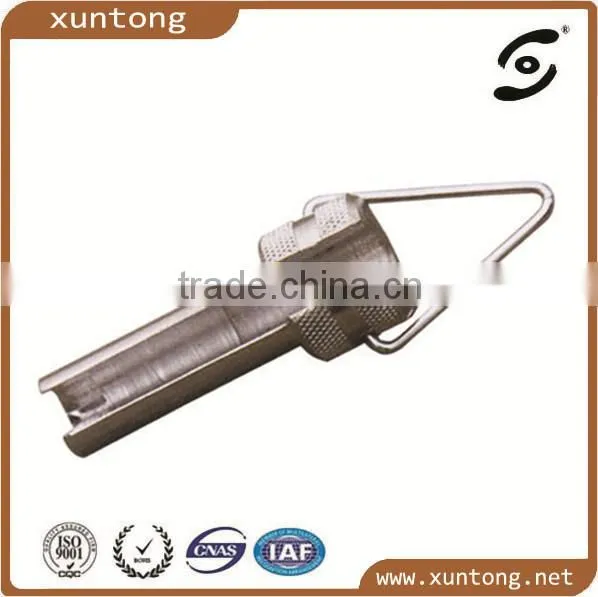

High quality metal clamping tool for f connector
Characteristic impedance |
50Ω 75Ω |
Temperature range |
-40~+85°C |
Frequency range |
DC~11GHz(50Ω) |
Working Voltage |
≤330 VRMS |
DC~1GHz (75Ω) |
|
||
Contact Resistance |
Center Conductor |
≤10 mΩ |
|
Outer Conductor |
≤4 mΩ |
||
Insulation Resistance |
≥ 10000 MΩ |
Insertion Loss |
≤0.24dB(6GHz) |
Durability |
Mating cycles |
≥500 |
|
Dielectric Withstanding Voltage |
≥2500 VRMS |
||
Vibration |
100m/s (10-500Hz), 10g |
|
|
VSWR |
Straight |
≤ 1.25 |
|
Right Angle |
≤ 1.35 |
||
|
Parts Name |
Material |
Plating |
Material And Plating |
Pin Contact |
Brass |
Gold plated |
Socket Contact |
Beryllium or tin bronze |
Gold plated |
|
Resilient Contact |
Beryllium-copper |
Gold plated |
|
Insulator |
PTFE |
— |
|
Crimp Ferrule |
Copper alloy |
Nickel or gold plated |
|
O-ring Sealing |
6146 silicon rubber |
— |
|
1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.
A:Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.
B :How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.
C :I dont know if your product is suitable for us.
XT: Dont worry,we can give our samples to you if you need.
