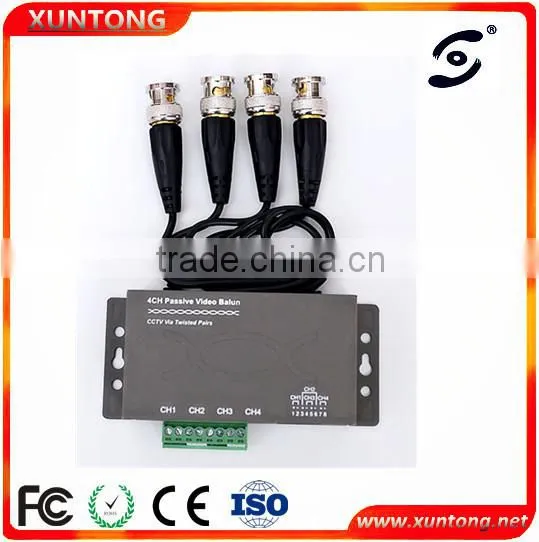

4 Channel CAT5/6 UTP to BNC CCTV Passive Video Balun Male Connector RJ45 Adapter
Characteristic impedance |
75Ω |
Temperature range |
-65~+165°C |
|
Frequency range |
DC~1GHz |
Working Voltage |
≤170V max |
|
Center conductor retention force |
≥0.2 N |
Vibration |
100m/s2 (10~500Hz) |
|
Conductor resistance |
Internal ≤ 10 mΩ |
Mating cycles |
≥500 |
|
External ≤ 5 mΩ |
Withstanding voltage |
≤500V rms |
||
Voltage Standing Wave Ratio |
Straight |
≤1.20 |
||
Right angle |
≤1.30 |
|||
Material And Plating |
Parts Name |
Material |
Plating |
|
Body |
Brass |
nickel plated |
||
Pin contact |
Brass |
gold or silver plated |
||
Resilient contact |
Tin bronze |
gold or silver plated |
||
Insulators |
PTFE |
— |
||
Gaskets |
Silicon rubber |
— |
||
Crimp ferrules |
Copper alloy |
nickel or gold plated |
||
Applicable standard |
IEC 60169-24 |
|||
1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.
A:Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.
B :How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.
C :I dont know if your product is suitable for us.
XT: Dont worry,we can give our samples to you if you need.
