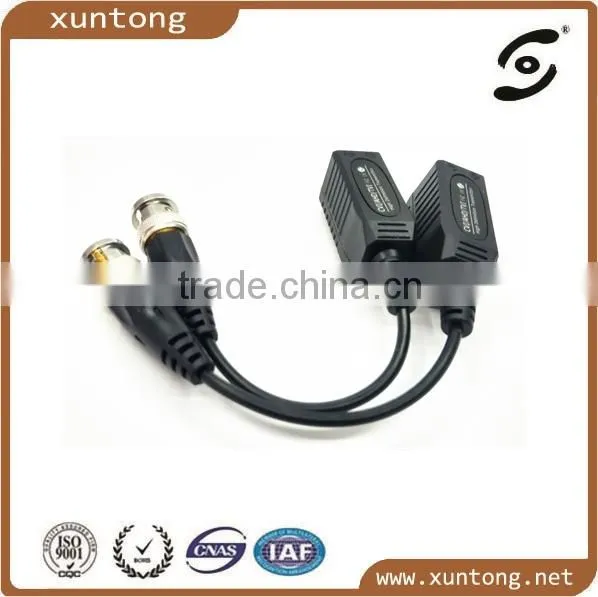

CCTV Coax Video Balun
Characteristic Impedance |
50Ω 75Ω |
Temperature Range |
-30~+80℃ |
Frequency Range |
DC-1GHz(75Ω) |
Working Voltage |
≤500 VRMS |
DC-2GHz(50Ω) |
Dielectric Withstanding Voltage |
1500 VRMS |
|
Contact Resistance |
Inner |
≤10 MΩ |
|
Outer |
≤5 MΩ |
||
Insulation Resistance |
≥1000KΩ |
Durability |
≥500 |
Resistanc |
Inner conductor |
≤2MΩ |
|
Insulation Resistanc |
≥5000MΩ |
||
Attenuation |
0.5dB typ |
Wire Type |
Unshielded Cat-5 or above twisted pair wire |
DC Loop Resistance |
52Ω/1000 ft |
Category Type |
5 or better |
Center Contact |
≤ 1.5Ω |
Outer Contact |
≤ 1Ω |
|
Parts Name |
Material |
Plating |
Material And Plating |
Body |
Brass |
Gold or Nickel |
Connector Parts |
Materials |
Plating Finish |
|
Male Pin |
Brass |
Gold or Nickel |
|
Insulators |
PTFE |
— |
|
1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.
A:Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.
B :How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.
C :I dont know if your product is suitable for us.
XT: Dont worry,we can give our samples to you if you need.
