Home > Products > Encoder Modulator > 4 CH hd-mi/sdi to rf encodulator, h.264/mpeg-2 encoder modulator COL5011U-4M24T
4 CH hd-mi/sdi to rf encodulator, h.264/mpeg-2 encoder modulator COL5011U-4M24T
- 10000 Set / Sets per Month
- Chengdu
- T/T Credit Card
- Dark Red Antique European antique desk lamp telephone for sale
- Antique European brown lamp telephone landline with home phones
- Antique European antique desk lamp home phones
- Antique gramophone gift music box player
- Classical turntable gramophone gift music box player
- Modern turntable gramophone gift music box player
Product Details
Brand Name: | Colable | Model Number: | COL5011U-4M24T | Place of Origin: | Sichuan, China |
Product Description

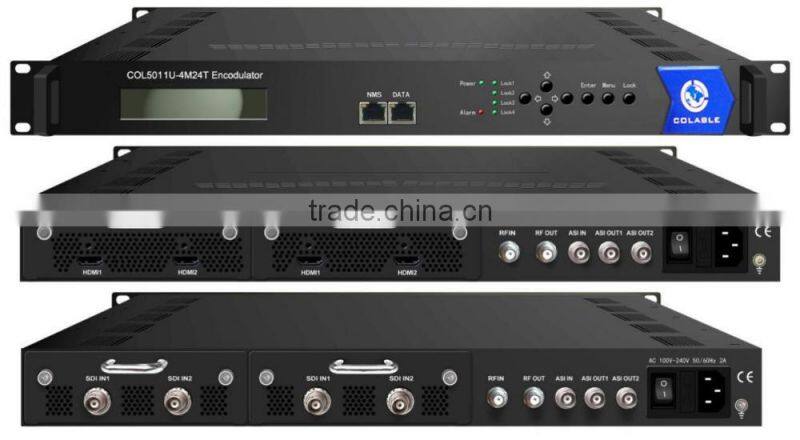

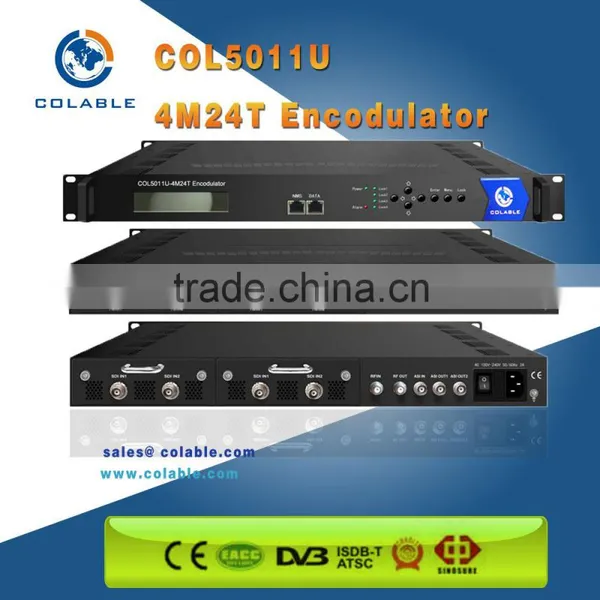

COL5011U-4M24T 4 CH hd-mi/sdi to rf encodulator, h.264/mpeg-2 encoder modulator
Outline
COL5011U-4M24T series products are our new breakthrough all-in-one devices which integrate encoding
(MPEG-2, MPEG-4/AVC H.264) and modulating to convert V/A signals into DVB-C/T/ATSC-T/ISDB-T RF
output. It has equipped with 4 HDMI channels input and 1 ASI input and output with 2 ASI ports and 1 UDP
IP (4*SPTS) port.It adopts inner drawer-type structural design which greatly facilitates the change of encoding
modules (HDMI/SDI/…) as needed.The signals source could be from satellite receivers, closedcircuit television
cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs or STBs etc.With
its various inputs available, our COL5011U-4M24T series products are wildly used in public places such as
metro, market hall, theatre, hotels, resorts, and etc for advertising, monitoring, training and educating in
company, schools, campuses, hospital… It’s a good choice to offer HD channels and more.
Features
- MPEG2 & MPEG4 AVC/H.264 HD/SD encoding
- Huge video buffer (for SDI interface), free to switch video sources
- MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, AC3 2.0 (Optional) audio encoding
- Up to 1920*1080@50P/60P supported (MPEG4 AVC/H.264)
- Up to 1920*1080@50I/60I supported (MPEG2 HD)
- 4* HDMI/SDI input
- 1*ASI input for re-mux; 1*RF input for mix
- Support CC (closed caption ) for SDI interface (Optional)
- Simultaneously encoding each channel more than 10Mbps
- DVB-C/DVB-T/ATSC-T/ISDB-T RF out
- Support 4 * SPTS output
- Extremely low delay
- LCN support (Logical Channel Number)
- Excellent modulation quality MER≥42dB
- RF Frequency range 30Mhz~960Mhz
- LCD display, Remote control and firmware
- Web NMS management; Updates via web
- Lowest cost per channel
Specifications
Encoding section | ||||
Video
| Encoding | MPEG2,MPEG4 AVC/H.264 | ||
Input | HDMI*4(or SDI*4) | |||
Resolution | 1920*1080-60p,1920*1080-50p, (-for MPEG4 AVC/H.264 only 1920*1080-60i,1920*1080-50i 1280*720-60p,1280*720-50p 720*480-60i,720*576-50i | |||
Low delay | Normal,mode1mode2 | |||
Audio | encoding | MPEG1 Layer11,MPEG2-AAC MPEG4-AAC,AC3 2.0(optional) | ||
Sample rate | 48KHZ | |||
Bit rate | 64kbps,96kbps,128kbps,192kbps,256kbps,320kbps. | |||
Modulator Section | ||||
DVB-C
| Standard | J.83A,J,83B,J.83C | ||
MER | ≥42dB | |||
J.83A | Constellation | 16/32/64/128/256QAM | ||
bandwidth | 8M | |||
J.83B | Constellation | 64QAM/256QAM | ||
bandwidth | 6M | |||
J.83C | Constellation | 64QAM/256QAM | ||
bandwidth | 6M | |||
RF outputevel | -30~-10dbm(77~97dbuV),0.1db step | |||
symbolrate | 5.000~9.000Msps adjustable | |||
DVB-T | Standard | EN300744 | ||
Bandwidth | 6M,7M,8M | |||
Constellaton | QPSK,16QAM,64QAM, | |||
Code rate | 1/2,2/3,3/4,5/6,7/8. | |||
Guard lnterval | 1/32,1/16.1/8,1/4 | |||
Transmission Mode: | 2K,8K | |||
MER | ≥42dB | |||
RF frequency | 30~960MHz,1KHz step | |||
RF Out | COFDM DVB-T out | |||
RF output level | -30~-10dbm(77~97dbuV),0.1db step | |||
ATSC-T | Standard | ATSC A/53 | ||
MER | ≥42dB | |||
RF frequency | 30~960MHz,1KHz step | |||
RF output level | -26~10dbm(81~97dbuv),0.1db step | |||
Constellation | 8VSB | |||
ISDB- T | Standard | ARIB STB-B31 | ||
Bandwidth | 6M | |||
Constellation | DQPSK,QPSK,16QAM,64QAM | |||
Guard lnterval | 1/32,1/16,1/8.1/4 | |||
Transmission Mode | 2k,4k,8k | |||
MER | ≥42dB | |||
RF frequency | 30~960MHz,1KHz,step | |||
RF output level | -30~-10dbm (77~97 dbuv),0.1db step |
System | Local interface | LCD+control buttons |
Remote management | Web NMS | |
Output | ASI out (BNC type) | |
4*SPTS out (RJ45,100M) | ||
NMS interface | RJ45,100M | |
Language | English | |
General | Power supply | AC 100V~240V |
Dimensions | 420*400*44mm | |
Weight | 4.5Kgs | |
Operation temperature | 0~45℃ |
COL5011U Series Option:
DVB-C/T / ATSC / ISDB-T
- 4/8 CVBS: MPEG2,
- 1/2/4/8 HDMI: MPEG4 AVC/H.264
- 1/2/4/8 SDI: MPEG4 AVC/H.264
- 4 HDMI/SDI: MPEG-2,MPEG-4 AVC/H.264
DVB-S/S2
- 1 HDMI or SDI(950-2150M)/2 HDMI or SDI(950-1050M
- 1 model(2AV+Ypbpr)---950-2150M
- 2 model(2*(2AV+Ypbpr))---950-1050M
Our advantages
Products Qulity: Most of our products get CE approved:set top box have report from State
Administration for Entry Exit Inspection and Quarantine.
Technical Support: Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first
time as long as our software upgrade or new management software version come out .
Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.
Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have long
erm cooperated carriers for common air & sea delivery with cheap price and high speed.
Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.

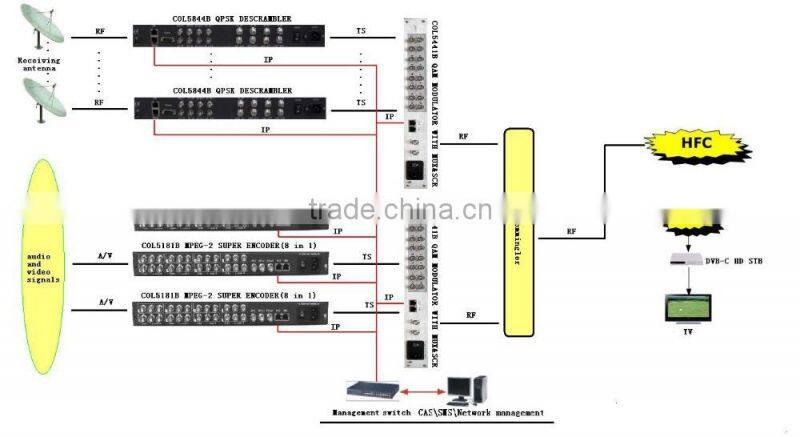

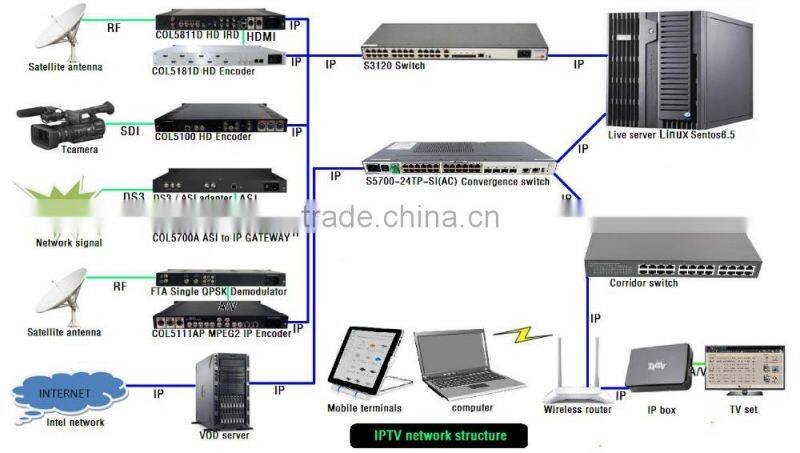

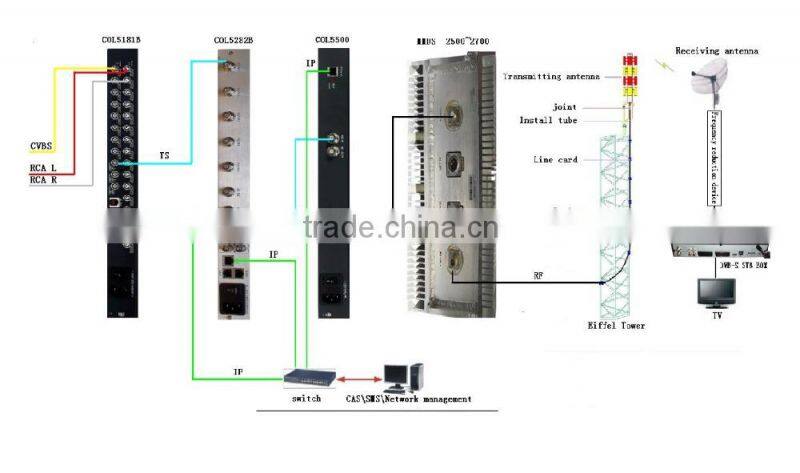

Some pictures for reference
