Digital TV DVB-S/S2 Encoder Modulator,hd mi to rf Modulator COL5011U-B

Digital TV DVB-S/S2 Encoder Modulator,hd mi to rf Modulator COL5011U-B thumbnail-1
Digital TV DVB-S/S2 Encoder Modulator,hd mi to rf Modulator COL5011U-B photo-1
US$ 1 - 3,199 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Colable
Model Number:
COL5011U-B
Place of Origin:
Sichuan, China
Contact Supplier Request Quote Chat Now
Colable Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Colable
Model Number COL5011U-B
Place of Origin Sichuan, China

COL5011U-B Digital TV DVB-S/S2 encoder modulator,hd mi to rf modulator



Outline



COL5011U-B DVB-S/S2 products are Our all-in-one devices which integrate encoding, multiplexing and

modulation to convert V/A signals into DVB-S/S2 RF output.. Its pluggable design makes it convenient

to change encoding module (CVBS/SDI/HDMI/YPbPr…) as needed. It is also equipped with 1 channel

ASI input. It outputs ASI and DVB-S/S2 RF (IF Optional) in the same time. The signal source  could be

from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web  based operation interface to

effectively manage the device and carefully protect your content with its BISS function. Featured with its

high performance and low cost, 5011U-B is especially adequate for the TV station to encode  SD/HD

programs and output to uplink.



Features

  • MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional
  • CVBS/SDI/HDMI/YPbPr…signals in optional, pluggable and changeable encoding modules
  • 1*ASI in
  • Support DVB-S/S2 RF (IF Optional) output and ASI output
  • LCN support (Logical Channel Number)
  • Output Frequency: 950-2150MHz; IF: 50-200MHz
  • “Low latency”or “Logo insertion from USB Port”function alternative (For SDI  HDMI+YPbPr+CVBS interface)
  • Support BISS scrambling
  • Support RF 24V power output
  • Support 10MHz reference clock
  • Support Web NMS and front panel LCD & Keyboard control
  • Upgrade device through web NMS

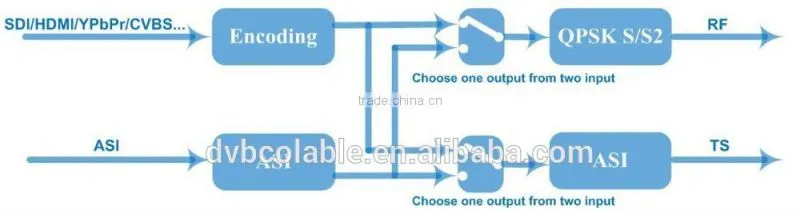

Principle Chart



 Digital TV DVB-S/S2 encoder modulator,hd mi to rf modulator COL5011U-B



Specifications



 Digital TV DVB-S/S2 encoder modulator,hd mi to rf modulator COL5011U-B

Single SDI Encoding Input

(“Low latency” or “Logo insertion from USB Port” function alternative)



Video





Encoding

MPEG2; MPEG4 AVC/H.264

Input

SDI*1

Resolution

1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only)

1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P,

720*480_60i, 720*576_50i

Audio





Encoding

MPEG1 Layer II, (MPEG2-AAC, MPEG4-AAC  and DD A3C optional, as per your order)

Sample rate

48KHz

Bit rate

64kbps, 96kbps, 128kbps, 192kbps, 256kbps, 320kbps





Digital TV DVB-S/S2 encoder modulator,hd mi to rf modulator COL5011U-B

HDMI/YPbPr/CVBS 3-in-1 Encoding Input

(“Low latency” or “Logo insertion from USB Port” function alternative)



Video (HDMI)

Encoding

MPEG2; MPEG4 AVC/H.264

Interface

HDMI*1

Resolution

1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only)

1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50

Audio (HDMI)

Encoding

MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC

(DD AC3 optional, as per your order)

Interface

HDMI*1

Sample rate

48KHz

Bit rate

64/96/128/ 192/256/320kbps

Video (YPbPr/CVBS)

Encoding

MPEG2; MPEG4 AVC/H.264

Interface

YPbPr*1/CVBS *1

Resolution

CVBS: 720x576_50i (PAL); 720x480_60i (NTSC)

YPbPr: 1920*1080_60i, 1920*1080_50i;

1280*720_60p, 1280*720_50P

Audio (L/R)

Encoding

MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC

(DD AC3 optional, as per your order)

Interface

1*Stereo/2*mono

Sample rate

48KHz



Digital TV DVB-S/S2 encoder modulator,hd mi to rf modulator COL5011U-B

2*(S-Video + YPbPr + CVBS) Encoding Input

(Low Latency Function Optional)



Video

Encoding

1: MPEG-2 MP@ML(4:2:0)

2: MPEG2; MPEG4 AVC/H.264 (With Low latency)

Input

S-Video/YPbPr/CVBS*2 (RCA Type)

Resolution

720*576 (PAL), 720*480 (NTSC)

Audio

Encoding

1: MPEG1 Layer II

2: MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC

(DD AC3 optional, as per your order)

Input

Unbalanced 1 stereo/2 Mono per  channel

Sample rate

48KHz

Bit rate

64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps



















General



Input Interface

CVBS /SDI /HDMI/YPbPr… optional

1×ASI input, BNC interface

Output

DVB-S/S2 RF (IF Optional) output; ASI output









DVB-S/S2

Modulation Section

DVB-S QPSK: FEC 1/2,2/3,3/4,5/6,7/8

DVB-S2 QPSK: FEC 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10

DVB-S2 8PSK FEC 3/5,2/3,3/4,5/6,8/9,9/10

RF output: 950.00-2150.00 MHz, 10Khz step

IF output: 50-200MHz

Symbol rate: 0.05-20.0Msps

Roll Off: 0.35, 0.25, 0.2

Output level: -10db~-41.5db



System

Local Control

LCD + control buttons

Remote Control

Web NMS

Low Latency Mode

Normal, Mode 1, Mode 2

Alternative

Logo insertion

xx.raw

Language

English

RF 24V Power Out

Support



Physical Specification



Dimension

410×460×44mm (W*L*H)

Temperature

0~45℃(operation), -20~80℃(storage)

Weight

4.5kgs

Power Supply

AC 100-240V 50/60Hz



  Digital TV DVB-S/S2 encoder modulator,hd mi to rf modulator COL5011U-B



Digital TV DVB-S/S2 encoder modulator,hd mi to rf modulator COL5011U-B





Our advantages



 Products Qulity:  Most of our products get CE approved:set top box have report from State

  Administration for Entry Exit Inspection and Quarantine.



 Technical Support: Our R&D department is composed br the most experienced engineer with

 young university graduate,bring new energy continuously. Customers will be informed at first

 time as long as our software upgrade or new management software version come out .



 Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.

 Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have  long

  erm cooperated carriers for common air & sea delivery with cheap price and high speed.



 Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.

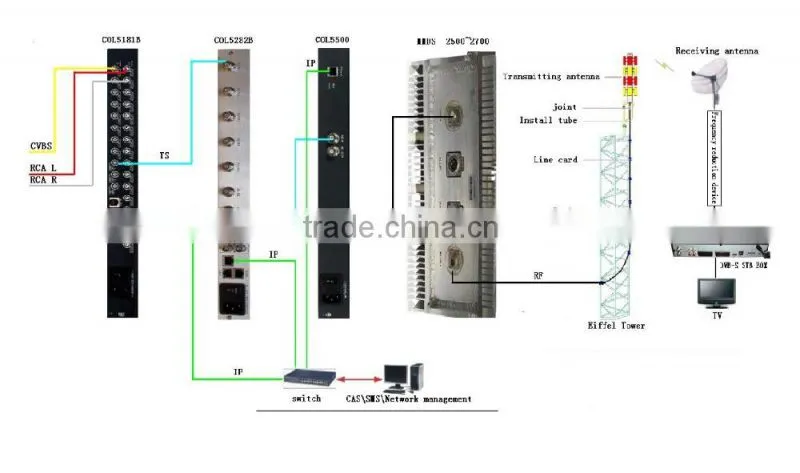

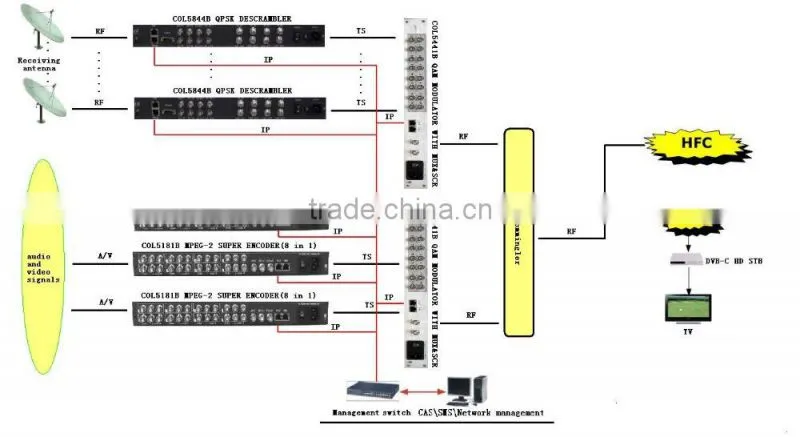

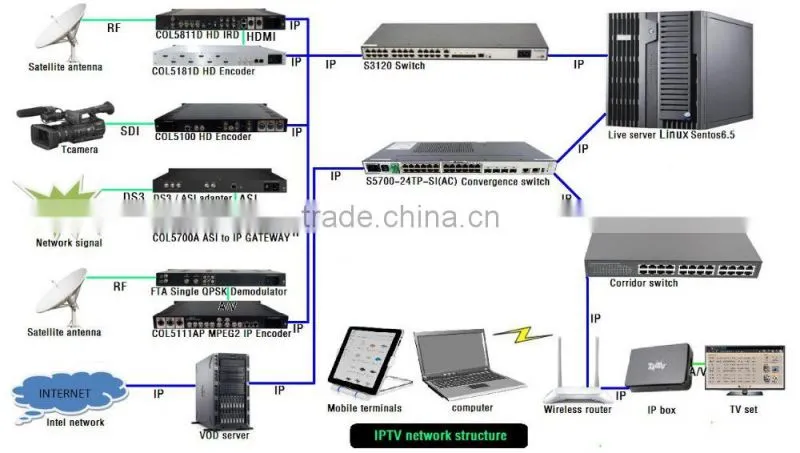

Some pictures for reference

  Digital TV DVB-S/S2 encoder modulator,hd mi to rf modulator COL5011U-B
Digital TV DVB-S/S2 encoder modulator,hd mi to rf modulator COL5011U-B

Digital TV DVB-S/S2 encoder modulator,hd mi to rf modulator COL5011U-B








Digital TV DVB-S/S2 encoder modulator,hd mi to rf modulator COL5011U-B
