Model:COL5100D
4 channel sdi to ip udp encoder h.264 video encoding

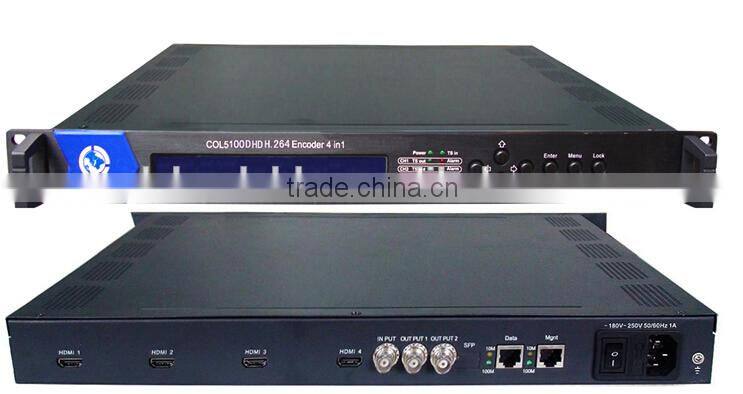

The COL5100D HD H.264 Encoder 4 in 1 has 4 channel HDMI input interfaces, supporting MPEG4AVC/H.264 High Profile code format. It is a professional HD audio & video encoding and multiplexing device with powerful functionality. This device can simultaneously encode 4 channel HD programs, moreover, it has an ASI input and can multiplex the input TS with the 4 encoded SPTS to generate a MPTS output. Also, the PSI/SI information can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems.
Features
- Audio MPEG1 Layer 2, AAC(optional)
- 4 channel HDMI inputs, 1 ASI input supports multiplexing
- H.264/AVC High Profile Level 4.0 video encoding support, advanced video pretreatment algorithm
- Real- time effective output bit-rate monitoring
- 720P, 1080I HD video format support
- MPTS ASI output
- LCD / keyboard operating
- NMS support
- MPTS over UDP unicast/multicast output
Specifications
Input |
4×HDMI inputs |
|
1×ASI input, BNC interface | ||
Video |
Resolution |
1920×1080I_60i, 1920×1080I_50i |
1280×720_60p, 1280×720_50p | ||
Encoding |
MPEG4 AVC/H.264 High Profile Level 4.0 for HD |
|
Bit-rate |
0.8Mbps~20Mbps (each channel) |
|
Rate Control |
CBR/VBR |
|
GOP Structure |
IBBP |
|
Advanced Pretreatment |
De-interlacing, noise reduction, sharpening |
|
Audio |
Encoding |
MPEG-1 Layer 2 |
Sampling rate |
48KHz, 44.1KHz,32KHz |
|
Resolution |
24-bit |
|
Bit-rate |
64Kb/s~384Kb/s each channel |
|
Multiplexing |
1×ASI input multiplexed with 4 encoding channel SPTS |
|
Stream output |
2×ASI outputs, BNC interface |
|
MPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast) | ||
System function |
LCD/keyboard operating, NMS support Chinese-English control interface |
|
Ethernet software upgrade | ||
General |
Dimensions
|
480mm×456mm×45mm |
Approx weight |
5Kg |
|
Temperature range |
0~45°C(Operating), -20~80°C(Storage) |
|
Power Requirements |
AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
Power consumption |
25W |
|
1 |
LCD display interface |
|
2 |
Indicator |
Power : Power indicator |
TS in: input lock indicator | ||
CH1 TS out – CH4 TS out: device starts to encode and output TS | ||
CH1 Alarm – CH4 Alarm: device stops encoding or encoding error | ||
3 |
Up/Down/Left/Right key |
|
4 |
Enter: Confirm key |
|
5 |
Menu: Menu key |
|
6 |
Lock: Lock key |
|
Rear panel:
7 |
Input interface (4×HDMI inputs) |
8 |
ASI input multiplex interface |
9 |
2×ASI output multiplex interfaces |
10 |
10M/100M network data interface |
11 |
10M/100M network management interface |
12 |
Power switch and socket |
13 |
Grounding pole |
Application system:
-DVB-C cable tv system:
-DVB-C IP networking system:
-Terrestrial Broadcasting system:
-IPTV stream Encoder (LAN)
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
