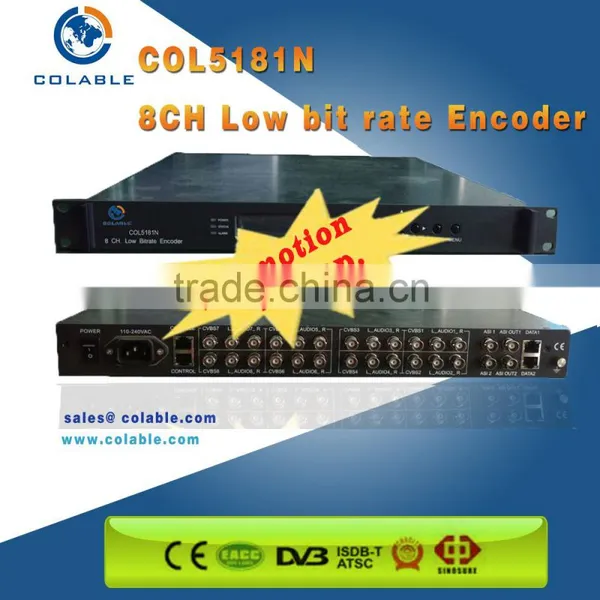

The cheapest catv/iptv audio and video mpeg2 encoder 8 channels with mux COL5181N
Outline
COL5181N MPEG-2 super encoder supports 8 AV (8 CVBS and 8 unbalanced analogue stereo audio) and 1 ASI input,
after multiplexing process, it gives ASI and IP output at the same time. Users can manage the device through
the NMS. Besides, it supports MPEG-2 video encoding, and the audio encoding supports MPEG1-LAYER 2, AAC and
AC3. In conclusion, its high compatibility and integrated design make this device widely used in a variety of digital
TV broadcasting systems
Features
- 8 channel video audio input, MPEG2 SUPER coded, multiplexed, ASI output.
- Low bit rate, MPEG4 1.5Mbps, MPEG2 1.8Mbps for D1 resolution
- Can multiplex another Transport Stream (ASI input) with the local 8 channel Transport Stream, and ASI out. Several equipments can be cascaded and multiplexed to be one Transport Stream out.
- Flexible 1~15Mbps bit rate for each channel, output bit rate is 1~216Mbps optional
- Support PAL and NTSC video system (PAL/NTSC)
- Output PID can be modified
- Auto generate PSI/SI(PAT,PMT,SDT,NIT,TDT,EIT)table
- Remote management by special network software
Specifications
Input |
8×CVBS inputs , BNC interface |
||
8 pairs unbalanced stereo audio inputs, BNC interface | |||
1×ASI input, BNC interface | |||
Video |
Resolution |
PAL: 720×576_50i ,704*576_50i,640*576_50i, 320*288_50i, 176*288_50i, 176*144_50i |
|
|
NTSC:720×480_60i, 544×480_60i,352×480_60i 320*240_60i ,176*240_60i, 176*120_60i | |||
Encoding |
MPEG-2 |
||
Bit-rate |
0.8~20 Mbps for MPEG-2 encoding |
||
Bit-rate control |
CBR/VBR |
||
GOP Type |
IBBP |
||
Advanced Pretreatment |
De-interlacing, noise reduction, sharpening |
||
Audio |
Encoding |
MPEG1 Audio Layer 2,LC-AAC,HE-AAC |
|
Sample Frequency |
48KHz |
||
Sample accuracy |
24 bit |
||
Bit-rate |
32Kb/s~384Kb/s (each channel) |
||
Multiplexing |
1 ASI input multiplexed with local 8 channels TS |
||
Stream Output |
2 × ASI outputs, BNC interface MPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast), 8 SPTS( optional) |
||
System Function |
LCD/keyboard operating, NMS support, |
||
Chinese-English control interface | |||
Ethernet software upgrade | |||
General |
Demission (WxLxH) |
482mm×455mm×44.5mm |
|
Weight |
4kg |
||
Temperature |
0~45℃(Working),-20~80℃(Storage) |
||
Power Supply |
AC 100V±10%,50/60Hz or AC 220V±10%,50/60Hz |
||
Power Consumption |
17.6W |
||
Application system:
-DVB-C cable tv system:
-DVB-C IP networking system:
-Terrestrial Broadcasting system:
-IPTV stream Encoder (LAN)
Asking for more information? please feel free to directly chat with Betty.Li:
Or move your finger and send an inquiry to Supplier on the right side.
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
