Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Media Converter 10/100M Single Mode Single Fiber ST 1310nm 40KM Best Price!

Media Converter 10/100M Single Mode Single Fiber ST 1310nm 40KM Best Price!

Name: Media Converter 10/100M Single Mode Single Fiber ST 1310nm 40KM Best Price!
Brand: DONGWE
SKU: 132177707
Availability: InStock

Media Converter 10/100M Single Mode Single Fiber ST 1310nm 40KM Best Price! thumbnail-1

Media Converter 10/100M Single Mode Single Fiber ST 1310nm 40KM Best Price! thumbnail-2

Media Converter 10/100M Single Mode Single Fiber ST 1310nm 40KM Best Price! photo-1

Media Converter 10/100M Single Mode Single Fiber ST 1310nm 40KM Best Price! photo-2

US$ 1 - 20 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DONGWE

Model Number:

DW-MCS135-40

Contact Supplier Request Quote Chat Now

Shenzhen Dongwe Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DONGWE

Model Number DW-MCS135-40

10/100M Single Mode Single Fiber SC/FC/ST 1310nm 40KM Slot Media converter Customize External Power Supply

Product Description

Features:

LFPT (Link Fault Pass Through) Function optional
Provide one Single Fiber Connector and one UTP Connector
Fully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/FX standard
Auto-detection of half/full duplex transfer mode for Tx port
Auto-negotiation of 10/100Mbps rate and Auto-MDI/MDIX for Tx port
Provide switch configuration of half/full duplex transfer mode for Fx port
Extend fiber distance up to 120km for single-mode fiber
Indication light:FEF,SPD,100,Link/Act,PWR,FDX
Easy-to-view LED indicators provides status to easily monitor network activity
External power supply and Internal Power Supply

Product description:

DW-MCS135-40 Media Converter is 10/100Mbps Fast Ethernet Converter. The Converter mediates between a 10/100Base-Tx segment and a 100Base-FX segment. It is primarily designed for large,

higher speed/bandwidth demanding workgroups that require expansion of the Ethernet network. It can extend the conventional 10M Ethernet or 100M Fast Ethernet to 20km-120km via the fast Ethernet Fiber-optical Line. It is high-performance, cost effective and flexible solutions for a wide range of applications

in the field of LAN campus network.

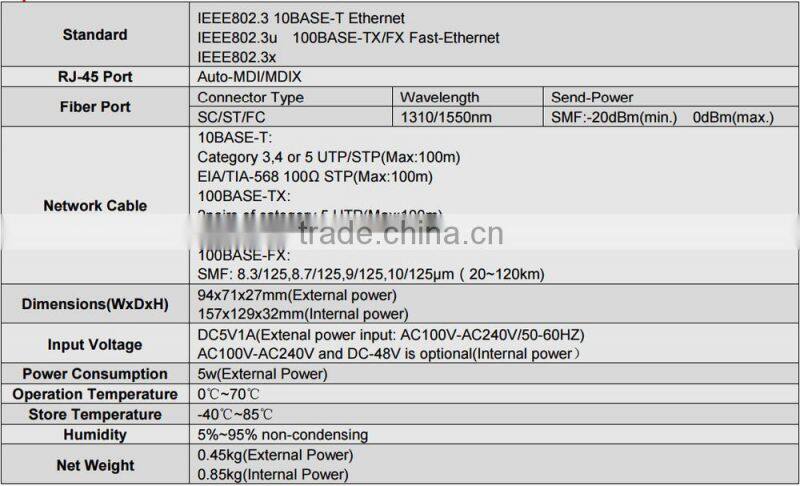

Specification:

* For further reports, please contact us for update.

Order Information:

Part Number	Product Description
DW-MCS154-120	10/100M,WDM,1550/1490,120km,SC
DW-MCS145-120	10/100M,WDM,1490/1550,120km,SC
DW-MCS154-100	10/100M,WDM,1550/1490,100km,SC
DW-MCS145-100	10/100M,WDM,1490/1550,100km,SC
DW-MCS153-80	10/100M,WDM,1550/1310,80km,SC
DW-MCS135-80	10/100M,WDM,1310/1550,80km,SC
DW-MCS153-60	10/100M,WDM,1550/1310,60km,SC
DW-MCS135-60	10/100M,WDM,1310/1550,60km,SC
DW-MCS153-40	10/100M,WDM,1550/1310,40km,SC
DW-MCS135-40	10/100M,WDM,1310/1550,40km,SC
DW-MCS153-20	10/100M,WDM,1550/1310,20km,SC
DW-MCS135-20	10/100M,WDM,1310/1550,20km,SC

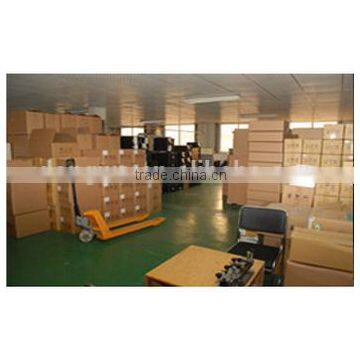

Production Show

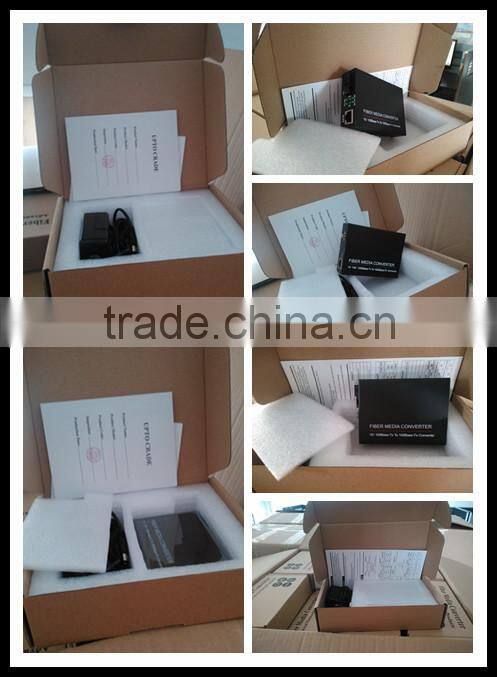

Packaging & Shipping

Box Package

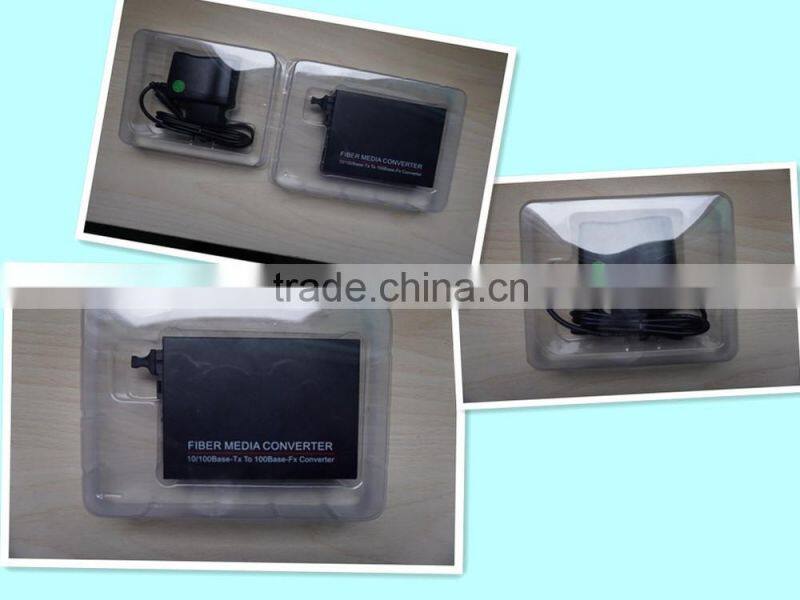

Plastic Package

Shipment:

Why is DONGWE

1. Competitive price

2. 3 years warranty

3. Reply your inquiry within 2 hours

4. Have large quantity modules in stock, delivery fast

5. Label can be customized, also ODM and OEM service offered

6. 100% new material and good quality

7. Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.

8. Capacity: 10,000pcs/day

9. Certificates below:

Contacts US

Address: B2602, 6/F,Launch Industrial Park, Wuhe Road,

Batian,longgang, Shenzhen, China

Tel:86-755-85292799/818 Fax:86-755-86151614

Mobile: 86-18923418970

Skype:dongwe049

Web:

We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
