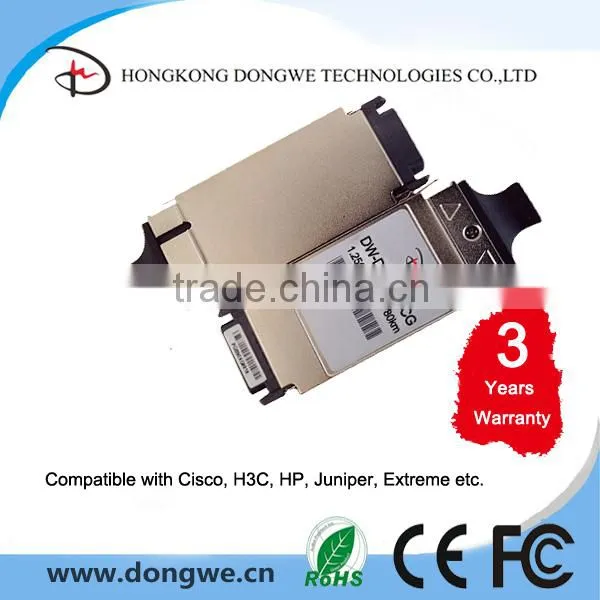

1.25G, 1000BASE-ZX GBIC Transceiver, 1550nm, 80km, Optic Module/Transceiver

Name: 1.25G, 1000BASE-ZX GBIC Transceiver, 1550nm, 80km, Optic Module/Transceiver
Brand: DONGWE
SKU: 132176561

1.25G, 1000BASE-ZX GBIC Transceiver, 1550nm, 80km, Optic Module/Transceiver thumbnail-1

1.25G, 1000BASE-ZX GBIC Transceiver, 1550nm, 80km, Optic Module/Transceiver photo-1

US$ 1 - 20 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DONGWE

Model Number:

DW-D1255-80CG

Contact Supplier Request Quote Chat Now

Shenzhen Dongwe Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DONGWE

Model Number DW-D1255-80CG

DW-D1255-80CG 1.25G, 1000BASE-ZX GBIC Transceiver, 1550nm, 80km, Optic Module/Transceiver

Product Description

Features

¨ Dual data-rate of 1.25Gbps/1.0625Gbps operation

¨ 1550nm DFB laser and PIN photodetector for 80km transmission

¨ Duplex SC optical interface

¨ Standard serial ID information compatible with SFF-8053

¨ +3.3V/5Vsingle power supply

¨ RoHS Compliant

¨ Operating case temperature: 0 to +70℃

Applications

¨ Switch to Switch interface

¨ Switched backplane applications

¨ Router/Server interface

¨ Other optical transmission systems

Product description

The GBIC transceiver is high performance, cost effective module supporting dual data-rate of 1.25Gbps/1.0625Gbps and from 40km transmission distance with SMF.

The transceiver consists of two sections: The transmitter section incorporates a DFB laser. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All odules satisfy class I laser safety requirements.

The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.

The standard serial ID information Compatible with GBIC MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the two-wire serial CMOS EEPROM protocol. For further information, please refer to SFF-8053.

Ordering Information

Part Number	Product Description
DW-T1000G	Copper GBIC, 1.25G, RJ45, 0°C~+70°C
DW-D1285-05CG	GBIC, 1.25G, 850nm, 550m, 0°C~+70°C
DW-D1231-20CG	GBIC, 1.25G, 850nm, 550m, 0°C~+70°C
DW-D1231-40CG	GBIC, 1.25G, 850nm, 550m, 0°C~+70°C
DW-D1255-80CG	GBIC, 1.25G, 850nm, 550m, 0°C~+70°C

BIDI GBIC
DW-S1235-03CG	BIDI GBIC, 1.25G, 1310/1550nm, 3km, 0°C~+70°C
DW-S1253-03CG	BIDI GBIC, 1.25G, 1550/1310nm, 3km, 0°C~+70°C

DW-S1234-20CG	BIDI GBIC, 1.25G, 1310/1490nm, 20km, 0°C~+70°C
DW-S1243-20CG	BIDI GBIC, 1.25G, 1490/1310nm, 20km, 0°C~+70°C
DW-S1235-20CG	BIDI GBIC, 1.25G, 1310/1550nm, 20km, 0°C~+70°C
DW-S1253-20CG	BIDI GBIC, 1.25G, 1550/1310nm, 20km, 0°C~+70°C

DW-S1234-40CG	BIDI GBIC, 1.25G, 1310/1490nm, 40km, 0°C~+70°C
DW-S1243-40CG	BIDI GBIC, 1.25G, 1490/1310nm, 40km, 0°C~+70°C
DW-S1235-40CG	BIDI GBIC, 1.25G, 1310/1550nm, 40km, 0°C~+70°C
DW-S1253-40CG	BIDI GBIC, 1.25G, 1550/1310nm, 40km, 0°C~+70°C

CWDM GBIC
DW-D12CXX-40CG (XX=27~61)	CWDM GBIC, 1.25G, 1270~1610nm, 40km, 0°C~+70°C

DW-D12CXX-80CG (XX=27~61)	CWDM GBIC, 1.25G, 1270~1610nm, 80km, 0°C~+70°C

Product Serial

GBI

SFP

SFP+

XFP

Xenpak

QSFP

SFP GPON ONU/OLT

10G Converter

CSFP	Direct Attach Cable

Production Show

Compatible Brands

Package and shipment

Why is DONGWE

1.Competitive price

2. 3 years warranty

3. Reply your inquiry within 2 hours

4. Have large quantity modules in stock, delivery fast

5. Label can be customized, also ODM and OEM service offered

6. 100% new material and good quality

7. Can be compatible with a lot of brands like Cisco, HP, H3C, Extreme, Juniper etc.

8. Capacity: 10,000pcs/day
